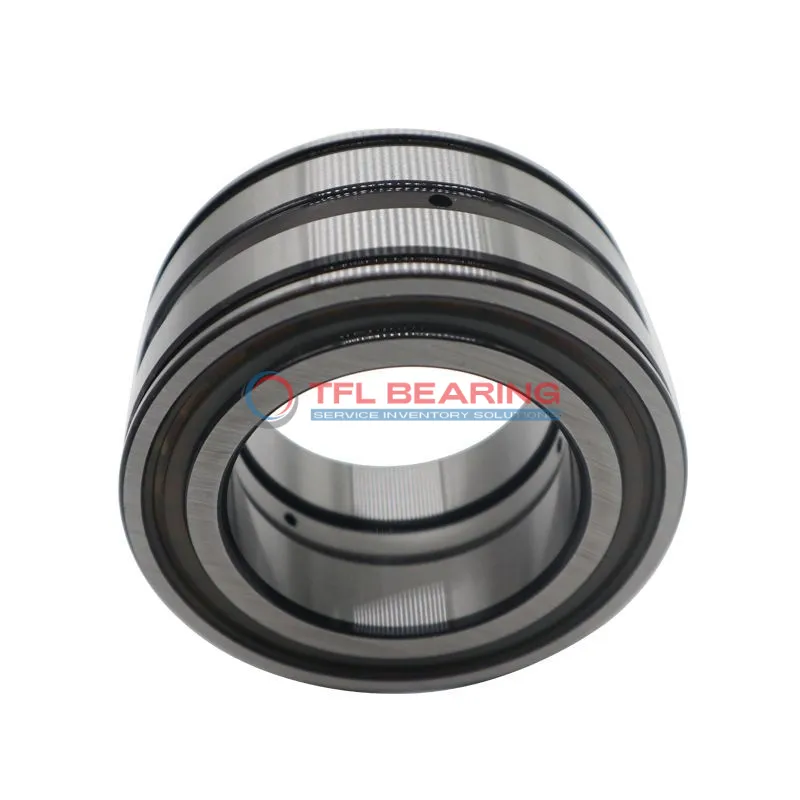

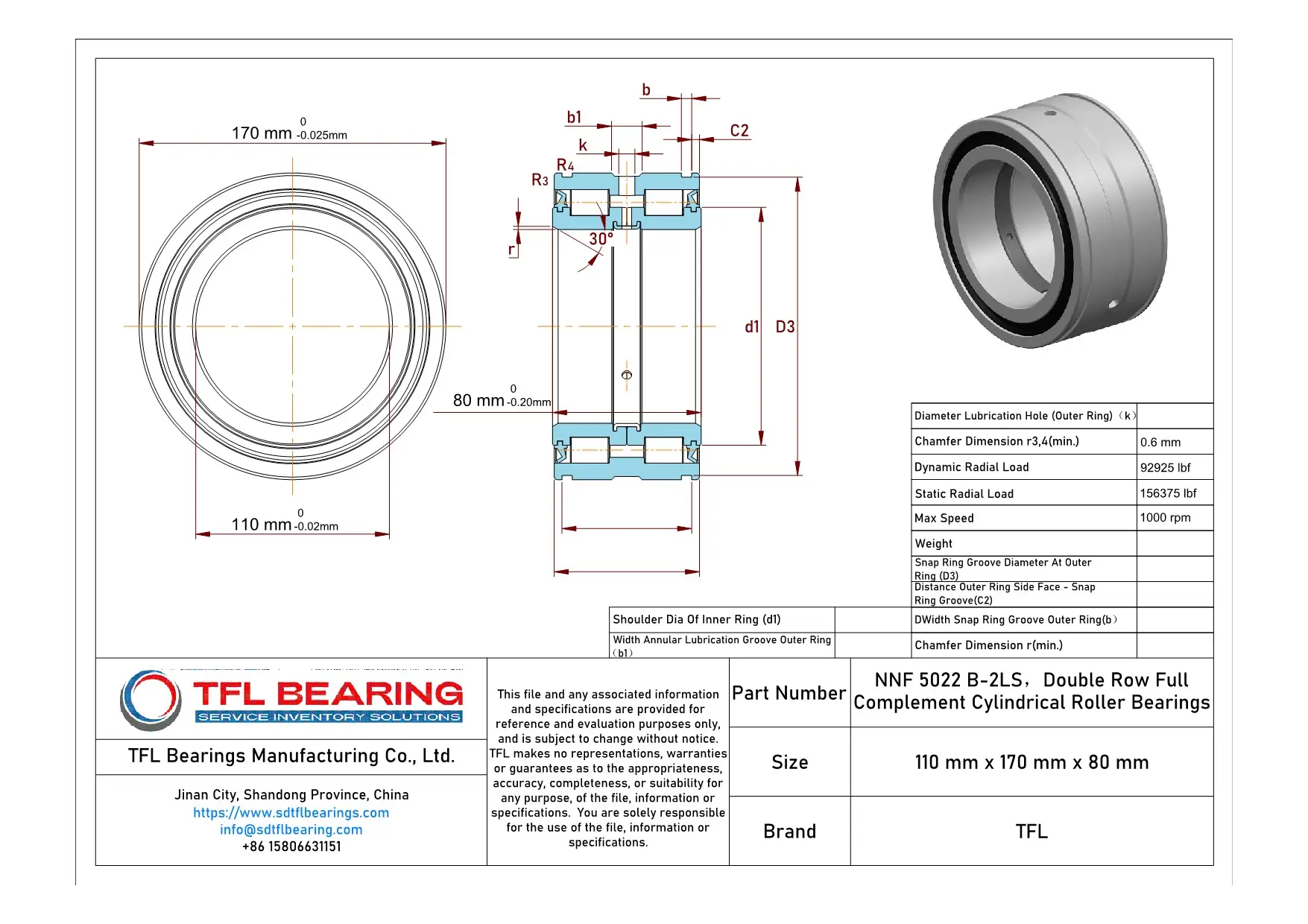

The NNF 5022 B-2LS is a double-row full complement cylindrical roller bearing with a 110mm bore and 170mm outer diameter, crafted from durable 52100 chrome steel. It handles combined loads up to 92925 lbf and runs smoothly at speeds up to 1000 RPM.
Its sealed design keeps contaminants out, while the full complement roller arrangement boosts load capacity without a cage. The bearing works in temperatures from -30°C to 110°C and accepts grease or oil lubrication.
This model is interchangeable with SKF bearings, offering a reliable option for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where high radial loads are common.
Compliant with RoHS and REACH standards, it’s built for demanding environments. The compact 80mm width makes it easy to fit in tight spaces while maintaining robust performance.
"*" indicates required fields
How Does NNF 5022 B-2LS Bearing Handle Combined Loads?
NNF 5022 B-2LS Bearing is built with double-row full complement cylindrical rollers, offering high load capacity for combined radial and axial loads.
Its dynamic radial load capacity reaches 92925 lbf, ensuring robust performance in demanding conditions.
The sealed design protects against contaminants, extending service life even in harsh environments.
Made from 52100 chrome steel, it maintains durability and reliability across a temperature range of -30° to 110°C.
Industrial Uses of NNF 5022 B-2LS Bearing
NNF 5022 B-2LS Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its double-row design handles both radial and axial loads efficiently. The sealed construction helps keep contaminants out, extending the bearing’s lifespan in harsh environments.
What Makes NNF 5022 B-2LS Bearing a Preferred Choice?
In automotive applications, NNF 5022 B-2LS Bearing is often found in wheel hubs and drivetrain components, thanks to its high load capacity and durability. The full complement roller design ensures smooth operation even under heavy stress.
Built for Heavy-Duty Use: NNF 5022 B-2LS Bearing
For automation equipment, NNF 5022 B-2LS Bearing provides reliable performance in robotic arms and precision assembly lines. Its chrome steel construction and grease lubrication make it suitable for continuous operation.
Medical vs Industrial: Where NNF 5022 B-2LS Bearing Excels
While NNF 5022 B-2LS Bearing is ideal for industrial presses and mining equipment, its precision also benefits medical imaging devices requiring stable rotation. The sealed design ensures minimal maintenance in critical applications.
