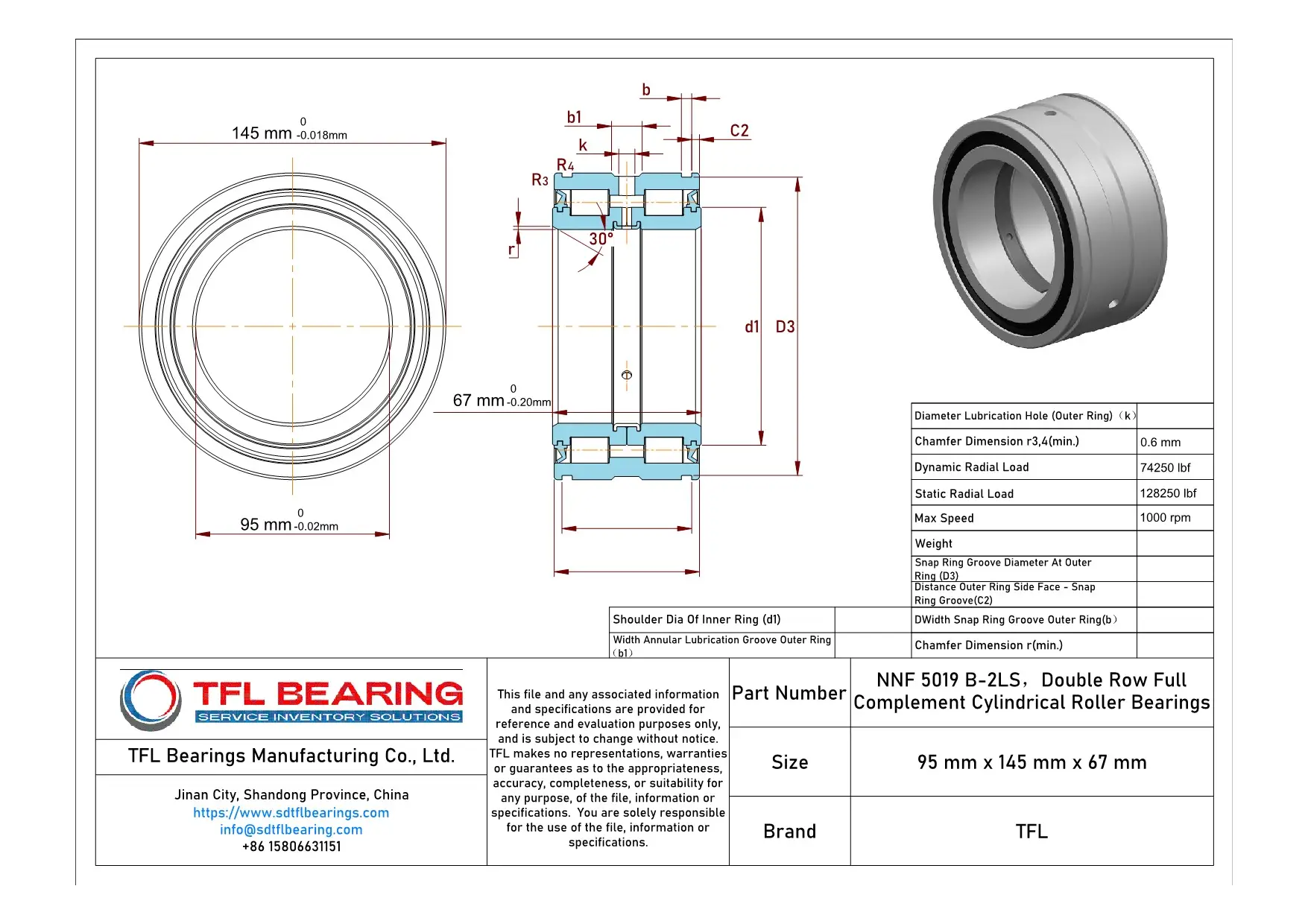

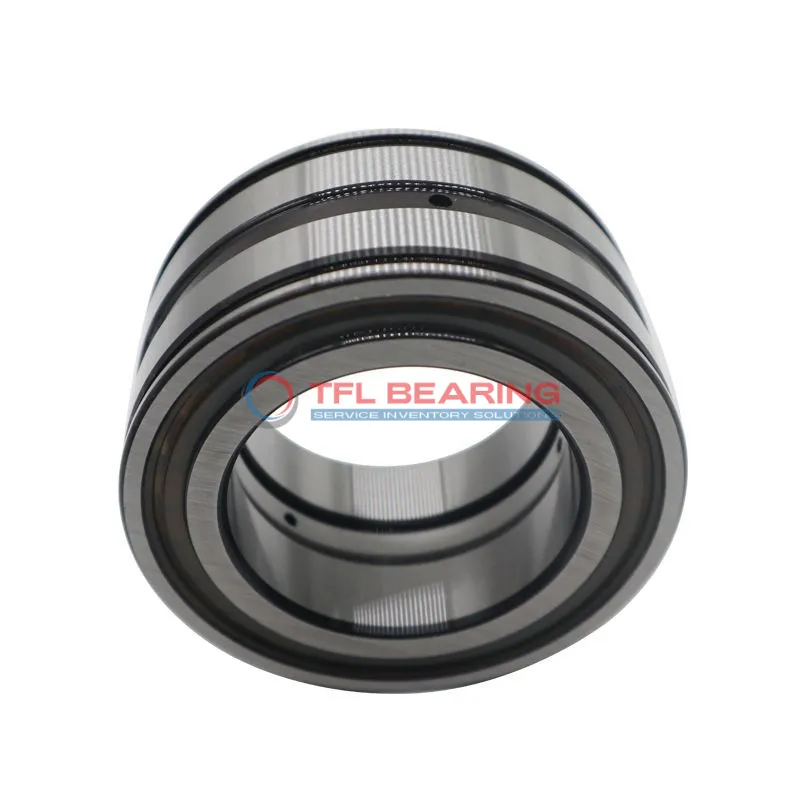

The NNF 5019 B-2LS is a double row full complement cylindrical roller bearing with a 95mm bore and 145mm outer diameter, crafted from durable 52100 chrome steel. Its sealed design keeps contaminants out while handling combined loads up to 74250 lbf.
This bearing operates smoothly at speeds up to 1000 RPM and works in temperatures from -30°C to 110°C. The full complement roller design boosts load capacity without a cage, making it sturdy for heavy-duty use.
Ideal for industrial machinery like gearboxes or conveyors, it’s interchangeable with SKF models for easy replacement. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding applications.
Grease or oil lubrication options provide flexibility, while the 67mm width ensures a compact fit in tight spaces. Its robust construction suits environments where high radial loads are common.
"*" indicates required fields
Performance Features of NNF 5019 B-2LS Bearing
NNF 5019 B-2LS Bearing is constructed with double-row full complement rollers, providing high load capacity and stability.
Its 52100 chrome steel rings and rollers offer excellent resistance to wear, ensuring long service life.
The sealed design of NNF 5019 B-2LS Bearing protects against contaminants, making it suitable for harsh environments.
With a dynamic radial load capacity of 74,250 lbf, it handles heavy-duty applications with ease.
NNF 5019 B-2LS Bearing operates smoothly within a temperature range of -30° to 110 °C.
Its full complement roller design eliminates the need for a cage, maximising load distribution.
The grease or oil lubrication options of NNF 5019 B-2LS Bearing ensure optimal performance in various conditions.
Its precision engineering allows for reliable operation at speeds up to 1,000 rpm.
Industrial Uses of NNF 5019 B-2LS Bearing
NNF 5019 B-2LS Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its double-row design handles high radial loads efficiently. The sealed construction helps keep contaminants out, extending service life in dusty environments.
In automotive applications, NNF 5019 B-2LS Bearing supports components such as wheel hubs and transmissions, offering reliable performance under combined loads. Its full complement roller design ensures smooth operation even at moderate speeds.
What Makes NNF 5019 B-2LS Bearing a Preferred Choice?
NNF 5019 B-2LS Bearing is ideal for automation equipment like robotic arms, where its precision and load capacity are crucial. The chrome steel construction provides durability, while the sealed design reduces maintenance needs.
For wind turbines, NNF 5019 B-2LS Bearing’s ability to handle both radial and axial loads makes it a dependable choice. Its grease or oil lubrication options adapt well to varying operational conditions.
Built for Heavy-Duty Use: NNF 5019 B-2LS Bearing
NNF 5019 B-2LS Bearing excels in construction equipment like cranes, where its high static radial load capacity ensures stability. The absence of a cage allows for more rollers, enhancing load distribution.
In mining machinery, NNF 5019 B-2LS Bearing’s robust design withstands harsh conditions, while the sealed variant protects against debris. Its temperature range suits both hot and cold environments.
Automotive vs Aerospace: Applications of NNF 5019 B-2LS Bearing
In automotive systems, NNF 5019 B-2LS Bearing is often found in drivetrains, where its combined load capacity supports smooth power transmission. The metric sizing ensures compatibility with global vehicle designs.
For aerospace ground equipment, NNF 5019 B-2LS Bearing’s reliability and sealed construction make it suitable for maintenance carts and loading systems. Its chrome steel rollers ensure long-term performance.
