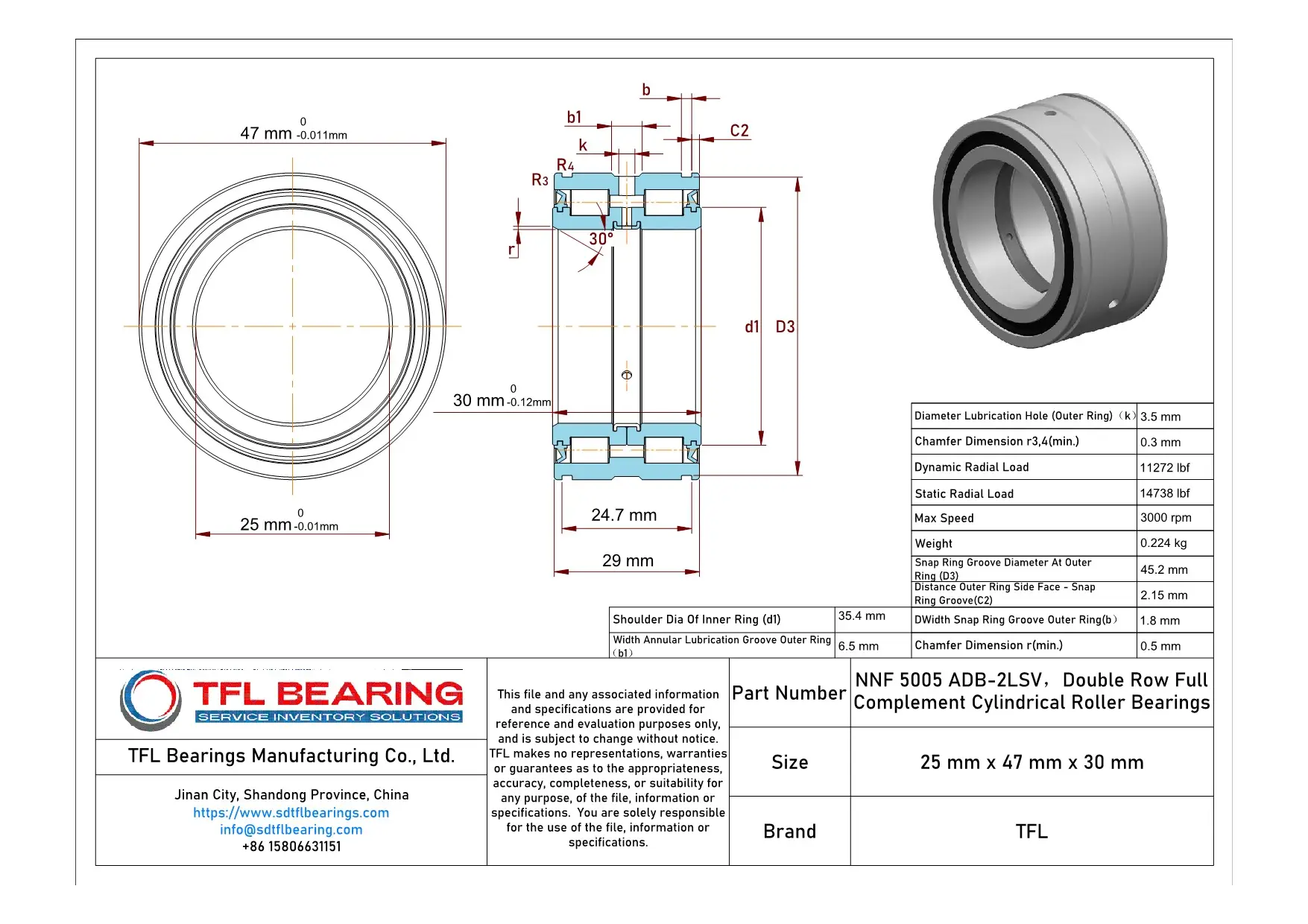

The NNF 5005 ADB-2LSV is a double-row cylindrical roller bearing with a 25mm bore and 47mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 11272 lbf and runs smoothly at speeds up to 3000 RPM.
Its full-complement design (no cage) maximises load capacity, while the sealed construction keeps contaminants out. The bearing operates well in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like gearboxes or industrial machinery where high radial loads are present.
Weighing 0.224kg, it’s robust yet compact. Compliant with RoHS and REACH standards, it’s safe for various industrial uses. The snap ring design ensures secure fitting in housings.
Lubrication is easy with grease or oil, thanks to the built-in grooves and holes. The precise tolerances ensure reliable performance in demanding conditions.
"*" indicates required fields
Performance Features of NNF 5005 ADB-2LSV Bearing
NNF 5005 ADB-2LSV Bearing is built with double-row full complement cylindrical rollers, offering high load capacity and stability.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.
The sealed design of NNF 5005 ADB-2LSV Bearing protects against contaminants, making it suitable for harsh environments.
With a dynamic radial load capacity of 11272 lbf, it handles heavy loads with ease.
NNF 5005 ADB-2LSV Bearing operates smoothly at speeds up to 3000 rpm, balancing performance and longevity.
Its grease or oil lubrication options provide flexibility for different operational needs.
The precise tolerances and snap ring design of NNF 5005 ADB-2LSV Bearing ensure secure installation and reliable performance.
It is ideal for applications requiring combined load handling and robust construction.
Industrial Uses of NNF 5005 ADB-2LSV Bearing
NNF 5005 ADB-2LSV Bearing is commonly used in heavy machinery like conveyor systems and industrial gearboxes, where its double-row design handles combined loads efficiently. The sealed construction keeps contaminants out, extending service life in dusty environments.
Where Is NNF 5005 ADB-2LSV Bearing Used?
In automotive applications, NNF 5005 ADB-2LSV Bearing supports wheel hubs and transmissions, thanks to its high radial load capacity. The grease lubrication ensures smooth operation even under constant stress.
Built for Heavy-Duty Use: NNF 5005 ADB-2LSV Bearing
This bearing excels in construction equipment, such as excavators and cranes, where its full-complement rollers distribute loads evenly. The chrome steel construction resists wear, making it reliable for long-term use.
Automotive vs Aerospace: Applications of NNF 5005 ADB-2LSV Bearing
While NNF 5005 ADB-2LSV Bearing is popular in car transmissions, its precision also suits aerospace components like landing gear systems. The metric sizing ensures compatibility with international standards.
Perfect Fit for Automation: NNF 5005 ADB-2LSV Bearing
In robotic arms and automated assembly lines, NNF 5005 ADB-2LSV Bearing provides stable rotation under varying loads. The sealed design reduces maintenance needs, ideal for high-use industrial settings.
