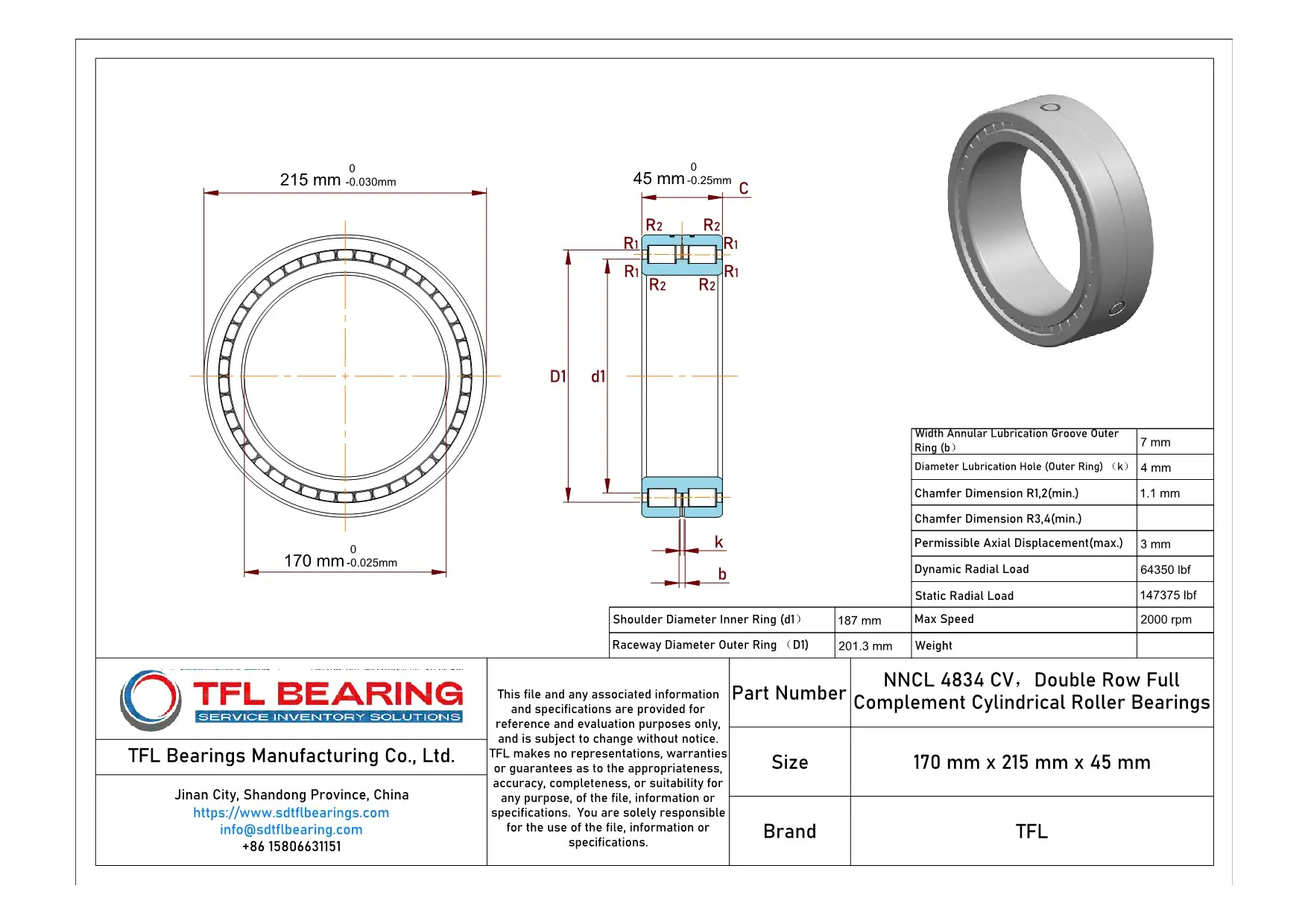

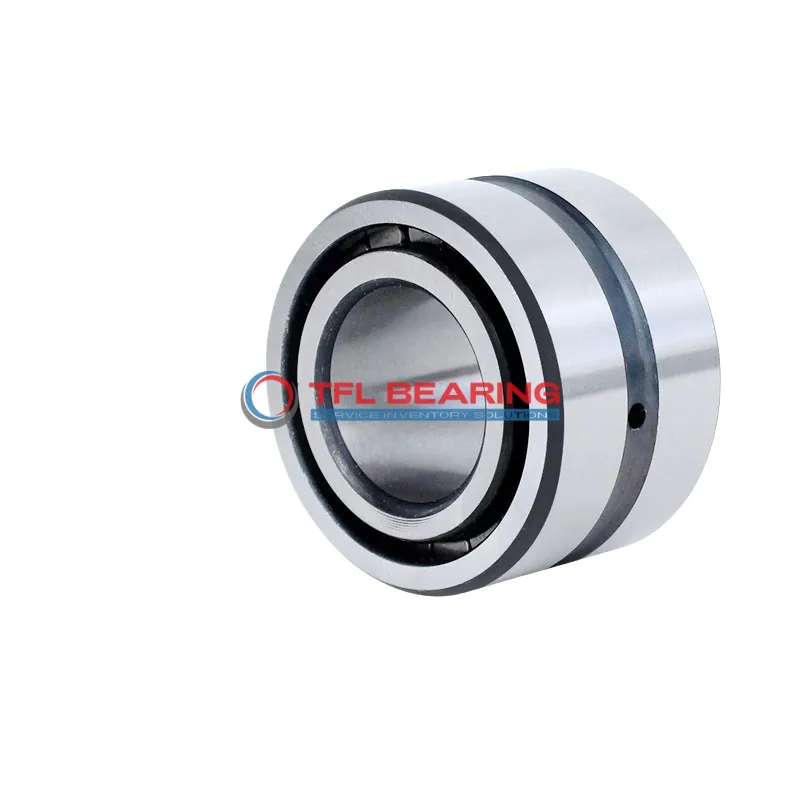

The NNCL 4834 CV is a double-row cylindrical roller bearing with a 170mm bore and 215mm outer diameter, built for combined loads. Made from durable 52100 chrome steel, it handles radial loads up to 64350 lbf and speeds of 2000 RPM.
Its full-complement design (no cage) maximises roller count for higher load capacity, while the open seal allows flexible lubrication with grease or oil. The bearing operates smoothly in temperatures from -30°C to 110°C.
This model suits heavy-duty applications like industrial gearboxes or large machinery where space and load demands are critical. Its 45mm width offers a compact yet robust solution. Compliant with RoHS and REACH standards for safe use.
The inner ring includes a 187mm shoulder diameter for secure fitting, and axial displacement up to 3mm accommodates minor misalignments. Interchangeable with SKF bearings for easy replacement.
"*" indicates required fields
Performance Features of NNCL 4834 CV Bearing
NNCL 4834 CV Bearing is built with double-row full complement cylindrical rollers, offering high load capacity and stability.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.
The open design allows for easy lubrication with grease or oil, maintaining smooth operation.
With a dynamic radial load capacity of 64,350 lbf, it handles heavy loads efficiently.
NNCL 4834 CV Bearing operates within a temperature range of -30° to 110°C, suitable for various environments.
Its full complement design eliminates the need for a cage, maximizing roller count and load distribution.
Industrial Uses of NNCL 4834 CV Bearing
NNCL 4834 CV Bearing is commonly used in heavy machinery like industrial gearboxes and rolling mills, where its double-row design handles high radial loads efficiently. The full complement of rollers ensures maximum load capacity without a cage, making it suitable for slow-speed, high-load applications.
Where Is NNCL 4834 CV Bearing Used?
In wind turbine systems, NNCL 4834 CV Bearing supports the main shaft, providing stability under varying wind conditions. Its chrome steel construction and grease lubrication make it reliable in harsh outdoor environments.
Built for Heavy-Duty Use: NNCL 4834 CV Bearing
This bearing excels in mining equipment, such as crushers and conveyors, where its robust design withstands extreme loads and vibrations. The open seal type allows for easy lubrication, extending service life in demanding conditions.
Automotive vs Aerospace: Applications of NNCL 4834 CV Bearing
In automotive applications, NNCL 4834 CV Bearing is found in large truck transmissions, handling combined loads with precision. For aerospace, its high static radial load capacity makes it suitable for landing gear components, though speed limitations are a consideration.
Practical Applications of NNCL 4834 CV Bearing
NNCL 4834 CV Bearing is ideal for paper manufacturing machinery, where its durability and load capacity ensure smooth operation. The metric dimensions and DIN compatibility simplify integration into European-designed equipment.
