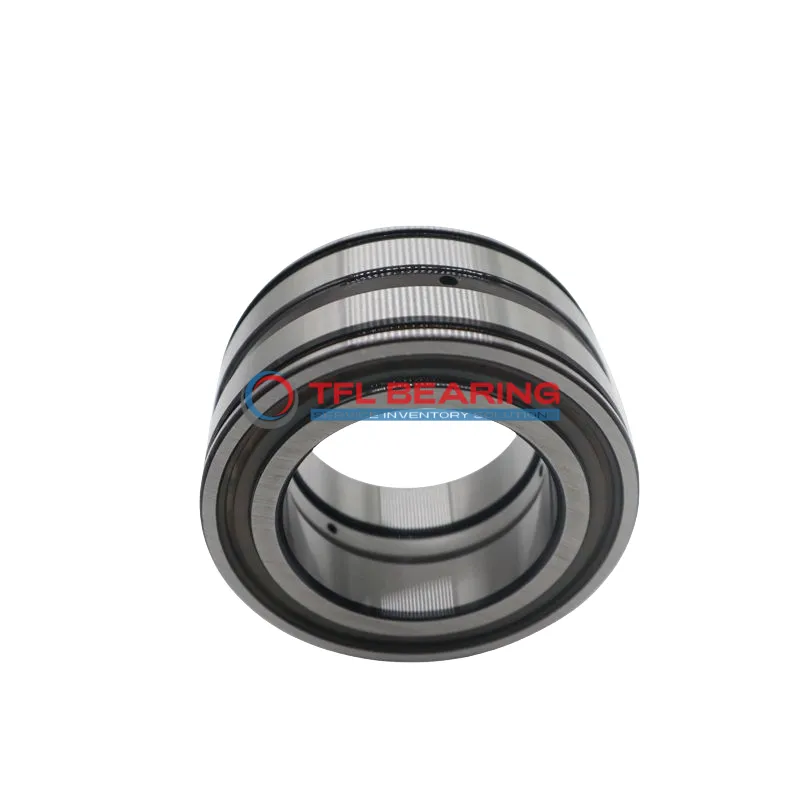

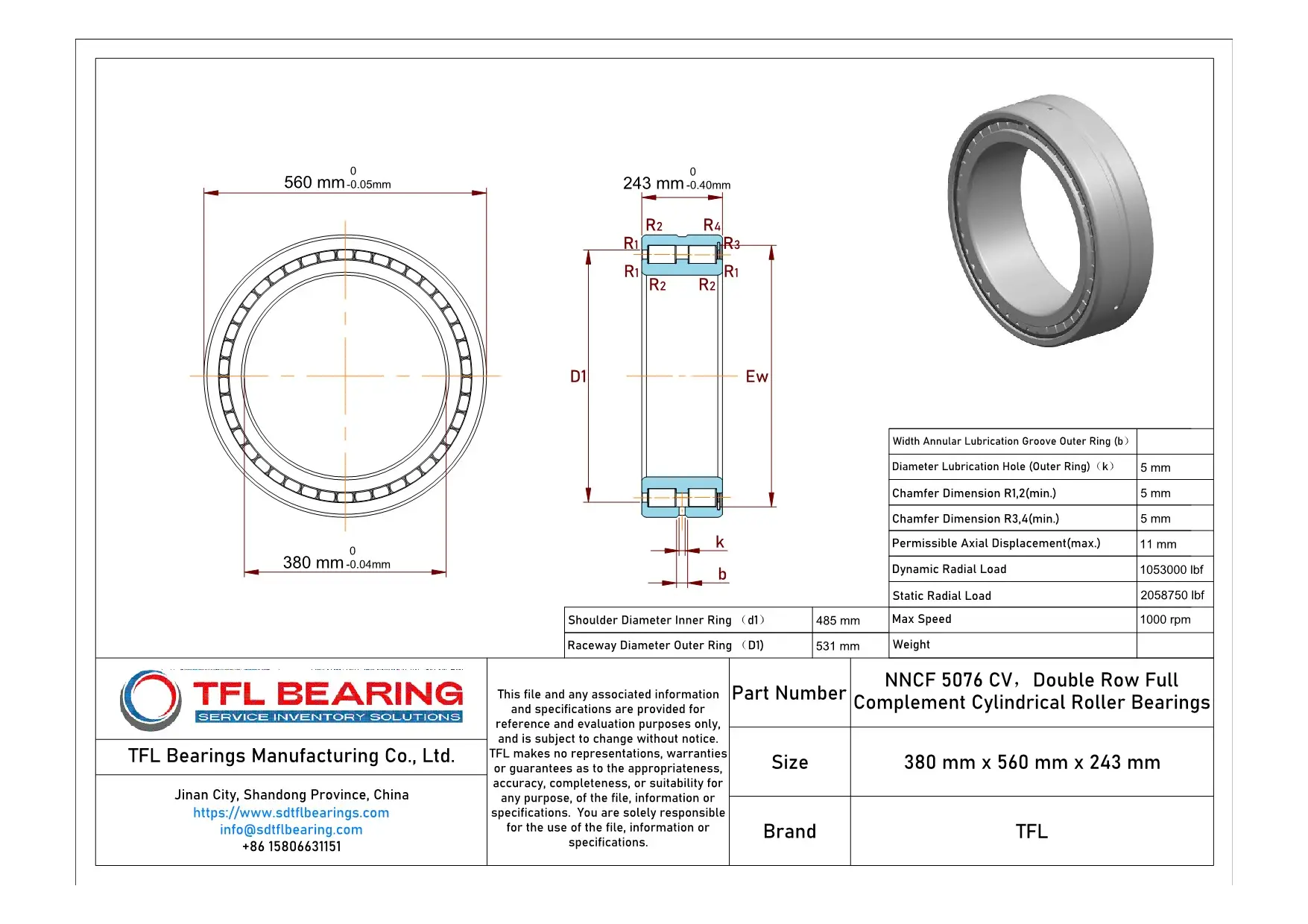

The NNCF 5076 CV is a robust double-row cylindrical roller bearing with a 380mm bore and 560mm outer diameter, built to handle heavy combined loads. Made from durable 52100 chrome steel, it supports dynamic radial loads up to 1,053,000 lbf and operates smoothly at speeds up to 1000 RPM.
Its full complement design (no cage) maximises roller count for higher load capacity, while the open seal allows easy lubrication with grease or oil. The bearing can handle axial displacement up to 11mm, adding flexibility in demanding setups.
Suitable for heavy machinery like industrial gearboxes or large presses, it performs reliably in temperatures from -30°C to 110°C. Interchangeable with SKF models, it simplifies replacements. Compliant with RoHS and REACH standards for safe industrial use.
With chamfered edges (5mm) and a 5mm lubrication hole, maintenance is straightforward. Its sturdy construction ensures longevity even under intense radial and axial stresses. Ideal for applications where space and load capacity are critical.
"*" indicates required fields
Performance Features of NNCF 5076 CV Bearing
NNCF 5076 CV Bearing is constructed with double-row full complement cylindrical rollers, providing high radial load capacity.
Its dynamic radial load reaches 1,053,000 lbf, making it suitable for heavy-duty industrial applications.
The chrome steel rings and rollers ensure durability and resistance to wear under demanding conditions.
With a maximum speed of 1,000 rpm, it balances performance and reliability in various settings.
NNCF 5076 CV Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.
The absence of a cage in NNCF 5076 CV Bearing maximises roller count, enhancing load distribution.
This design also permits axial displacement up to 11 mm, accommodating slight misalignments.
Precision tolerances on bore and outer diameters ensure proper fit and smooth operation.
NNCF 5076 CV Bearing meets RoHS and REACH compliance standards for environmental safety.
Industrial Uses of NNCF 5076 CV Bearing
NNCF 5076 CV Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its double-row design handles high radial loads efficiently. The full complement of rollers ensures maximum load capacity, making it suitable for demanding environments.
In wind turbine applications, NNCF 5076 CV Bearing provides reliable performance in the main shaft, where its chrome steel construction withstands constant stress. The open seal design allows for easy lubrication, extending service life in harsh conditions.
For mining equipment, NNCF 5076 CV Bearing’s robust build supports crushers and conveyors, handling combined loads with ease. Its metric dimensions ensure compatibility with a wide range of industrial machinery across different regions.
Automotive vs Aerospace: Applications of NNCF 5076 CV Bearing
In automotive manufacturing, NNCF 5076 CV Bearing is found in large presses and stamping machines, where precision and durability are key. Its high static load capacity makes it ideal for heavy-duty forming processes.
Aerospace applications benefit from NNCF 5076 CV Bearing’s ability to handle extreme loads in landing gear systems. The grease or oil lubrication options provide flexibility for different operational requirements.
