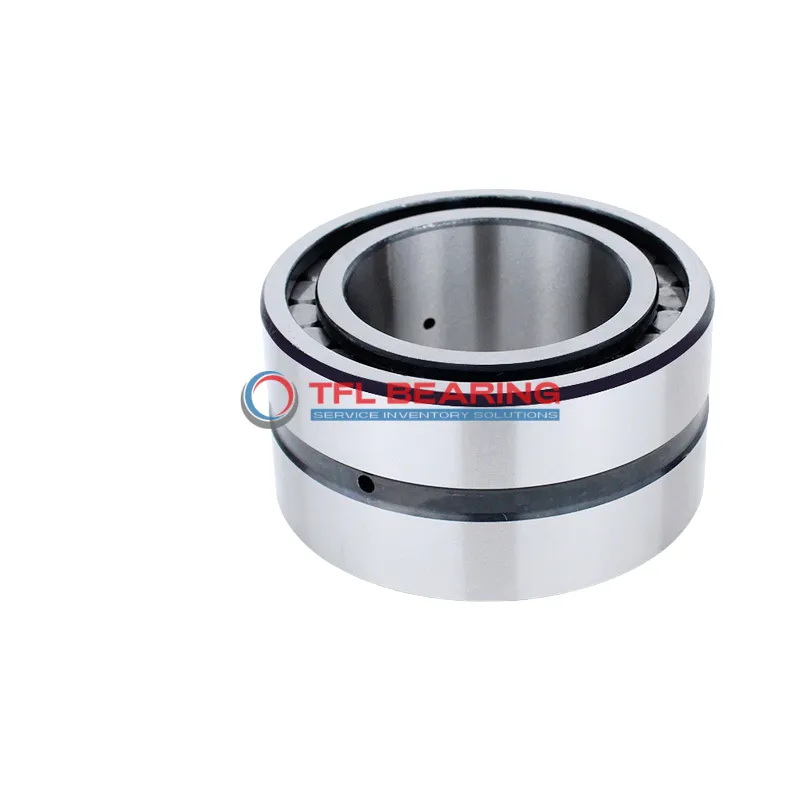

The NNCF 5060 CV is a double-row cylindrical roller bearing with a 300mm bore and 460mm outer diameter, built for heavy combined loads. Made from durable 52100 chrome steel, it can handle dynamic radial loads up to 792,000 lbf and speeds of 1000 RPM.
Its full complement design (no cage) maximises roller count for higher load capacity, while the open seal allows easy lubrication with grease or oil. The bearing operates smoothly in temperatures from -30°C to 110°C.
With a width of 218mm, it’s suited for robust applications like industrial gearboxes or large machinery. The design permits axial displacement up to 9mm, offering flexibility in mounting.
Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for straightforward replacements. Ideal for heavy-duty settings where reliability and high load capacity are key.
"*" indicates required fields
Performance Features of NNCF 5060 CV Bearing
NNCF 5060 CV Bearing is constructed with double-row full complement cylindrical rollers, providing high radial load capacity.
Its dynamic radial load rating reaches 792,000 lbf, making it suitable for heavy-duty applications.
The chrome steel rings and rollers ensure durability and resistance to wear under demanding conditions.
With a maximum speed of 1,000 rpm, it balances performance and reliability in industrial settings.
How Does NNCF 5060 CV Bearing Resist Wear?
NNCF 5060 CV Bearing uses 52100 chrome steel for both rings and rollers, enhancing its wear resistance.
The full complement roller design maximises load distribution, reducing stress on individual components.
Its static radial load capacity of 1,473,750 lbf ensures stability in high-pressure environments.
The open seal design allows for easy lubrication maintenance, further prolonging service life.
Engineered for Precision: NNCF 5060 CV Bearing

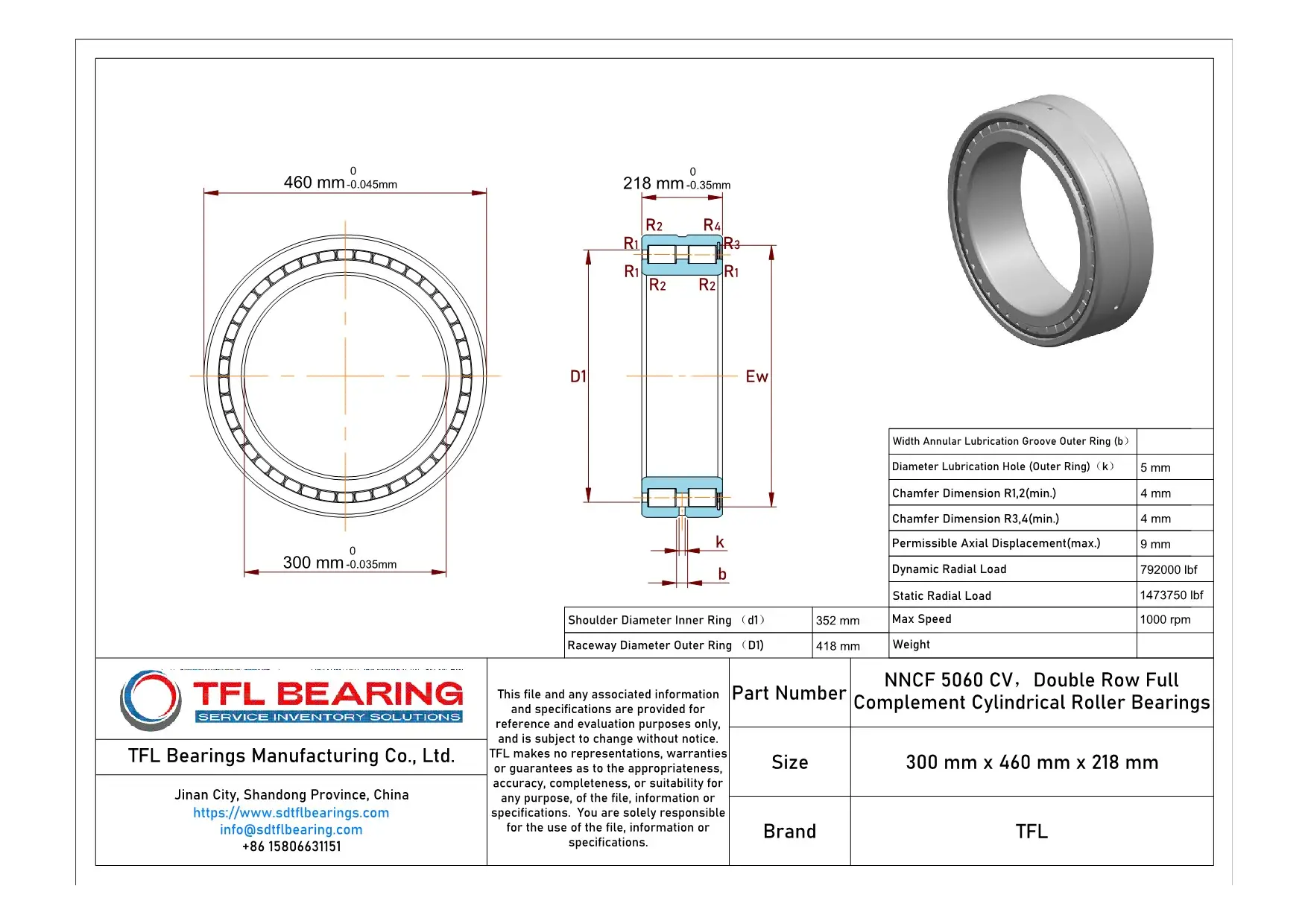

NNCF 5060 CV Bearing features precise dimensional tolerances, with bore diameter accuracy of -0.035mm to 0.
The double-row construction provides excellent axial displacement capacity up to 9mm.
Its 52100 chrome steel composition maintains performance across a temperature range of -30° to 110°C.
The absence of a cage allows for maximum roller complement, increasing load-bearing capacity.
Steel vs Ceramic Bearings: Strengths of NNCF 5060 CV Bearing
NNCF 5060 CV Bearing utilises chrome steel construction for superior strength in heavy-load applications.
The material choice provides better impact resistance compared to ceramic alternatives in industrial settings.
Its full complement design offers higher load capacity than caged bearings of similar dimensions.
The chrome steel composition ensures reliable performance across a wide temperature range.
Industrial Uses of NNCF 5060 CV Bearing
NNCF 5060 CV Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its double-row design handles high radial loads efficiently. The full complement of rollers ensures maximum load capacity, making it suitable for demanding environments.
In wind turbine applications, NNCF 5060 CV Bearing supports the main shaft, providing reliable performance under varying wind conditions. Its chrome steel construction offers durability, while the open design allows for easy lubrication and maintenance.
For construction equipment like cranes and excavators, NNCF 5060 CV Bearing’s combined load capability ensures smooth operation during heavy lifting. The metric dimensions make it compatible with a wide range of European and Asian machinery standards.
Where Is NNCF 5060 CV Bearing Used?
NNCF 5060 CV Bearing finds its place in paper manufacturing machines, where its high dynamic radial load capacity ensures consistent performance. The absence of a cage allows for more rollers, enhancing load distribution.
In mining equipment, NNCF 5060 CV Bearing withstands harsh conditions, thanks to its robust chrome steel construction. The open seal type facilitates easy inspection and relubrication, extending the bearing’s service life.
Built for Heavy-Duty Use: NNCF 5060 CV Bearing
NNCF 5060 CV Bearing is ideal for steel production lines, where its ability to handle combined loads ensures smooth operation. The full complement design maximizes load capacity, reducing downtime in high-stress applications.
In marine propulsion systems, NNCF 5060 CV Bearing’s grease or oil lubrication options provide flexibility for different operating conditions. The temperature range of -30° to 110°C ensures reliability in various climates.
Automotive vs Aerospace: Applications of NNCF 5060 CV Bearing
In automotive testing rigs, NNCF 5060 CV Bearing’s high static radial load capacity ensures accurate performance measurements. Its durability makes it a preferred choice for long-term testing scenarios.
For aerospace ground support equipment, NNCF 5060 CV Bearing’s precision and reliability are crucial. The open design allows for easy maintenance, ensuring consistent performance in critical applications.
