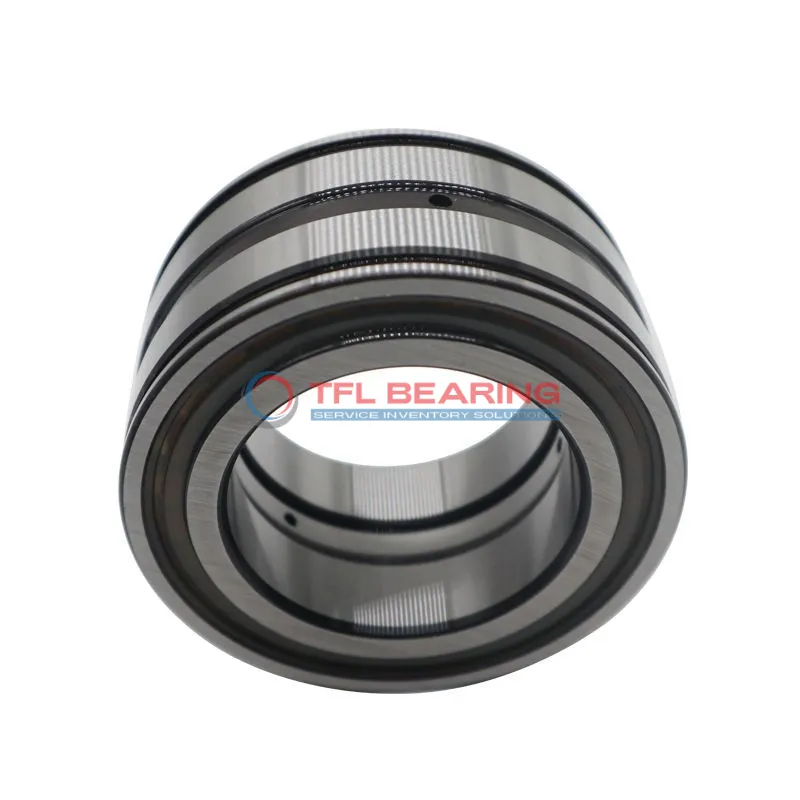

The NNCF 5022 CV is a double-row cylindrical roller bearing with a 110mm bore and 170mm outer diameter, built for combined loads. Made from sturdy chrome steel, it handles radial loads up to 115200 lbf and spins smoothly at 2000 RPM.
Its full complement design (no cage) maximises roller count for higher load capacity, while the open seal allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.
This model suits heavy-duty applications like industrial gearboxes or large machinery where space and load capacity matter. Weighing 6.32kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

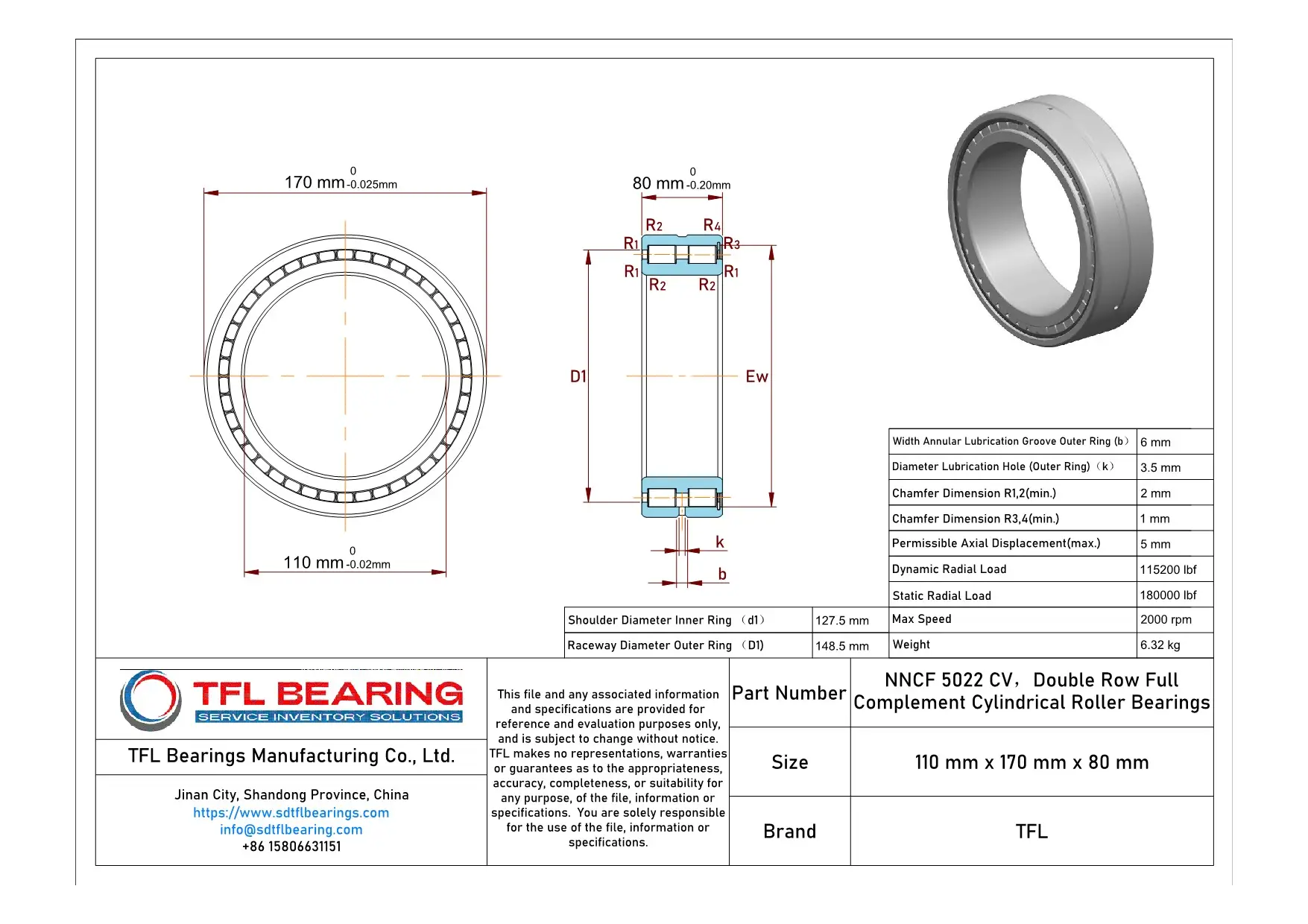

The 80mm width and precise tolerances ensure reliable performance under demanding conditions. Its interchangeable design with SKF bearings makes replacements straightforward.
"*" indicates required fields
Performance Features of NNCF 5022 CV Bearing
NNCF 5022 CV Bearing is built with double-row full complement cylindrical rollers, offering high radial load capacity.
Its dynamic radial load rating reaches 115200 lbf, making it suitable for heavy-duty applications.
The chrome steel construction ensures durability and resistance to wear under demanding conditions.
With a maximum speed of 2000 rpm, it balances performance and longevity.
NNCF 5022 CV Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.
The full complement roller arrangement maximizes load distribution, enhancing reliability.
Precision tolerances ensure smooth operation and extended service life.
Industrial Uses of NNCF 5022 CV Bearing
NNCF 5022 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its double-row design handles high radial loads efficiently. The full complement of rollers ensures maximum load capacity, making it suitable for demanding environments.
Where Is NNCF 5022 CV Bearing Used?
In automotive applications, NNCF 5022 CV Bearing supports components like wheel hubs and drivetrains, providing stability under combined loads. Its chrome steel construction offers durability, even in high-speed scenarios.
Built for Heavy-Duty Use: NNCF 5022 CV Bearing
This bearing excels in construction equipment, such as cranes and excavators, where its open design allows for easy lubrication. The absence of a cage means more rollers can fit, enhancing load distribution.
Automotive vs Aerospace: Applications of NNCF 5022 CV Bearing
While NNCF 5022 CV Bearing is popular in automotive drivetrains, it also finds use in aerospace landing gear systems. Its ability to handle both radial and axial loads makes it versatile across industries.
Perfect Fit for Automation: NNCF 5022 CV Bearing
In robotic arms and automated production lines, NNCF 5022 CV Bearing ensures smooth movement under heavy loads. The grease or oil lubrication options provide flexibility for different operating conditions.
