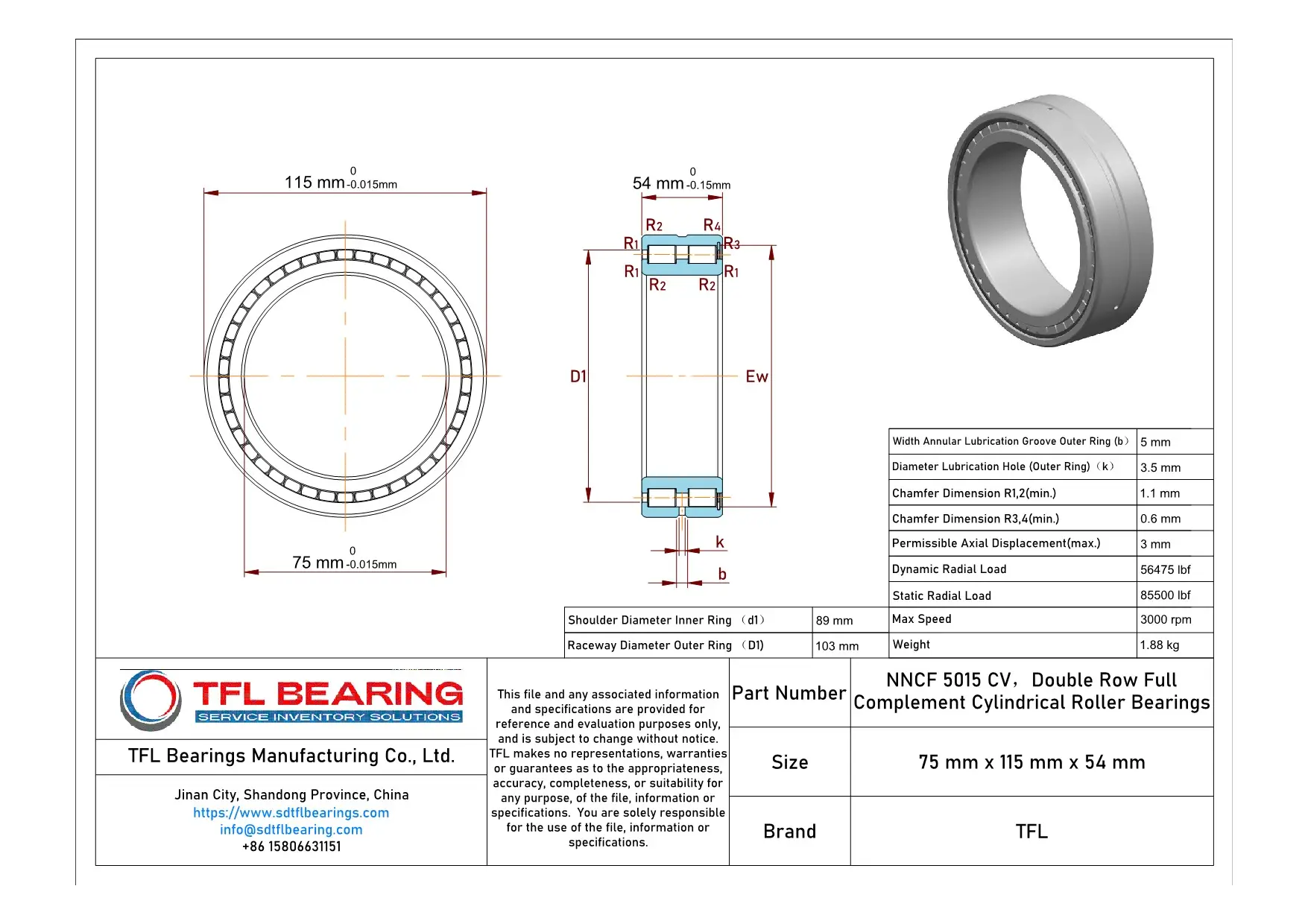

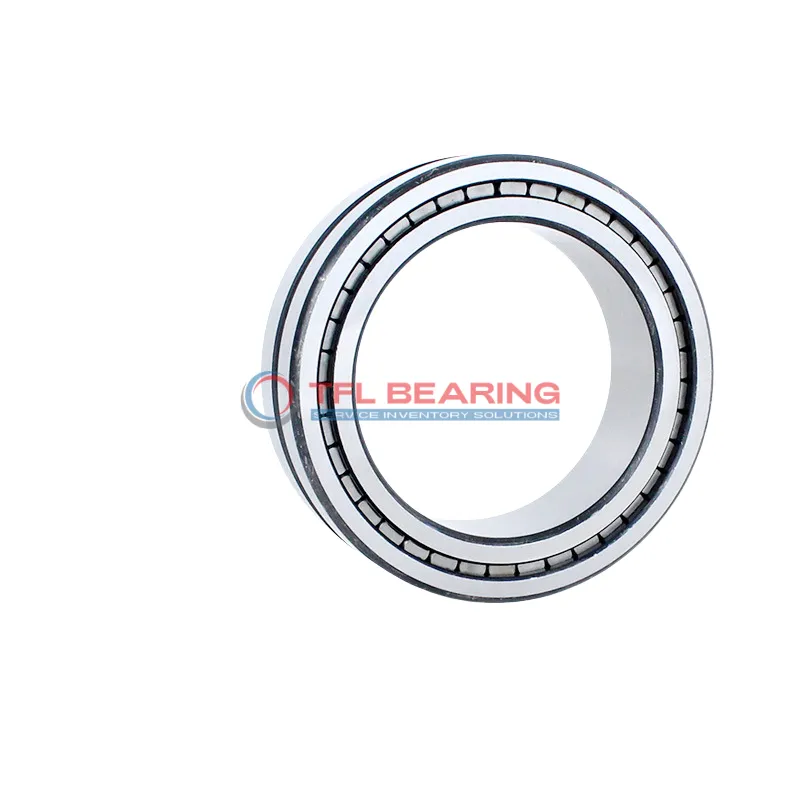

The NNCF 5015 CV is a double-row cylindrical roller bearing with a 75mm bore and 115mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 56475 lbf and runs smoothly at speeds up to 3000 RPM.
Its full-complement design (no cage) maximises load capacity, while the open seal allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery with high radial loads.
Weighing 1.88kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of NNCF 5015 CV Bearing
NNCF 5015 CV Bearing is built with double row full complement cylindrical rollers, offering high radial load capacity.
Its dynamic radial load reaches 56,475 lbf, making it suitable for heavy-duty applications.
The chrome steel construction ensures durability and resistance to wear under demanding conditions.
With no cage design, it maximises roller count for enhanced load distribution.
NNCF 5015 CV Bearing operates smoothly at speeds up to 3,000 rpm, balancing performance and longevity.
Its open design allows for easy lubrication with either grease or oil.
The temperature range of -30° to 110°C ensures reliable operation in various environments.
Precision tolerances maintain consistent performance throughout its service life.
Industrial Uses of NNCF 5015 CV Bearing
NNCF 5015 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its double-row design handles high radial loads efficiently. The full complement of rollers ensures maximum load capacity, making it suitable for demanding environments.
In automotive applications, NNCF 5015 CV Bearing supports components such as wheel hubs and drivetrains, providing stability under combined loads. Its chrome steel construction offers durability, essential for long-term performance in vehicles.
For automation systems, NNCF 5015 CV Bearing is a reliable choice for robotic arms and precision equipment, where smooth operation is critical. The open design allows for easy lubrication, ensuring minimal maintenance downtime.
Where Is NNCF 5015 CV Bearing Used?
NNCF 5015 CV Bearing finds its place in wind turbines, where its ability to handle high radial loads and axial displacement is invaluable. The grease or oil lubrication options make it adaptable to various operating conditions.
In construction equipment, NNCF 5015 CV Bearing is often seen in cranes and excavators, thanks to its robust design and high static radial load capacity. The metric sizing ensures compatibility with a wide range of machinery.
Built for Heavy-Duty Use: NNCF 5015 CV Bearing
NNCF 5015 CV Bearing excels in steel mills and mining equipment, where extreme loads and harsh conditions are common. Its full complement roller arrangement eliminates the need for a cage, enhancing load distribution.
For medical imaging devices, NNCF 5015 CV Bearing provides smooth rotation and reliability, crucial for accurate diagnostics. The chrome steel material ensures longevity even in high-use scenarios.
Automotive vs Aerospace: Applications of NNCF 5015 CV Bearing
In automotive systems, NNCF 5015 CV Bearing is ideal for transmissions and differentials, offering high load capacity and durability. Its design ensures consistent performance under varying speeds.
In aerospace, NNCF 5015 CV Bearing is used in landing gear and auxiliary systems, where precision and reliability are paramount. The temperature range suits both ground and flight conditions.
