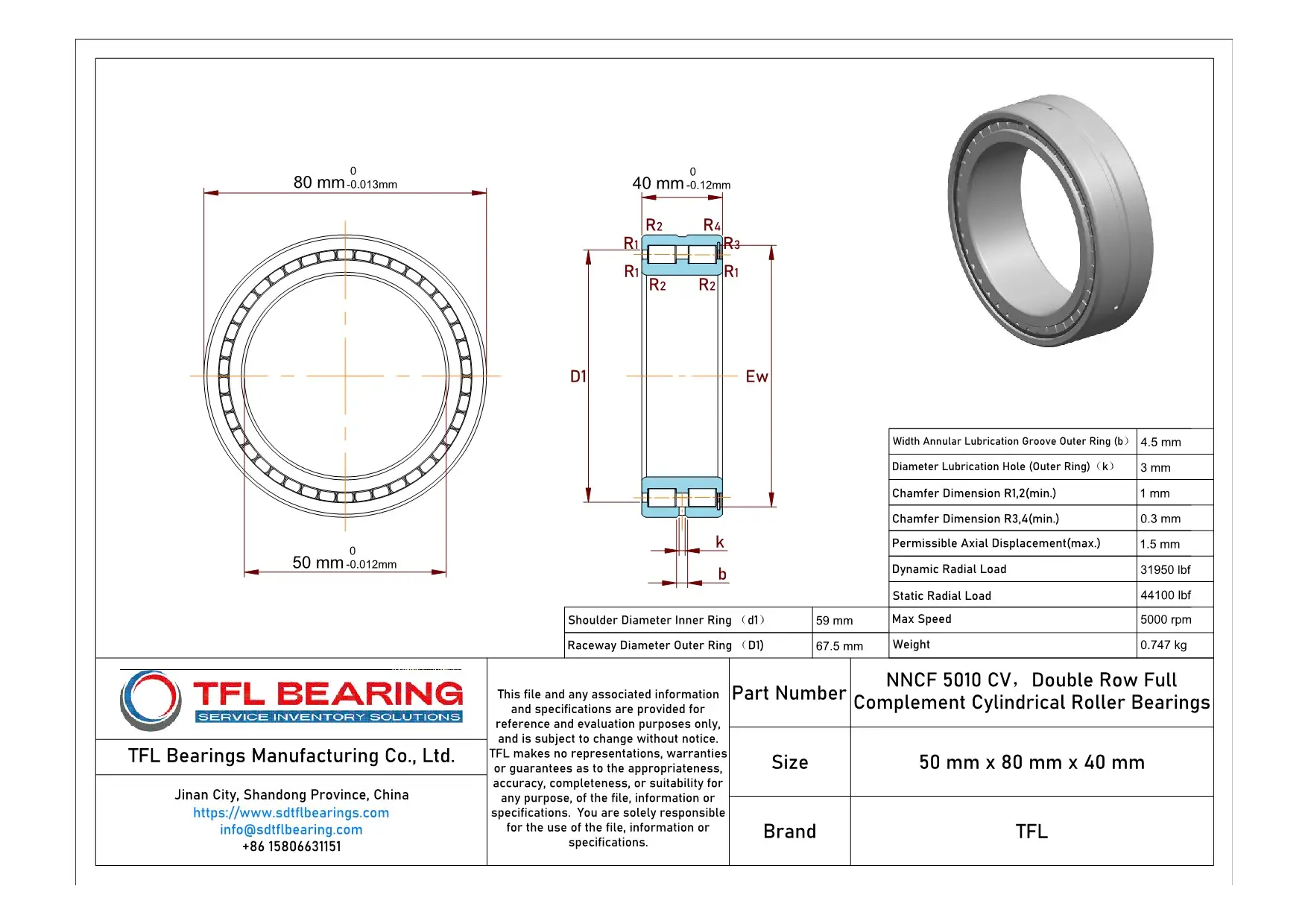

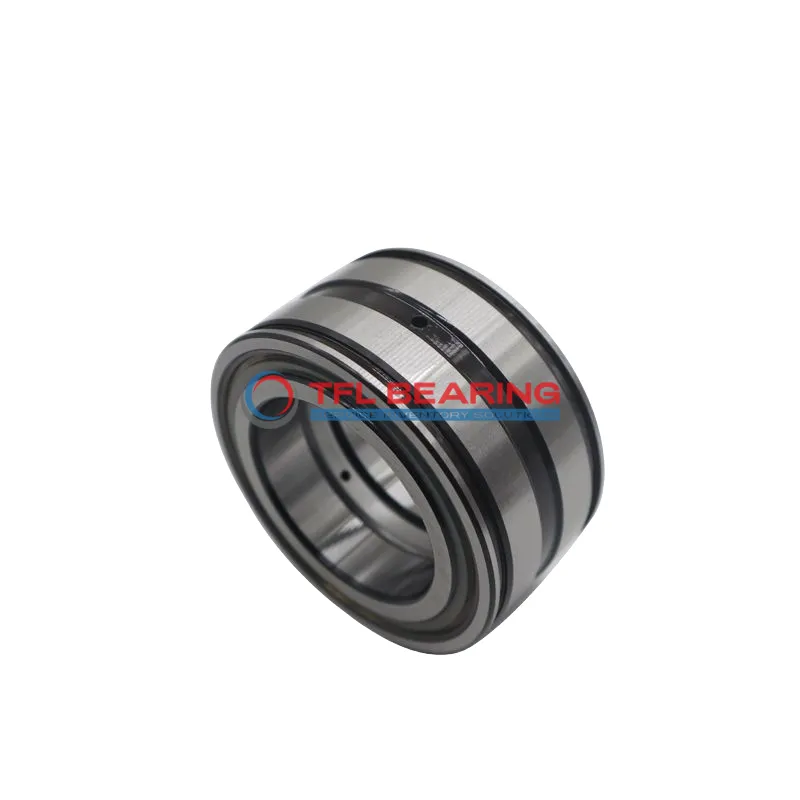

The NNCF 5010 CV is a double-row cylindrical roller bearing with a 50mm bore and 80mm outer diameter, crafted from durable 52100 chrome steel. It handles combined loads up to 31950 lbf and runs smoothly at speeds up to 5000 RPM.
Its full-complement design (no cage) maximises load capacity, while the open seal allows easy lubrication with grease or oil. The bearing operates reliably in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like gearboxes or industrial machinery where high radial loads are common.
Weighing 0.747kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of NNCF 5010 CV Bearing
NNCF 5010 CV Bearing is built with double-row full complement cylindrical rollers, offering high load capacity and stability.
Its 52100 chrome steel construction ensures durability and resistance to wear in demanding applications.
The open design allows for easy lubrication with grease or oil, maintaining smooth operation.
With a dynamic radial load capacity of 31,950 lbf, it handles combined loads efficiently.
NNCF 5010 CV Bearing operates within a temperature range of -30° to 110°C, suitable for various environments.
Its maximum speed of 5,000 rpm ensures reliable performance in high-speed applications.
The full complement roller design eliminates the need for a cage, increasing load-bearing capacity.
Precision tolerances and chamfered edges ensure easy installation and alignment.
Industrial Uses of NNCF 5010 CV Bearing
NNCF 5010 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its double-row design handles high radial loads efficiently. The full complement of rollers ensures maximum load capacity without a cage, making it suitable for slow to moderate speed applications.
Where Is NNCF 5010 CV Bearing Used?
In automotive applications, NNCF 5010 CV Bearing supports components like wheel hubs and transmissions, thanks to its robust chrome steel construction. Its open design allows for easy lubrication, ensuring long service life even under demanding conditions.
Built for Heavy-Duty Use: NNCF 5010 CV Bearing
For automation equipment, NNCF 5010 CV Bearing provides reliable performance in robotic arms and assembly lines, where precision and durability are key. The metric sizing ensures compatibility with a wide range of machinery across different industries.
Automotive vs Aerospace: Applications of NNCF 5010 CV Bearing
In automotive systems, NNCF 5010 CV Bearing excels in handling combined loads in drivetrains, while in aerospace, it’s used in auxiliary equipment due to its high load capacity. The temperature range of -30° to 110°C makes it versatile for various environments.
Key Fields for NNCF 5010 CV Bearing
NNCF 5010 CV Bearing is ideal for construction equipment like cranes and excavators, where its static radial load capacity of 44100 lbf ensures stability. The grease or oil lubrication options provide flexibility for different operating conditions.
