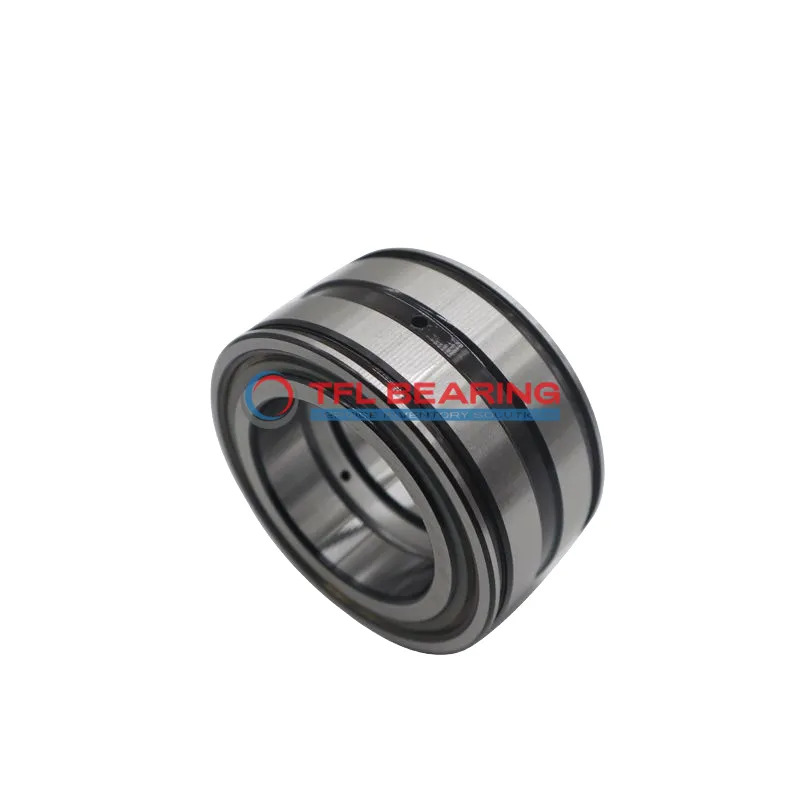

The NNCF 5009 CV is a double row full complement cylindrical roller bearing, measuring 45mm by 75mm by 40mm. Made from durable 52100 chrome steel, it’s built to handle heavy combined loads with ease.
With a dynamic radial load capacity of 25200 lbf and a static radial load of 35100 lbf, this bearing is robust and reliable. It can reach speeds up to 5000 RPM and operates smoothly in temperatures from -30°C to 110°C.
The full complement design (no cage) allows for maximum roller count, enhancing load capacity. Its open seal type simplifies lubrication, whether using grease or oil.
Ideal for heavy-duty applications like industrial gearboxes or machinery, where high radial loads are common. Compliant with RoHS and REACH standards, it’s a safe and dependable choice. Weighing 0.684kg, it balances strength with manageable size.
"*" indicates required fields
How Does NNCF 5009 CV Bearing Handle Combined Loads?
NNCF 5009 CV Bearing features a double row full complement design, providing excellent radial and axial load capacity.
Its 52100 chrome steel construction ensures durability and resistance to wear in demanding applications.
With a dynamic radial load of 25200 lbf, it performs reliably under heavy loads.
The open seal type allows for easy lubrication with grease or oil, enhancing its service life.
Why Choose NNCF 5009 CV Bearing for High-Speed Applications?
NNCF 5009 CV Bearing can reach speeds up to 5000 rpm, making it suitable for high-speed operations.
The full complement roller design eliminates the need for a cage, increasing load capacity and efficiency.
Its precise tolerances ensure smooth operation even at elevated speeds.
The temperature range of -30° to 110°C allows for versatile use in various environments.
Structural Advantages of NNCF 5009 CV Bearing

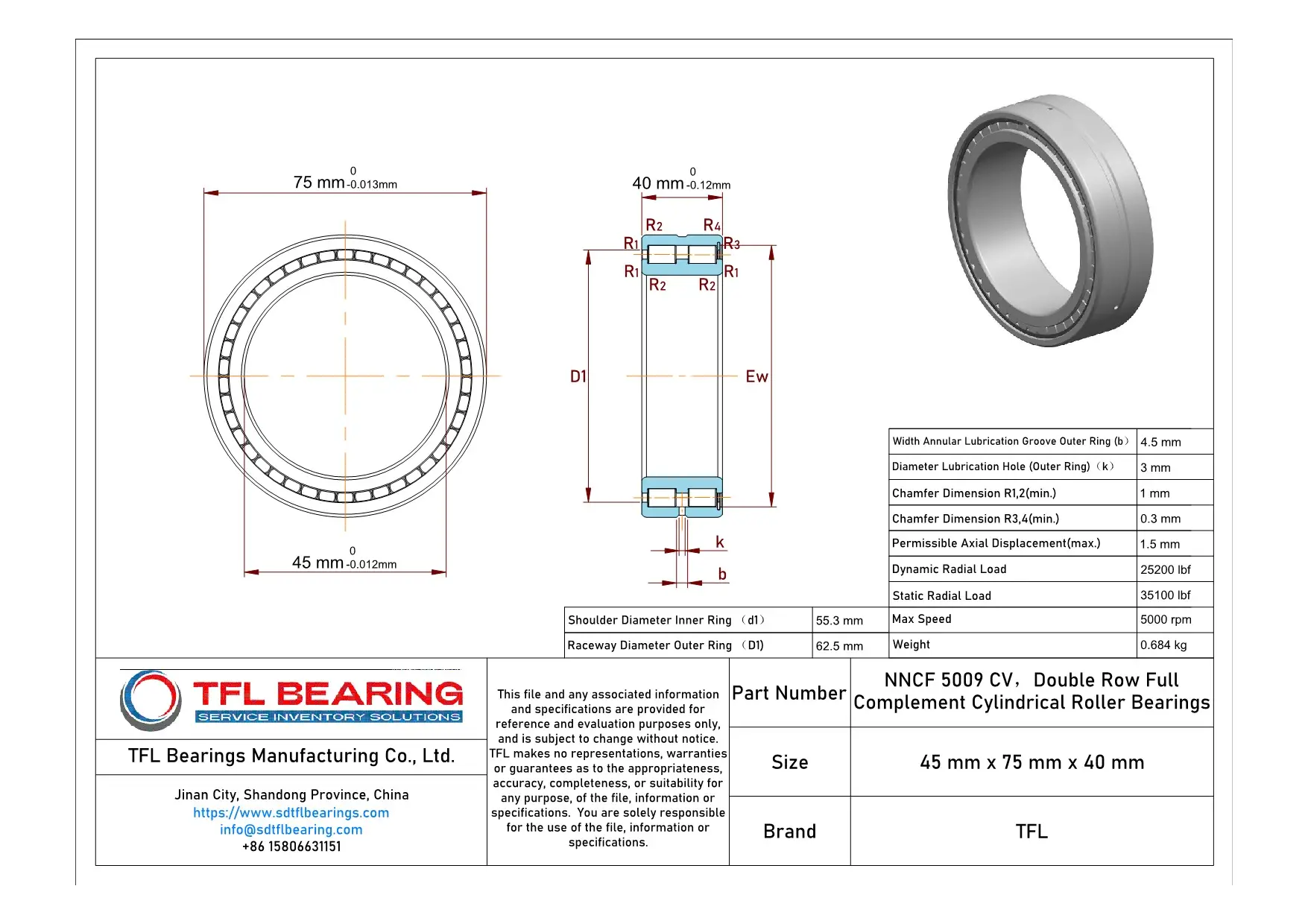

NNCF 5009 CV Bearing includes an annular lubrication groove and holes for consistent lubrication distribution.
The chamfer dimensions of 1 mm and 0.3 mm facilitate easier installation and alignment.
Its permissible axial displacement of 1.5 mm accommodates slight misalignments without compromising performance.
The absence of a cage maximises roller count, enhancing load-bearing capabilities.
Engineered for Reliability: NNCF 5009 CV Bearing
NNCF 5009 CV Bearing is built with 52100 chrome steel rollers and rings for long-lasting performance.
Its static radial load capacity of 35100 lbf ensures stability under heavy loads.
The open design simplifies maintenance, reducing downtime and operational costs.
Compliant with RoHS and REACH standards, it meets stringent environmental and safety requirements.
Material Composition of NNCF 5009 CV Bearing
NNCF 5009 CV Bearing uses 52100 chrome steel for both rings and rollers, offering high strength and wear resistance.
The full complement design without a cage increases the number of rollers, boosting load capacity.
This material choice ensures reliable performance in a wide temperature range from -30° to 110°C.
Its compliance with RoHS and REACH standards makes it an environmentally friendly option.
Common Applications of NNCF 5009 CV Bearing
NNCF 5009 CV Bearing is widely used in industrial machinery, especially in heavy-duty applications like gearboxes and rolling mills. Its double-row full complement design provides excellent radial load capacity, making it suitable for high-stress environments.
In automotive systems, NNCF 5009 CV Bearing can be found in transmissions and differentials, where its combined load handling ensures smooth operation. The chrome steel construction also offers durability under constant use.
For automation equipment, NNCF 5009 CV Bearing supports robotic arms and conveyor systems, thanks to its high-speed capability and open design. The absence of a cage allows for more rollers, enhancing load distribution.
Where Is NNCF 5009 CV Bearing Used?
NNCF 5009 CV Bearing is commonly found in machine tools, where its precision and load capacity are crucial. The grease or oil lubrication options make it adaptable to various operating conditions.
In medical imaging devices, NNCF 5009 CV Bearing provides reliable performance due to its smooth operation and temperature stability. The chrome steel material ensures long service life even in demanding settings.
Built for Heavy-Duty Use: NNCF 5009 CV Bearing
NNCF 5009 CV Bearing excels in construction equipment like cranes and excavators, handling heavy radial loads with ease. Its full complement design maximises roller count for improved load distribution.
In wind turbines, NNCF 5009 CV Bearing supports rotor shafts, benefiting from its high dynamic radial load rating. The open seal type allows for easy maintenance in remote locations.
Automotive vs Aerospace: Applications of NNCF 5009 CV Bearing
In automotive systems, NNCF 5009 CV Bearing is ideal for transmissions, while in aerospace, it suits auxiliary power units. The metric sizing ensures compatibility across different industries.
For industrial presses, NNCF 5009 CV Bearing handles combined loads effectively. Its temperature range makes it suitable for both high and low-temperature environments.
