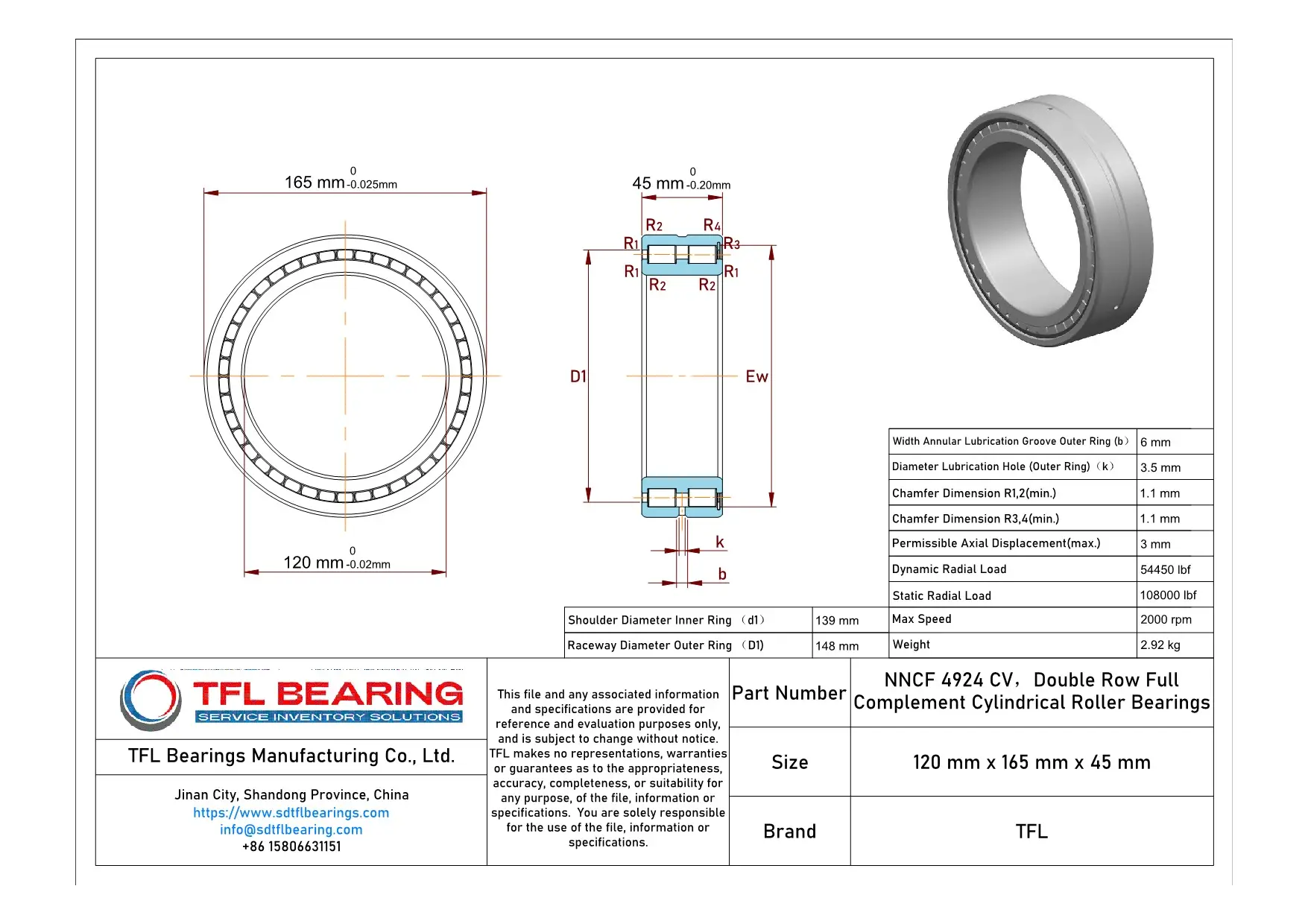

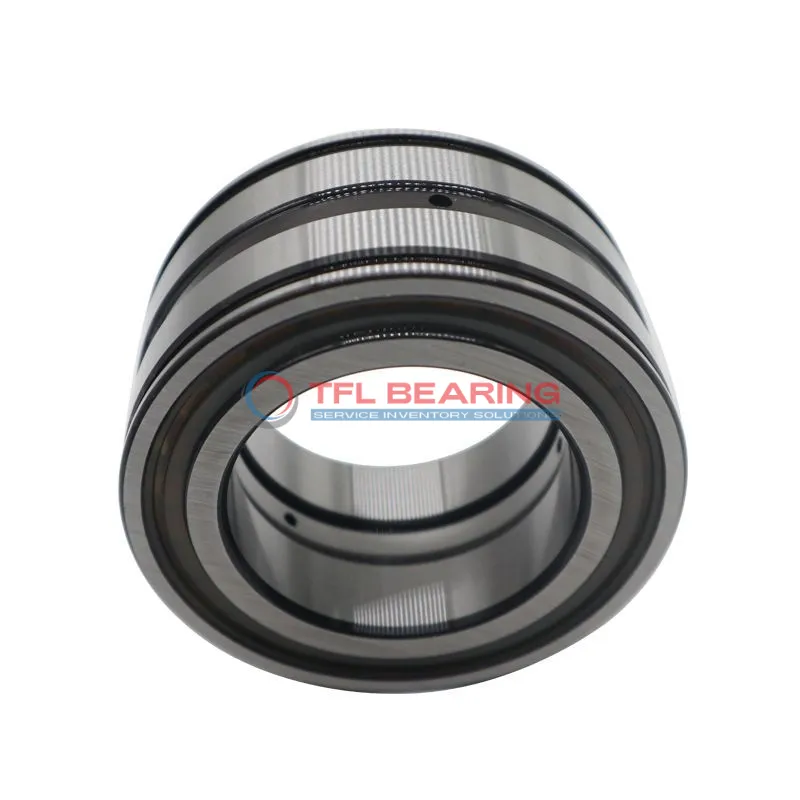

The NNCF 4924 CV is a double-row cylindrical roller bearing measuring 120mm by 165mm by 45mm, crafted from sturdy 52100 chrome steel. It supports combined loads with a dynamic radial capacity of 54450 lbf and spins smoothly up to 2000 RPM.
Its full complement design (no cage) maximises roller count for higher load handling, while the open seal allows easy lubrication with grease or oil. The bearing operates reliably in temperatures from -30°C to 110°C.
With a 3mm permissible axial displacement, it accommodates slight misalignments. The inner ring and precise tolerances ensure stable performance under heavy loads.
Ideal for industrial gearboxes or heavy machinery where robust radial and axial load support is needed. Compliant with RoHS and REACH standards, it weighs 2.92kg for its size.
"*" indicates required fields
Performance Features of NNCF 4924 CV Bearing
NNCF 4924 CV Bearing is built with double row full complement cylindrical rollers, offering high load capacity and durability.
Its chrome steel construction ensures resistance to wear, making it suitable for heavy-duty applications.
The open seal design allows for easy lubrication with grease or oil, maintaining smooth operation.
With a dynamic radial load capacity of 54,450 lbf, it handles combined loads efficiently.
NNCF 4924 CV Bearing operates in temperatures from -30° to 110°C, adapting to various working conditions.
Its full complement design maximizes roller count, enhancing load distribution and longevity.
The precise tolerances and dimensions ensure reliable performance in demanding industrial environments.
Weighing 2.92 kg, it balances strength and practicality for diverse applications.
Industrial Uses of NNCF 4924 CV Bearing
NNCF 4924 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its double-row design handles high radial loads efficiently. The full complement of rollers ensures maximum load capacity, making it suitable for demanding environments.
In automotive applications, NNCF 4924 CV Bearing supports components such as wheel hubs and drivetrains, providing stability under combined loads. Its chrome steel construction offers durability, even in high-speed scenarios.
For automation equipment, NNCF 4924 CV Bearing’s open design allows easy lubrication, ensuring smooth operation in robotic arms and assembly lines. The absence of a cage reduces friction, enhancing performance in continuous-use settings.
Medical imaging devices benefit from NNCF 4924 CV Bearing’s precision, as its robust design maintains accuracy in high-resolution scanners. The wide temperature range also ensures reliability in various clinical environments.
In consumer electronics, NNCF 4924 CV Bearing can be found in high-performance printers, where its smooth rotation reduces noise and vibration. The metric sizing makes it compatible with a range of European and Asian models.
