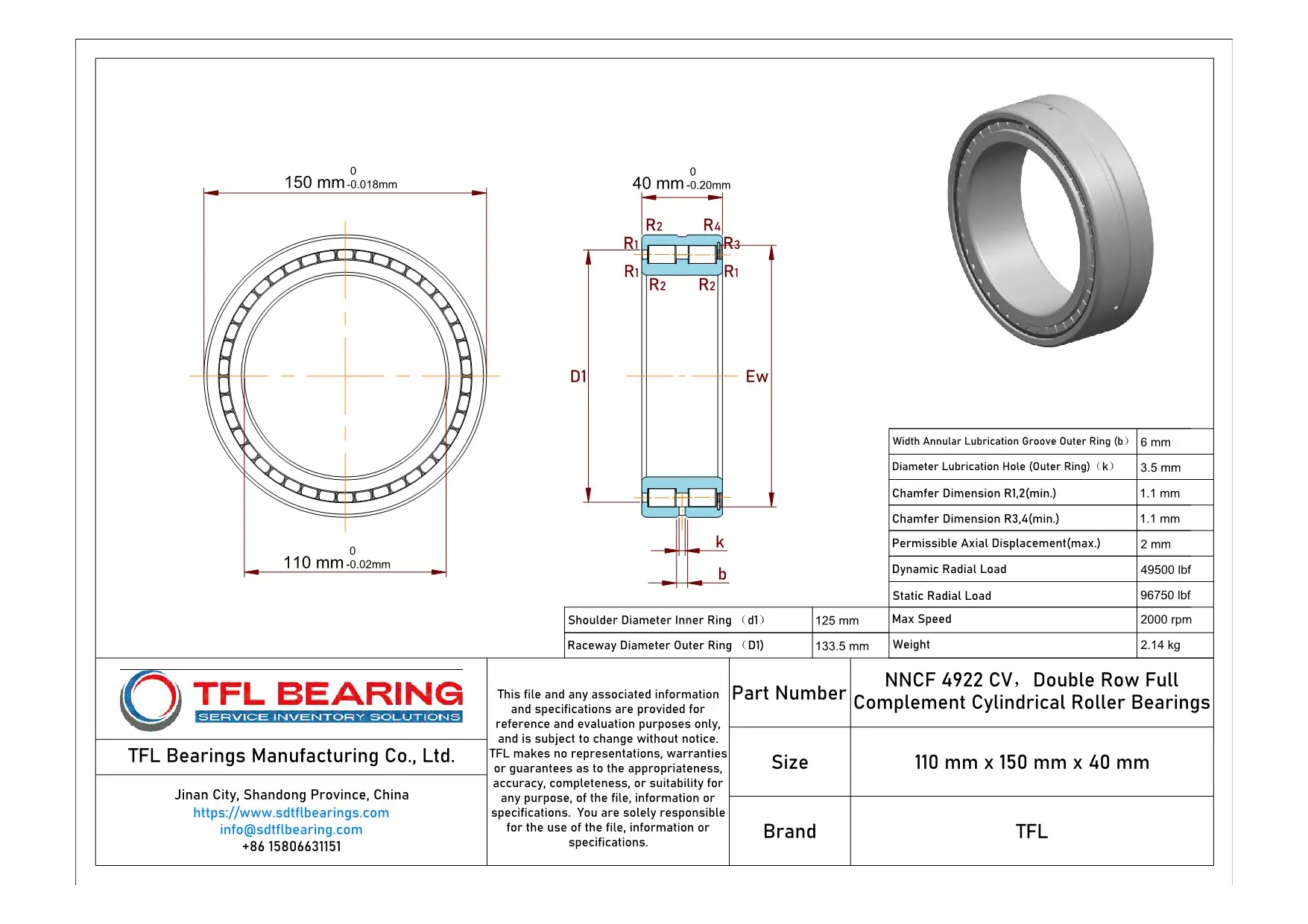

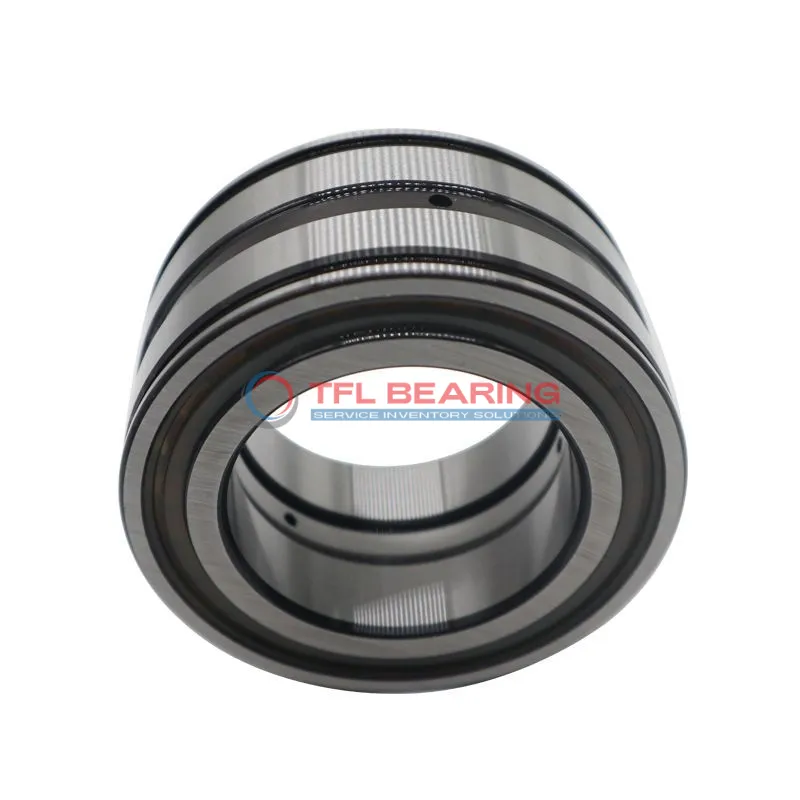

The NNCF 4922 CV is a double row full complement cylindrical roller bearing, measuring 110mm by 150mm by 40mm. Made from durable 52100 chrome steel, it handles combined loads with a dynamic radial load capacity of 49500 lbf.
Its full complement design (no cage) allows for higher load capacity and smooth operation at speeds up to 2000 RPM. The open seal type makes lubrication with grease or oil straightforward.
This bearing can handle axial displacement up to 2mm and works in temperatures from -30°C to 110°C. It’s interchangeable with SKF bearings, making it a practical choice for replacements.
Ideal for heavy-duty applications like industrial gearboxes or machinery where high radial loads are common. Compliant with RoHS and REACH standards, it weighs 2.14kg for its robust size.
"*" indicates required fields
Performance Features of NNCF 4922 CV Bearing
NNCF 4922 CV Bearing is built with double-row full complement rollers, offering high load capacity for combined radial and axial loads.
Its 52100 chrome steel construction ensures durability and resistance to wear in demanding conditions.
The open design allows for easy lubrication with grease or oil, enhancing performance and longevity.
With a dynamic radial load capacity of 49,500 lbf, it handles heavy-duty applications efficiently.
NNCF 4922 CV Bearing operates smoothly within a temperature range of -30° to 110°C, making it versatile for various environments.
Its full complement roller design maximises load distribution, reducing stress on individual components.
The precision-engineered dimensions ensure a perfect fit, minimising vibration and noise during operation.
Weighing just 2.14 kg, it provides strength without unnecessary bulk.
Industrial Uses of NNCF 4922 CV Bearing
NNCF 4922 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its double-row design handles high radial loads efficiently. The full complement roller arrangement ensures maximum load capacity without a cage, making it suitable for slow to moderate-speed applications.
Where Is NNCF 4922 CV Bearing Used?
In automotive manufacturing, NNCF 4922 CV Bearing supports components such as wheel hubs and drivetrains, thanks to its robust chrome steel construction. Its open design allows for easy lubrication, extending service life in demanding conditions.
Built for Heavy-Duty Use: NNCF 4922 CV Bearing
NNCF 4922 CV Bearing excels in construction equipment like cranes and excavators, where its high static radial load capacity is essential. The grease or oil lubrication options provide flexibility for different operating environments.
Automotive vs Aerospace: Applications of NNCF 4922 CV Bearing
In automotive applications, NNCF 4922 CV Bearing is ideal for transmissions and axles, while in aerospace, it’s used in auxiliary systems requiring reliable performance. Its metric sizing ensures compatibility with a wide range of machinery.
Key Fields for NNCF 4922 CV Bearing
NNCF 4922 CV Bearing is a popular choice in mining equipment, where its durability and high load capacity are critical. The absence of a cage allows for more rollers, enhancing its load-bearing capabilities in tough conditions.
