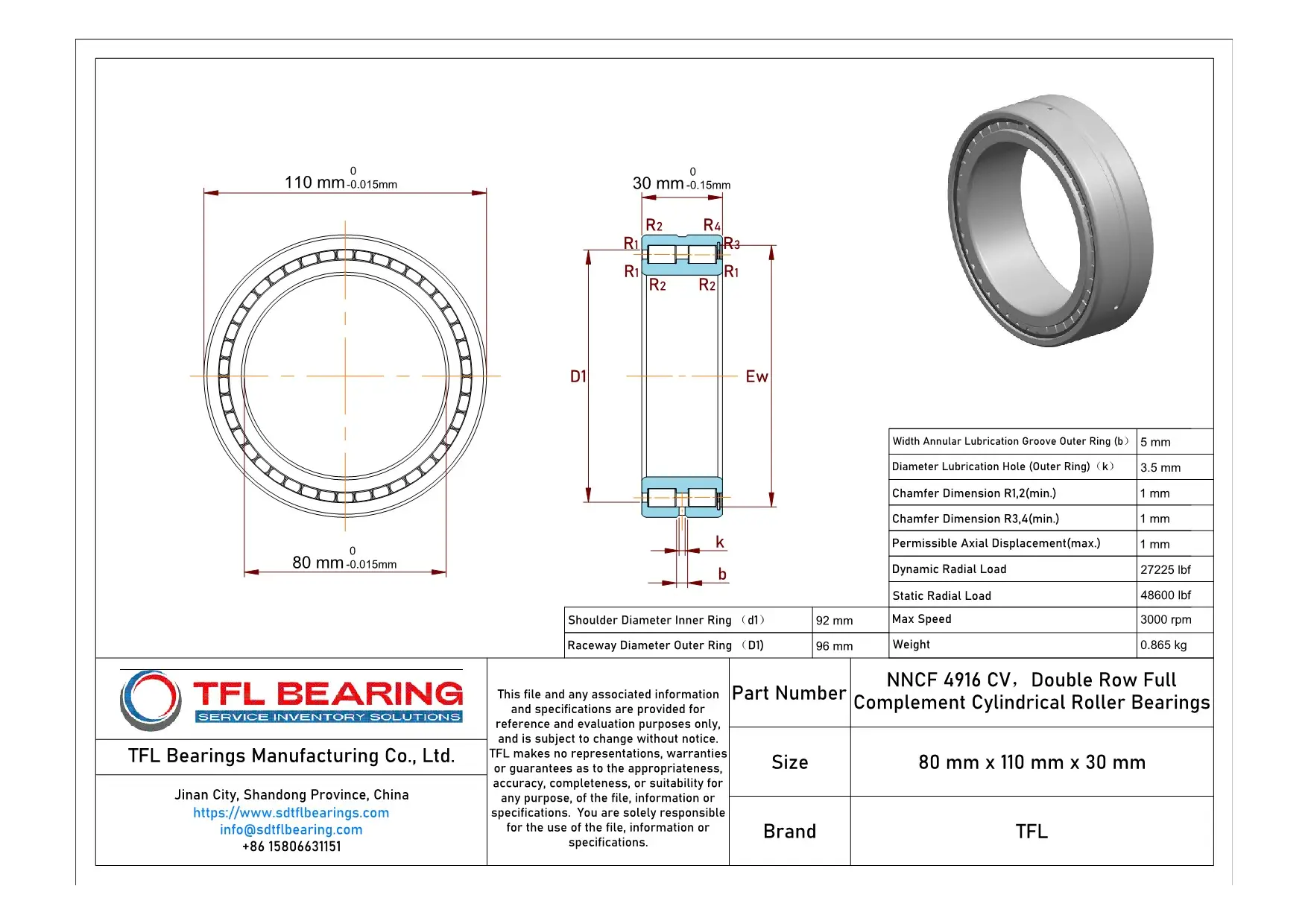

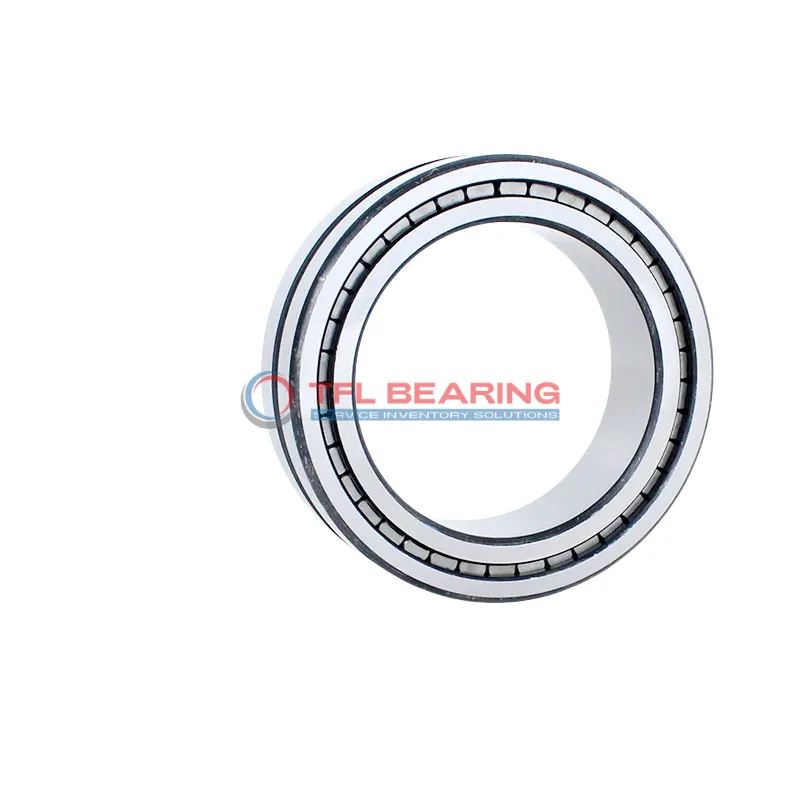

The NNCF 4916 CV is a double-row cylindrical roller bearing with an 80mm bore and 110mm outer diameter, crafted from durable 52100 chrome steel. Its full complement design boosts load capacity without a cage, making it sturdy for heavy-duty use.
This bearing handles combined loads up to 27225 lbf dynamically and spins smoothly at speeds up to 3000 RPM. It works well in temperatures from -30°C to 110°C, suitable for varied environments.
Its open design allows easy lubrication with grease or oil, while the double-row construction ensures stability under high radial loads. The 1mm chamfer edges help with smooth installation.
Ideal for industrial machinery like gearboxes or presses where heavy radial loads are common. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF models. Weighing 0.865kg, it balances strength and practicality.
"*" indicates required fields
Performance Features of NNCF 4916 CV Bearing
NNCF 4916 CV Bearing is constructed with double-row full complement cylindrical rollers, providing high radial load capacity.
Its dynamic radial load rating of 27225 lbf ensures reliable performance in heavy-duty applications.
The chrome steel rings and rollers enhance durability, while the full complement design maximises load distribution.
With a maximum speed of 3000 rpm, it balances efficiency and strength for demanding conditions.
NNCF 4916 CV Bearing operates smoothly in temperatures ranging from -30° to 110°C, adapting to various environments.
Its open design allows for easy lubrication with grease or oil, reducing maintenance requirements.
Industrial Uses of NNCF 4916 CV Bearing
NNCF 4916 CV Bearing is commonly used in heavy machinery like gearboxes and industrial pumps, where its double-row design handles high radial loads efficiently. The full complement of rollers ensures maximum load capacity without a cage, making it ideal for slow to moderate-speed applications.
Where Is NNCF 4916 CV Bearing Used?
You’ll often find NNCF 4916 CV Bearing in construction equipment, such as cranes and excavators, where its robust construction withstands harsh conditions. The open seal design allows for easy lubrication, extending its service life in dusty environments.
Built for Heavy-Duty Use: NNCF 4916 CV Bearing
NNCF 4916 CV Bearing excels in steel mills and mining equipment, thanks to its chrome steel rollers and rings. Its ability to handle combined loads makes it versatile for applications requiring both radial and axial support.
Automotive vs Aerospace: Applications of NNCF 4916 CV Bearing
In automotive systems, NNCF 4916 CV Bearing supports heavy-duty transmissions, while in aerospace, it’s used in landing gear mechanisms. The metric dimensions ensure compatibility with a wide range of international standards.
Perfect Fit for Automation: NNCF 4916 CV Bearing
NNCF 4916 CV Bearing is a reliable choice for robotic arms and automated assembly lines, where precision and durability are key. The absence of a cage reduces friction, allowing for smoother operation in repetitive tasks.
