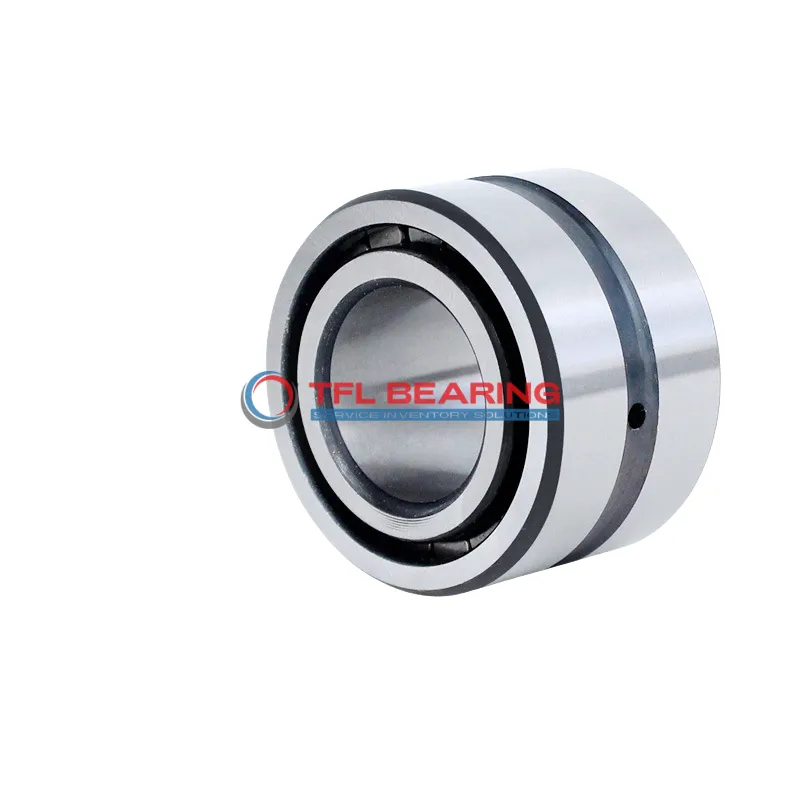

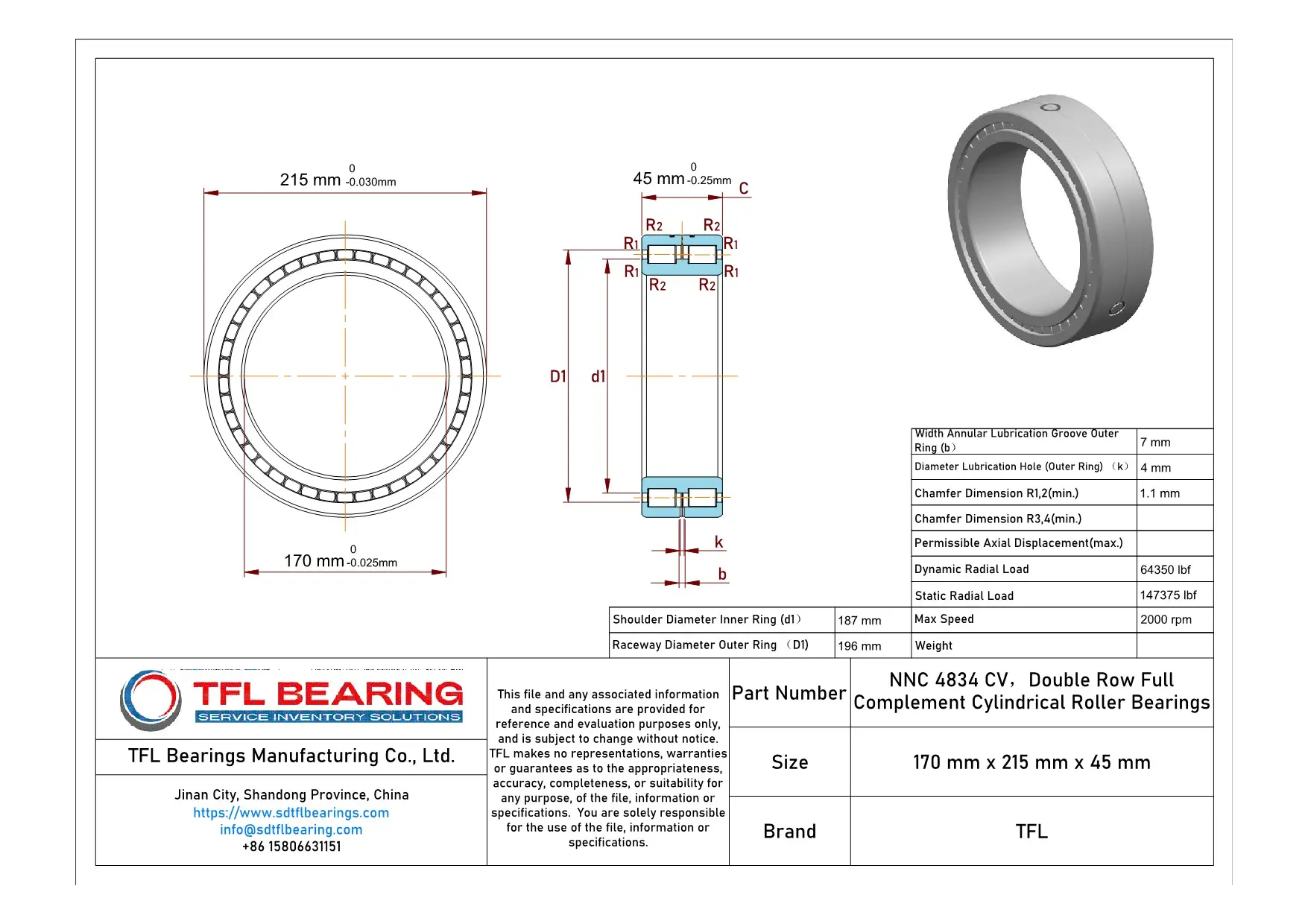

The NNC 4834 CV is a double row full complement cylindrical roller bearing, measuring 170mm in bore diameter and 215mm in outer diameter, with a width of 45mm. Made from durable 52100 chrome steel, it handles combined loads with a dynamic radial load capacity of 64350 lbf.
Its full complement design (no cage) allows for higher load capacity and smooth operation at speeds up to 2000 RPM. The open seal type makes lubrication easy, whether using grease or oil.
This bearing is suitable for applications with heavy radial loads, such as industrial gearboxes or large machinery. It operates reliably in temperatures from -30°C to 110°C.
Interchangeable with SKF bearings, it offers a practical solution for replacements. Compliant with RoHS and REACH standards, ensuring safe and environmentally friendly use.
"*" indicates required fields
Performance Features of NNC 4834 CV Bearing
NNC 4834 CV Bearing is built with double row full complement cylindrical rollers, offering high load capacity and durability.
Its 52100 chrome steel construction ensures strong resistance to wear and tear, even under heavy radial loads.
The dynamic radial load capacity reaches 64350 lbf, making it suitable for demanding industrial applications.
With a maximum speed of 2000 rpm, it balances performance and reliability.
How Is NNC 4834 CV Bearing Engineered for Reliability?
NNC 4834 CV Bearing features a full complement roller design, eliminating the need for a cage and maximising load distribution.
The 52100 chrome steel material provides excellent strength and fatigue resistance.
Its open seal type allows for easy lubrication with grease or oil, ensuring smooth operation.
The bearing operates efficiently within a temperature range of -30° to 110 °C.
Designed for Durability: NNC 4834 CV Bearing
NNC 4834 CV Bearing’s double row construction enhances its ability to handle combined loads with ease.
The precision-engineered rollers and raceways reduce friction, promoting longer service life.
With a static radial load capacity of 147375 lbf, it excels in heavy-duty applications.
Its robust design ensures reliable performance in various industrial environments.
Industrial Uses of NNC 4834 CV Bearing
NNC 4834 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its double-row design handles both radial and axial loads efficiently. The full complement of rollers ensures higher load capacity, making it suitable for demanding environments.
How Does NNC 4834 CV Bearing Improve Performance?
In wind turbine applications, NNC 4834 CV Bearing’s chrome steel construction provides durability and reliability under high dynamic loads. Its open design allows for easy lubrication, extending service life in harsh conditions.
Built for Heavy-Duty Use: NNC 4834 CV Bearing
NNC 4834 CV Bearing excels in mining equipment, where its robust design withstands extreme loads and vibrations. The absence of a cage maximises roller count, enhancing load distribution and longevity.
Automotive vs Aerospace: Applications of NNC 4834 CV Bearing
In automotive drivetrains, NNC 4834 CV Bearing supports high torque transmission, while in aerospace, its precision ensures smooth operation in landing gear mechanisms. The metric sizing offers compatibility across diverse industries.
Key Fields for NNC 4834 CV Bearing
NNC 4834 CV Bearing is ideal for steel mills, where its high static radial load capacity handles rolling mill stresses. The grease or oil lubrication options adapt to varying operational temperatures and speeds.
