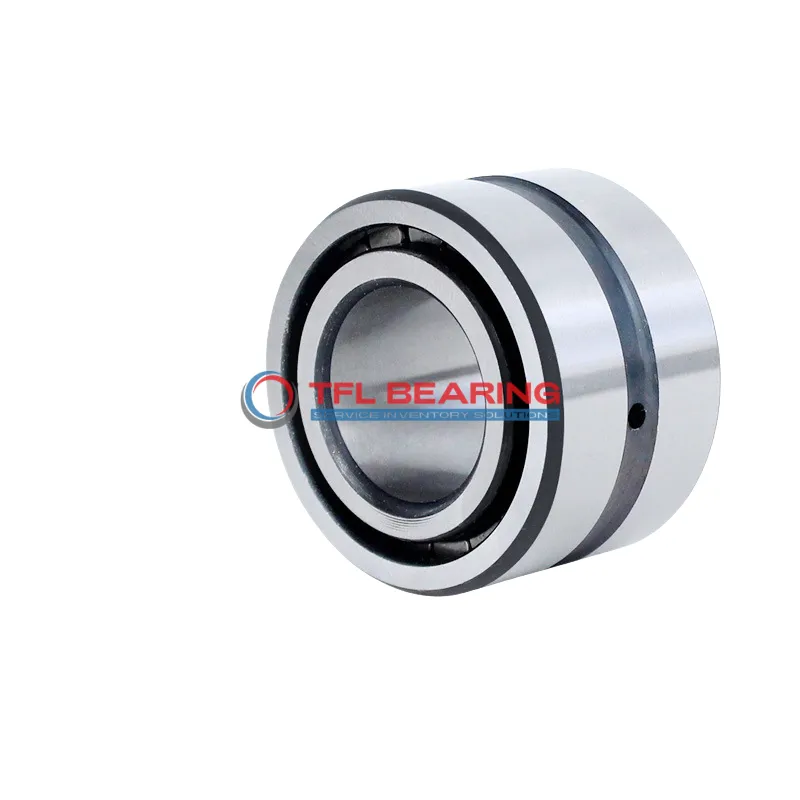

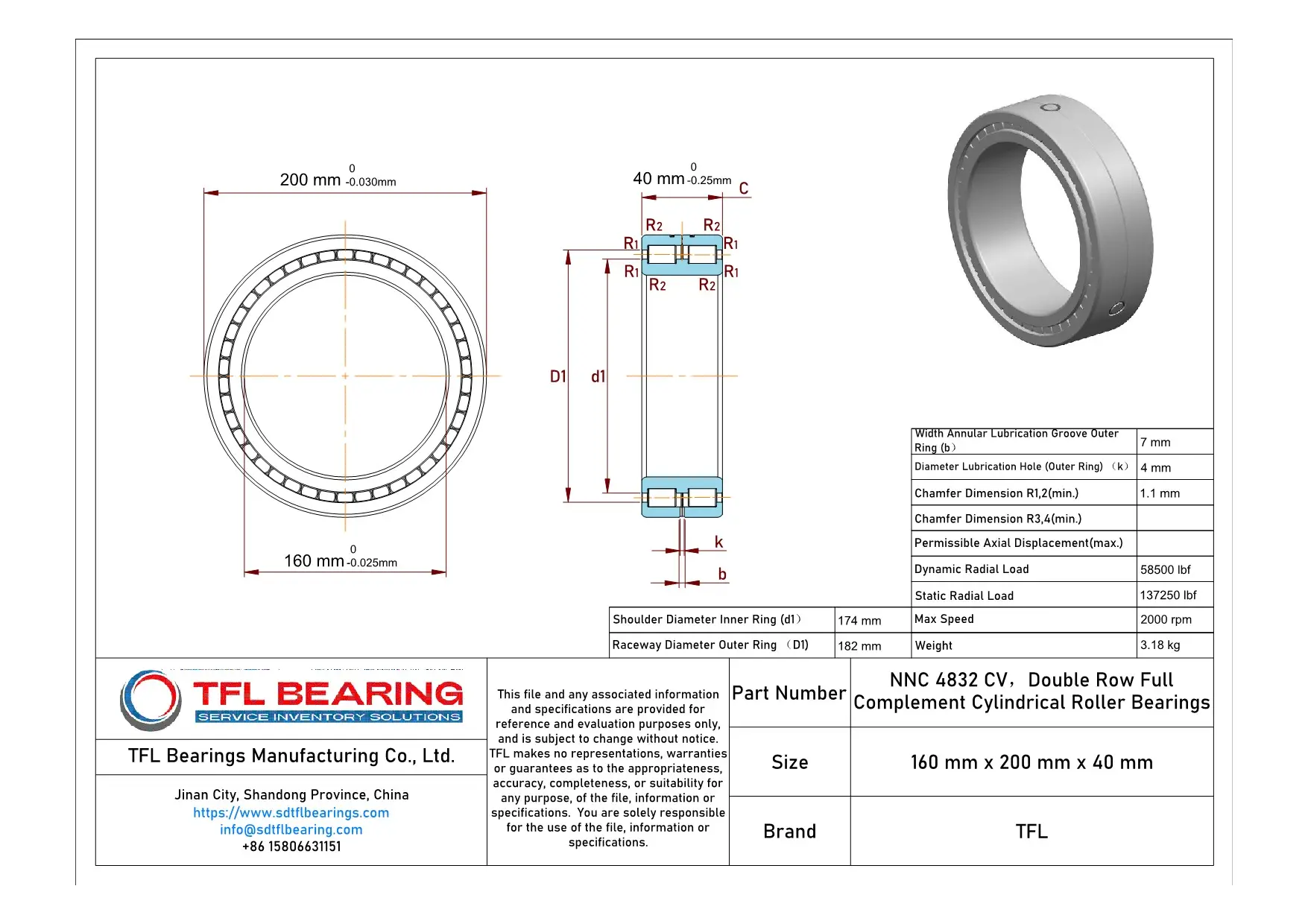

The NNC 4832 CV is a double-row cylindrical roller bearing with a 160mm bore and 200mm outer diameter, crafted from durable 52100 chrome steel. It handles combined loads up to 58500 lbf and operates smoothly at speeds up to 2000 RPM.
Its full complement design (no cage) maximises load capacity, while the open seal allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or machinery where high radial loads are common.
Weighing 3.18kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of NNC 4832 CV Bearing
NNC 4832 CV Bearing is built with double-row full complement cylindrical rollers, offering high load capacity and durability.
Its 52100 chrome steel construction ensures strong resistance to wear, even under heavy radial loads.
The bearing handles dynamic radial loads up to 58,500 lbf, making it suitable for demanding industrial applications.
With a maximum speed of 2,000 rpm, it balances performance and reliability in various operating conditions.
NNC 4832 CV Bearing operates efficiently in temperatures ranging from -30° to 110°C, adapting to different environments.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.
The full complement roller arrangement maximises load distribution, enhancing the bearing’s service life.
Precision-engineered dimensions ensure smooth operation and compatibility with standard industrial equipment.
Industrial Uses of NNC 4832 CV Bearing
NNC 4832 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its double-row design handles high radial loads efficiently. The full complement of rollers ensures maximum load capacity without a cage, making it suitable for slow to moderate-speed applications.
Where Is NNC 4832 CV Bearing Used?
You’ll often find NNC 4832 CV Bearing in construction equipment, such as crane slewing rings, where its robust construction and chrome steel material provide long-lasting performance. Its open design allows for easy lubrication, which is essential in dusty or high-load environments.
Built for Heavy-Duty Use: NNC 4832 CV Bearing
NNC 4832 CV Bearing excels in applications like rolling mills, where combined loads and high durability are required. The absence of a cage means it can handle heavier loads compared to standard cylindrical roller bearings, making it a reliable choice for industrial settings.
Automotive vs Aerospace: Applications of NNC 4832 CV Bearing
In automotive applications, NNC 4832 CV Bearing supports heavy-duty transmissions and axles, while in aerospace, its precision and load capacity make it suitable for landing gear components. The metric sizing ensures compatibility with a wide range of machinery across industries.
Practical Applications of NNC 4832 CV Bearing
NNC 4832 CV Bearing is ideal for wind turbine gearboxes, where its ability to handle high radial loads and moderate speeds ensures smooth operation. The grease or oil lubrication options make it adaptable to various environmental conditions, from cold climates to high-temperature industrial settings.
