The 319430 B-2LS is a double-row cylindrical roller bearing with a 150mm bore and 210mm outer diameter, built for combined loads. Made from durable chrome steel, it handles radial loads up to 108900 lbf and runs smoothly at 1000 RPM.
Its full-complement design (no cage) maximises roller count for higher load capacity, while the sealed construction keeps contaminants out. The bearing works in temperatures from -30°C to 110°C and accepts grease or oil lubrication.
Ideal for heavy machinery like gearboxes or industrial equipment where space and load demands are critical. Compatible with SKF bearings for easy replacement. The snap ring grooves (DIN 471 standard) ensure secure outer ring positioning during operation.
With a width of 80mm, it’s compact for its load rating. Compliant with RoHS and REACH standards for safe use in regulated environments.
"*" indicates required fields
Performance Features of 319430 B-2LS Bearing
319430 B-2LS Bearing is built with double-row full complement cylindrical rollers, offering high load capacity and durability.
Its chrome steel construction ensures resistance to wear, even under combined radial and axial loads.
The sealed design protects against contaminants, making it suitable for harsh environments.
With a dynamic radial load capacity of 108,900 lbf, it handles demanding applications with ease.
How Does 319430 B-2LS Bearing Resist Wear?
319430 B-2LS Bearing uses 52100 chrome steel for both rings and rollers, enhancing its wear resistance.
The full complement roller design maximises load distribution, reducing stress on individual components.
Sealed against dust and moisture, it maintains performance in challenging conditions.
Its static radial load capacity of 205,875 lbf ensures long-term reliability.
Engineered for Precision: 319430 B-2LS Bearing

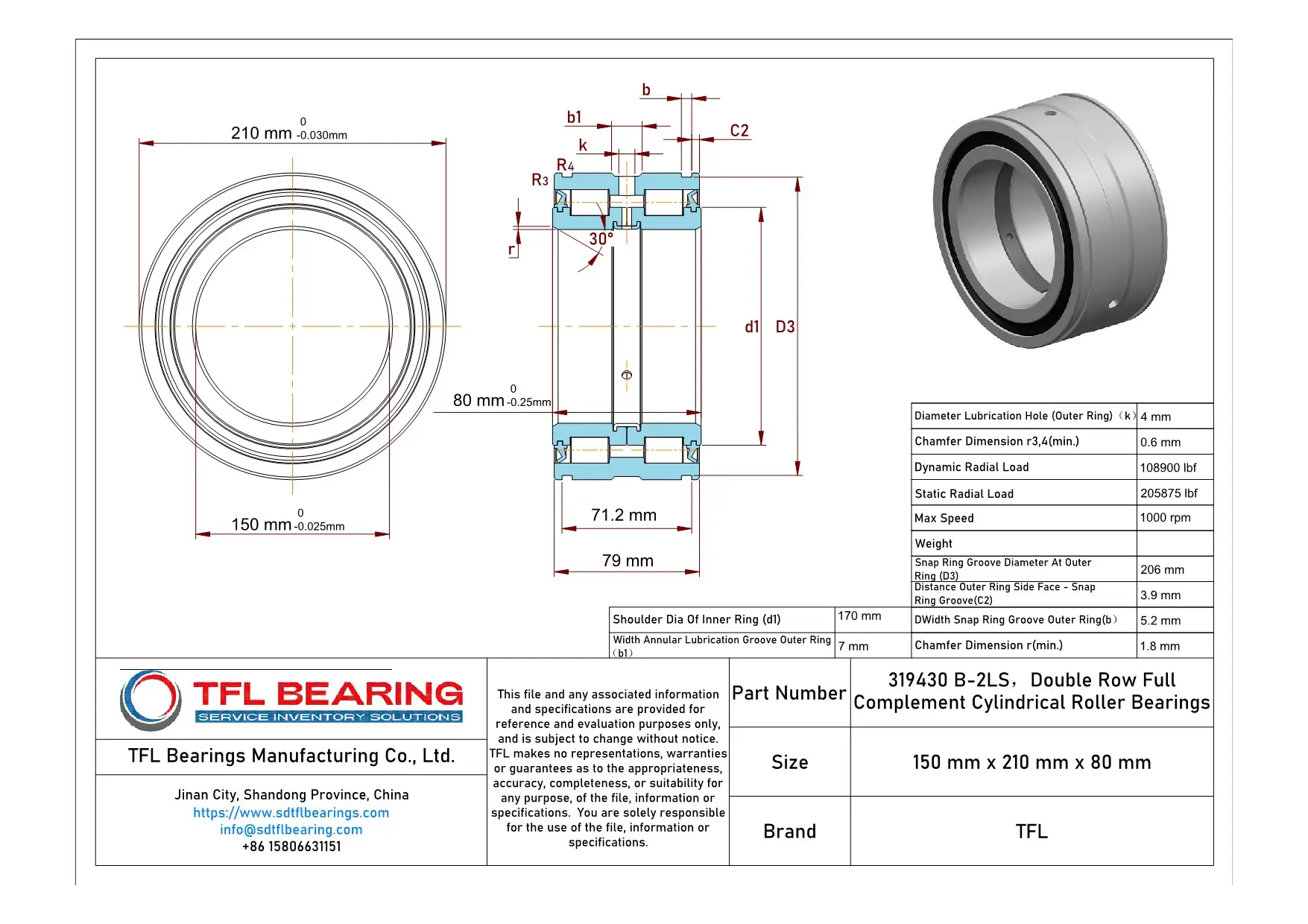

319430 B-2LS Bearing features precise tolerances, with bore diameter tolerance of -0.025mm to 0.
The double-row design provides stability and accuracy in high-load applications.
Lubrication options include grease or oil, allowing flexibility in maintenance.
Operating between -30° to 110°C, it performs consistently in varied temperatures.
Steel vs Ceramic Bearings: Strengths of 319430 B-2LS Bearing
319430 B-2LS Bearing’s 52100 chrome steel construction offers a balance of strength and affordability.
The full complement roller arrangement increases load capacity compared to caged designs.
Sealed for protection, it requires less frequent maintenance in dusty or wet conditions.
With a maximum speed of 1,000 rpm, it suits moderate to heavy-duty industrial applications.
Industrial Uses of 319430 B-2LS Bearing
319430 B-2LS Bearing is commonly used in heavy machinery like industrial gearboxes and rolling mills, where its double-row design handles high radial loads efficiently. The sealed construction keeps contaminants out, ensuring long service life even in harsh environments.
Where Is 319430 B-2LS Bearing Used?
You’ll often find 319430 B-2LS Bearing in construction equipment such as cranes and excavators, where its full complement rollers provide extra load capacity. The chrome steel material offers excellent wear resistance, making it suitable for continuous operation.
Built for Heavy-Duty Use: 319430 B-2LS Bearing
319430 B-2LS Bearing excels in applications like mining conveyors, where its robust design withstands extreme loads and vibrations. The grease or oil lubrication options allow for flexible maintenance in remote locations.
Automotive vs Aerospace: Applications of 319430 B-2LS Bearing
In automotive systems, 319430 B-2LS Bearing supports heavy axles and transmissions, while in aerospace, its precision ensures reliability in landing gear mechanisms. The metric sizing makes it versatile for global equipment standards.
Perfect Fit for Automation: 319430 B-2LS Bearing
319430 B-2LS Bearing is ideal for robotic arms in automated production lines, where its smooth operation reduces friction. The sealed design minimises maintenance, keeping downtime low in high-speed environments.
