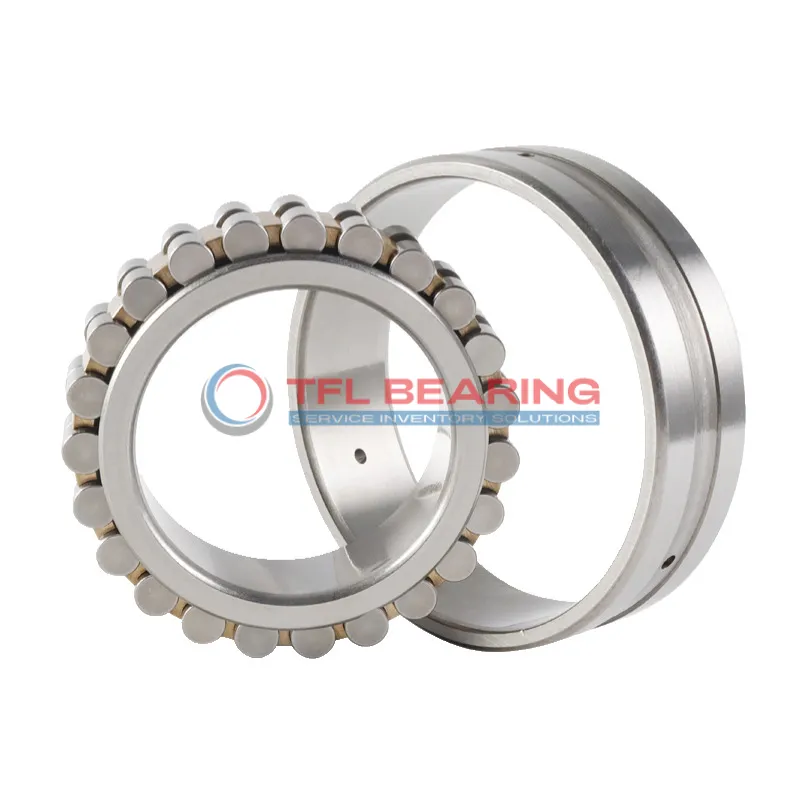

The BC2B 326379/HA4 is a double-row cylindrical roller bearing with a large 800mm bore and 1260mm outer diameter, designed for heavy-duty applications. It handles combined loads, with a dynamic radial load capacity of 2,880,000 lbf and a static radial load of 6,300,000 lbf.
Made from robust materials, it operates smoothly in temperatures ranging from -30°C to 110°C. The bearing can be lubricated with grease or oil, offering flexibility for different maintenance needs.
Its design includes chamfered edges on both inner and outer rings, ensuring easier installation and alignment. This model is interchangeable with SKF bearings, making it a reliable replacement option.
Ideal for industrial machinery like large gearboxes or heavy equipment, where high load capacity and durability are essential. Compliant with RoHS and REACH standards for safe and environmentally friendly use.
"*" indicates required fields
Performance Features of BC2B 326379/HA4 Bearing
BC2B 326379/HA4 Bearing is built for combined load applications, handling dynamic radial loads up to 2,880,000 lbf.
Its double-row cylindrical roller design ensures stability and even load distribution.
The bearing operates efficiently in temperatures ranging from -30° to 110°C, suitable for various industrial environments.
With grease or oil lubrication options, it offers flexibility for different maintenance needs.

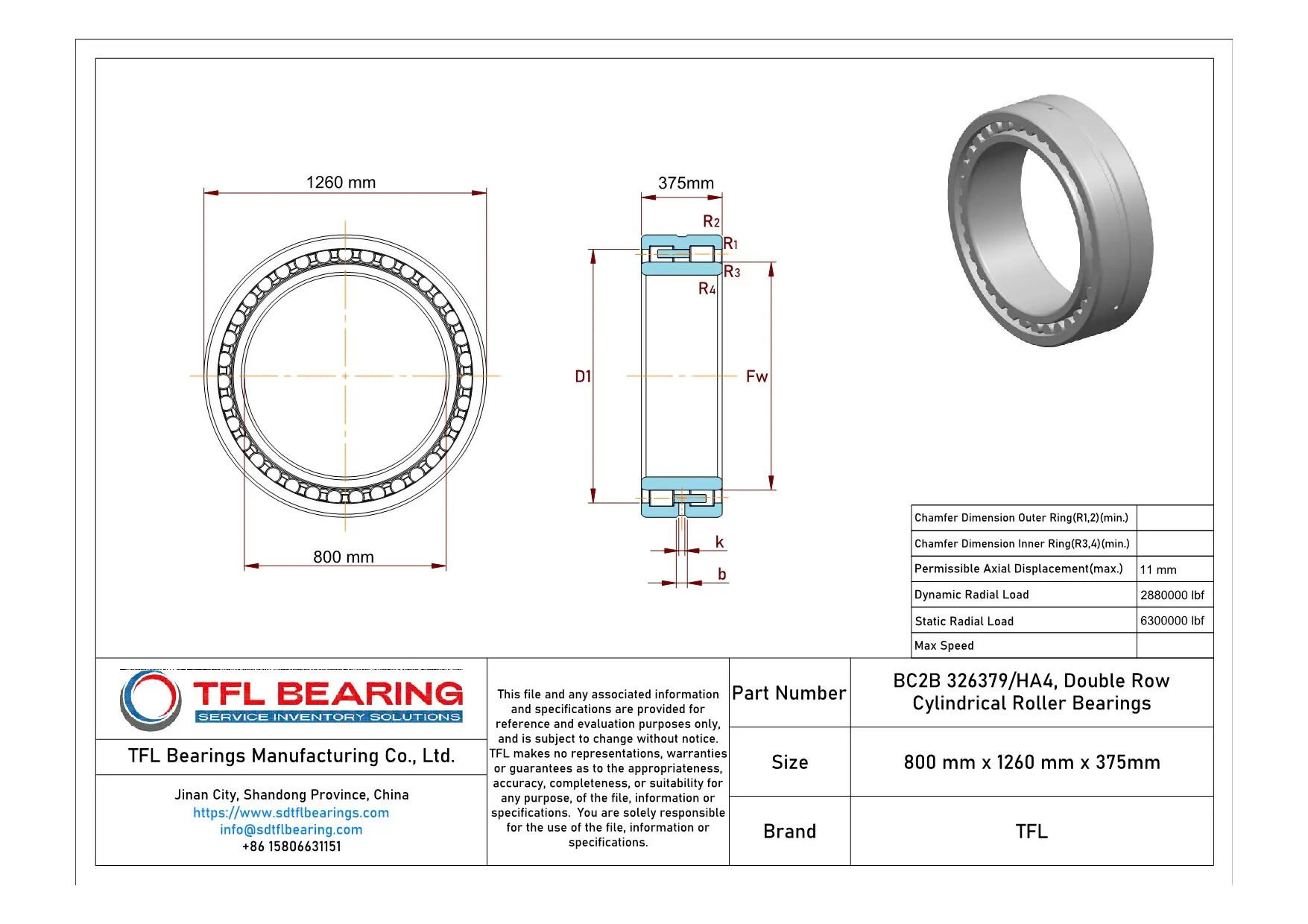

BC2B 326379/HA4 Bearing’s large dimensions (800 mm x 1260 mm x 375 mm) make it ideal for heavy machinery.
Its chamfered inner and outer rings facilitate easier installation and alignment.
Industrial Uses of BC2B 326379/HA4 Bearing
BC2B 326379/HA4 Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its double-row design handles both radial and axial loads efficiently. The generous load capacity makes it suitable for high-demand industrial environments.
In wind turbine applications, BC2B 326379/HA4 Bearing provides reliable support for main shafts, ensuring smooth rotation under varying wind conditions. Its grease or oil lubrication options allow for flexible maintenance in remote locations.
For mining equipment, BC2B 326379/HA4 Bearing’s robust construction withstands harsh conditions, such as extreme loads and vibrations. The metric sizing ensures compatibility with global machinery standards, simplifying replacements.
Where Is BC2B 326379/HA4 Bearing Used?
BC2B 326379/HA4 Bearing finds its place in paper manufacturing machines, where precise alignment and durability are essential for continuous operation. The combined load capability helps manage both radial and thrust forces seamlessly.
In construction cranes, BC2B 326379/HA4 Bearing supports the slewing mechanism, ensuring stability during heavy lifting. The wide temperature range allows performance in diverse weather conditions, from cold winters to hot summers.
Built for Heavy-Duty Use: BC2B 326379/HA4 Bearing
BC2B 326379/HA4 Bearing excels in steel production lines, where its high static and dynamic load ratings handle intense pressure. The cylindrical roller design ensures even load distribution, reducing wear over time.
For marine propulsion systems, BC2B 326379/HA4 Bearing offers reliable performance in saltwater environments. The corrosion-resistant materials and lubrication options extend service life, even in challenging conditions.
