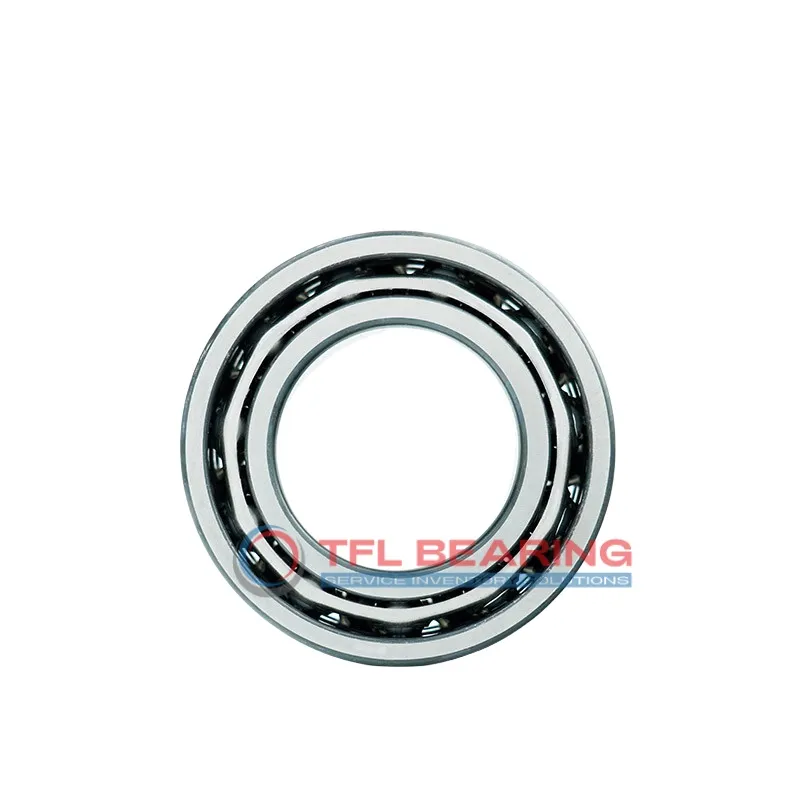

The 3319 A is a double-row angular contact ball bearing with a 95mm bore and 200mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 54000 lbf and runs smoothly at speeds up to 3200 RPM.
Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing operates well in temperatures from -30°C to 110°C, making it versatile for various conditions.
This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial machinery or gear systems where angular contact loads are present.
Weighing 11kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements. The P6 tolerance class ensures precise performance for demanding tasks.
"*" indicates required fields
Performance Features of 3319 A Bearing
3319 A Bearing is constructed with chrome steel rings and balls, offering robust performance under heavy radial loads.
Its dynamic radial load capacity reaches 54000 lbf, making it suitable for demanding industrial applications.
The double-row angular contact design enhances stability and load distribution, reducing stress on individual components.
Stainless steel cage ensures proper ball alignment, minimising wear and extending operational life.
With a maximum speed of 3,200 rpm, 3319 A Bearing balances efficiency and durability.
Its P6 tolerance class ensures precision, ideal for applications requiring consistent performance.
3319 A Bearing operates effectively in temperatures ranging from -30° to 110°C.
The open design allows for easy lubrication, maintaining smooth operation over time.
Industrial Uses of 3319 A Bearing
3319 A Bearing is commonly used in heavy industrial machinery, such as large pumps and compressors, where its double-row design provides stability under radial and axial loads. The chrome steel construction ensures durability in demanding environments.
Where Is 3319 A Bearing Used?
You’ll often find 3319 A Bearing in automotive applications like wheel hubs, where its angular contact design handles combined loads efficiently. The metric sizing makes it a versatile choice for various vehicle models.
Built for Heavy-Duty Use: 3319 A Bearing
3319 A Bearing excels in construction equipment, such as cranes and excavators, thanks to its high dynamic radial load capacity. The stainless steel cage adds extra resistance to wear and corrosion.
Automotive vs Aerospace: Applications of 3319 A Bearing
In automotive systems, 3319 A Bearing supports heavy loads in transmissions and differentials. For aerospace, its precision tolerances make it suitable for auxiliary equipment requiring reliable performance.
Perfect Fit for Automation: 3319 A Bearing
3319 A Bearing is ideal for robotic arms in automated production lines, where smooth angular movement is essential. The lubricated design ensures long service life with minimal maintenance.
"*" indicates required fields

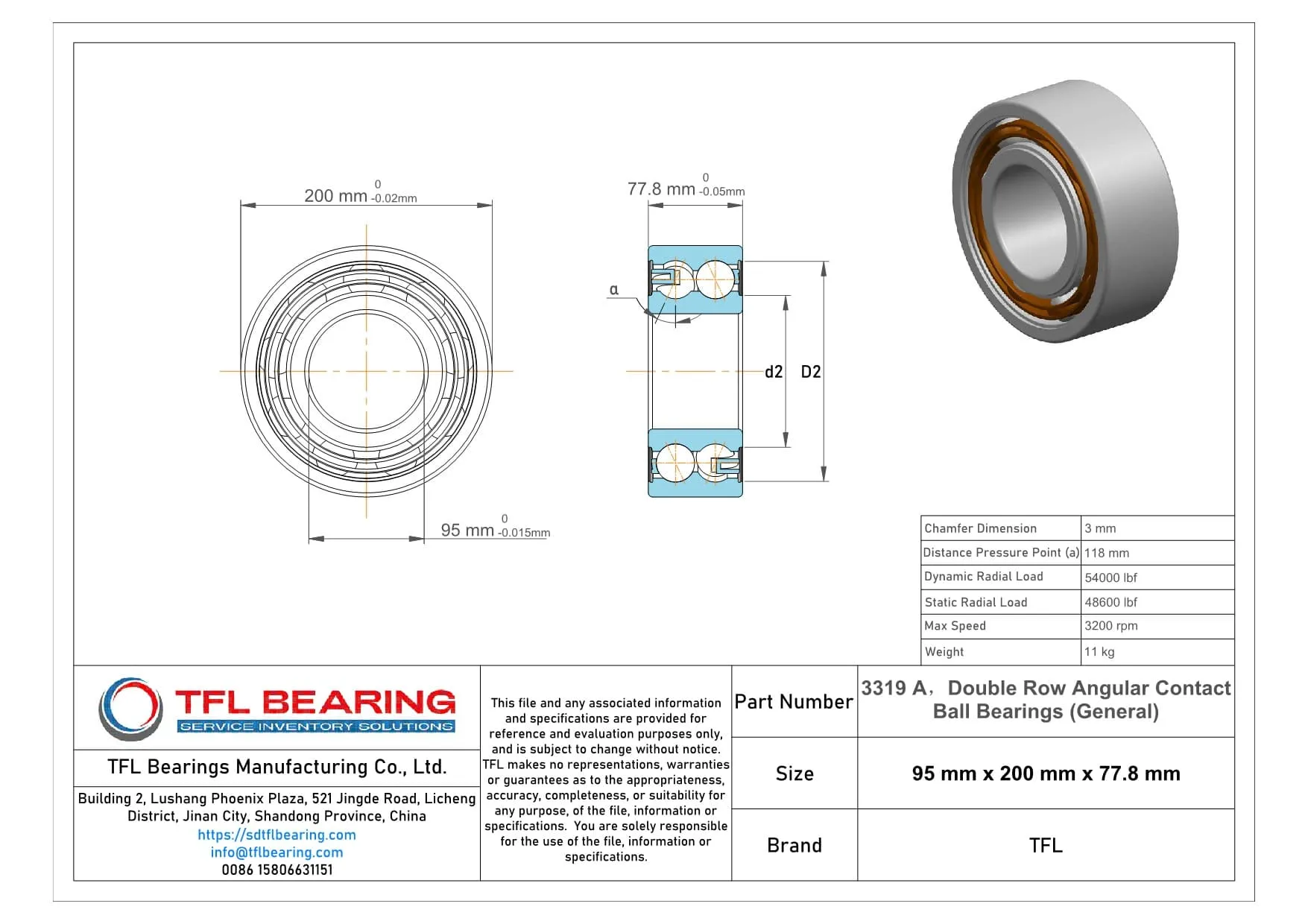

-3319-A-Drawing.webp)
