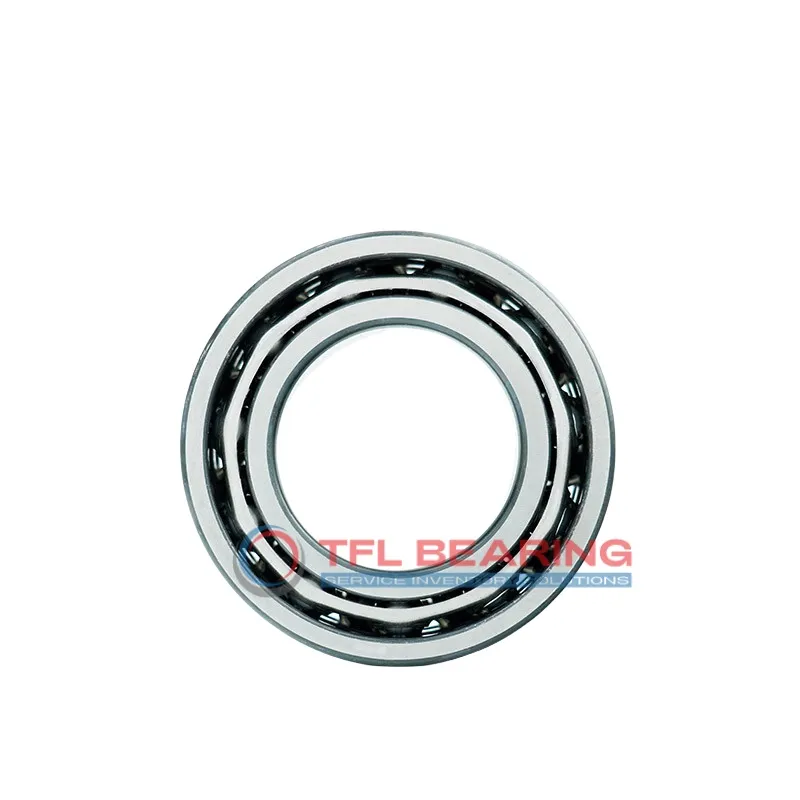

The 3313 A is a double-row angular contact ball bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 32850 lbf and operates smoothly at speeds up to 4500 RPM.
Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like pumps or industrial gearboxes where angular contact loads are common.
Weighing 4.1kg, it offers a robust build for demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Core Advantages of 3313 A Bearing
3313 A Bearing features a double-row angular contact design, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the stainless steel cage ensures smooth operation.
With a dynamic radial load capacity of 32,850 lbf, 3313 A Bearing performs reliably under heavy loads.
The P6 tolerance class ensures precision, making it suitable for high-accuracy applications.
3313 A Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, extending service life and reducing maintenance needs.
The 65 mm bore and 140 mm outer diameter make 3313 A Bearing versatile for various industrial uses.
Its balanced construction minimises vibration, enhancing performance in demanding conditions.
Industrial Uses of 3313 A Bearing
3313 A Bearing is commonly used in heavy machinery, such as industrial gearboxes and large pumps, where its double-row design handles combined radial and axial loads efficiently. The chrome steel construction ensures durability in demanding environments.
Where Is 3313 A Bearing Used?
In automotive applications, 3313 A Bearing supports wheel hubs and transmission systems, providing stability under high-speed conditions. Its metric sizing makes it a versatile choice for various vehicle designs.
Built for Heavy-Duty Use: 3313 A Bearing
This bearing excels in construction equipment, like cranes and excavators, where its robust design withstands heavy loads and harsh conditions. The stainless steel cage adds extra resistance to wear and tear.
Automotive vs Aerospace: Applications of 3313 A Bearing
While 3313 A Bearing is popular in automotive systems for its load capacity, it also finds use in aerospace applications, such as landing gear mechanisms, where precision and reliability are key.
Perfect Fit for Automation: 3313 A Bearing
In robotic arms and automated production lines, 3313 A Bearing offers smooth rotation and precise movement. Its open design allows for easy lubrication, ensuring long service life.
