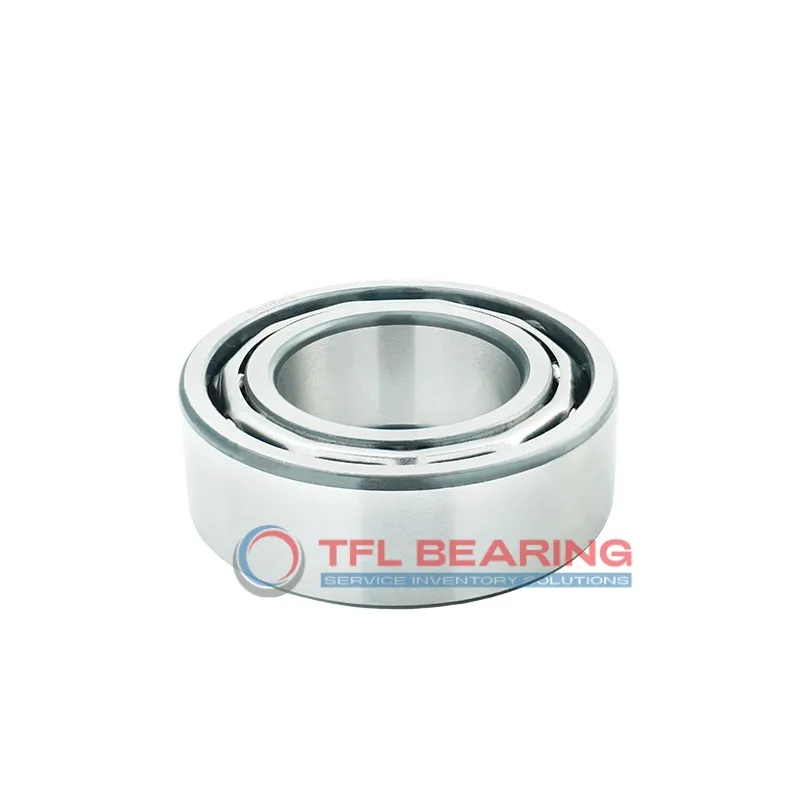

The 3310 A is a double-row angular contact ball bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 21375 lbf and operates smoothly at speeds up to 6000 RPM.
Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery requiring high radial load capacity, such as pumps or industrial gearboxes.
Weighing 1.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.
"*" indicates required fields
Core Advantages of 3310 A Bearing
3310 A Bearing features a double-row angular contact design, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the stainless steel cage ensures smooth operation.
With a dynamic radial load capacity of 21375 lbf, 3310 A Bearing performs reliably under heavy loads.
The P6 tolerance class ensures precision, making it suitable for high-accuracy applications.
3310 A Bearing operates efficiently at speeds up to 6,000 rpm, balancing performance and durability.
Its open design simplifies lubrication, reducing maintenance needs and extending service life.
Designed for temperatures from -30° to 110°C, 3310 A Bearing adapts to various working conditions.
The 50 mm bore and 110 mm outer diameter make it versatile for different machinery setups.
Common Applications of 3310 A Bearing
3310 A Bearing is widely used in industrial machinery, especially in applications requiring high radial and axial load capacity, such as gearboxes and pumps. Its double-row design offers stability and reduces the need for frequent adjustments.
In automotive systems, 3310 A Bearing is commonly found in wheel hubs and transmissions, where its angular contact feature helps manage combined loads effectively. The chrome steel construction ensures durability even under demanding driving conditions.
For automation equipment, 3310 A Bearing provides reliable performance in robotic arms and conveyor systems. The open seal design allows for easy lubrication, extending its service life in continuous operation environments.
Medical imaging devices also benefit from 3310 A Bearing’s precision and smooth operation. The stainless steel cage enhances corrosion resistance, making it suitable for sterile environments.
In household appliances like washing machines, 3310 A Bearing handles high-speed rotations with minimal noise. Its balanced design ensures long-term reliability for daily use.
"*" indicates required fields

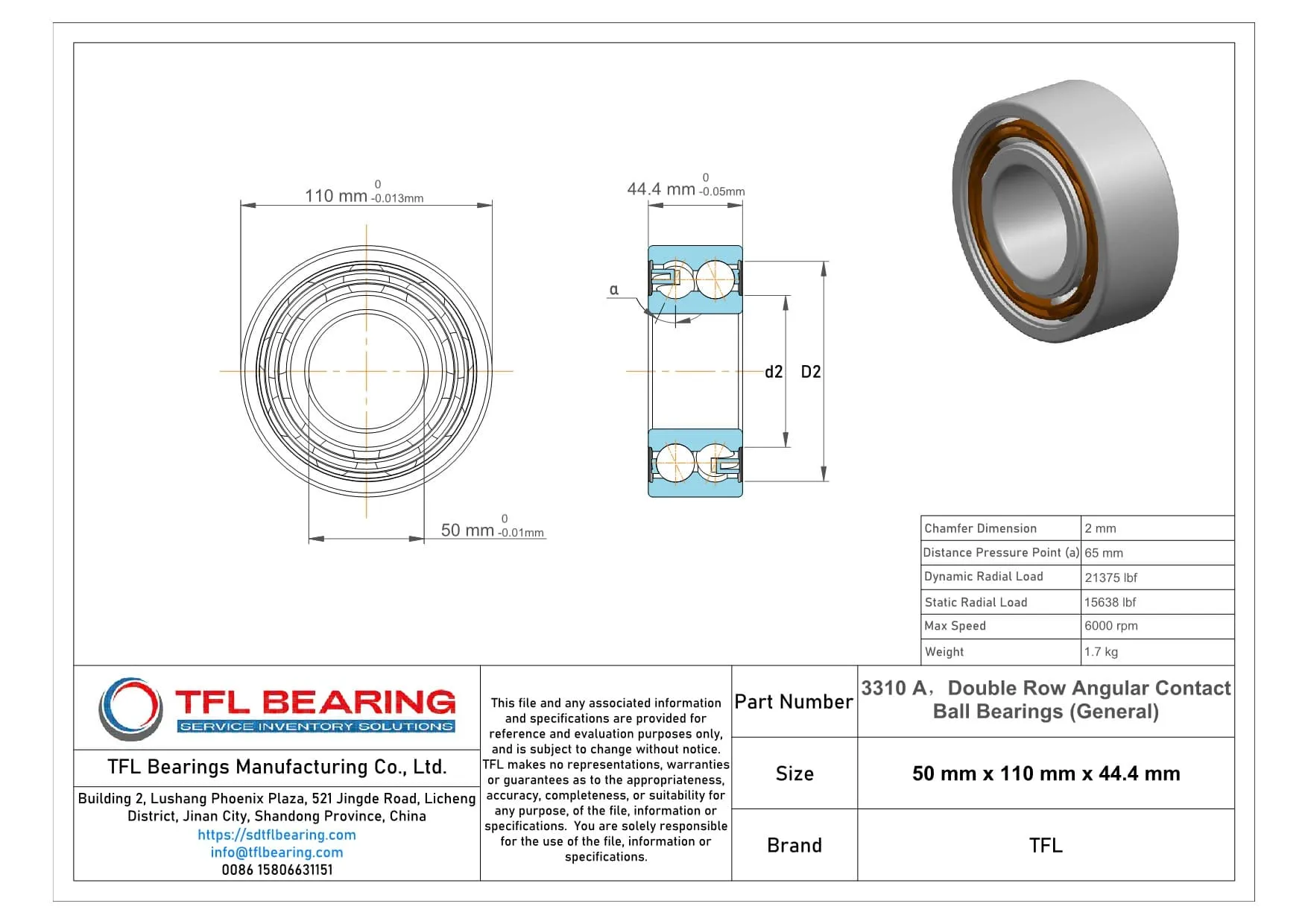

-3310-A-Drawing.webp)
