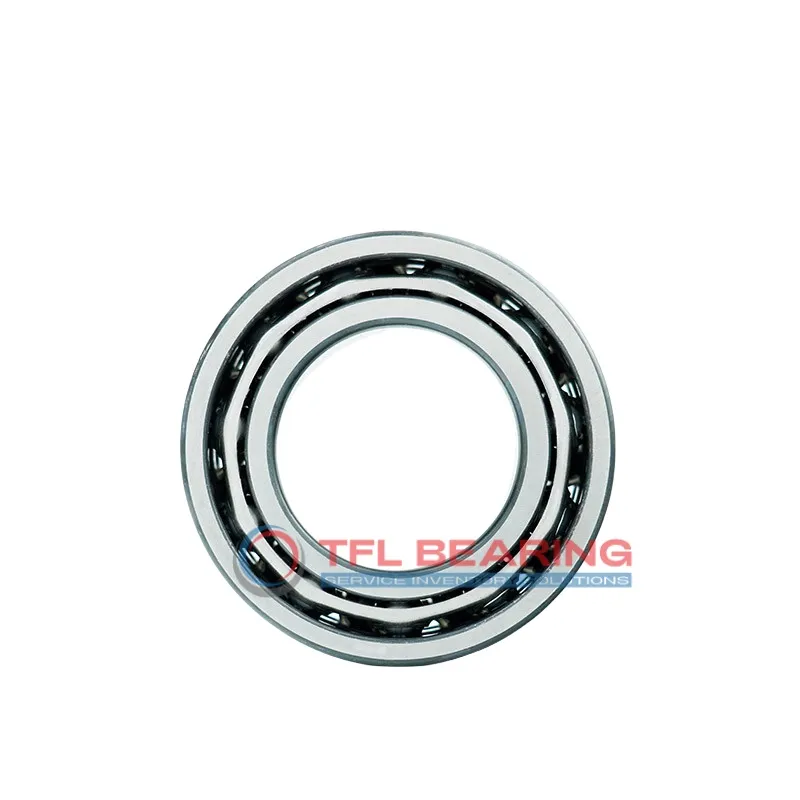

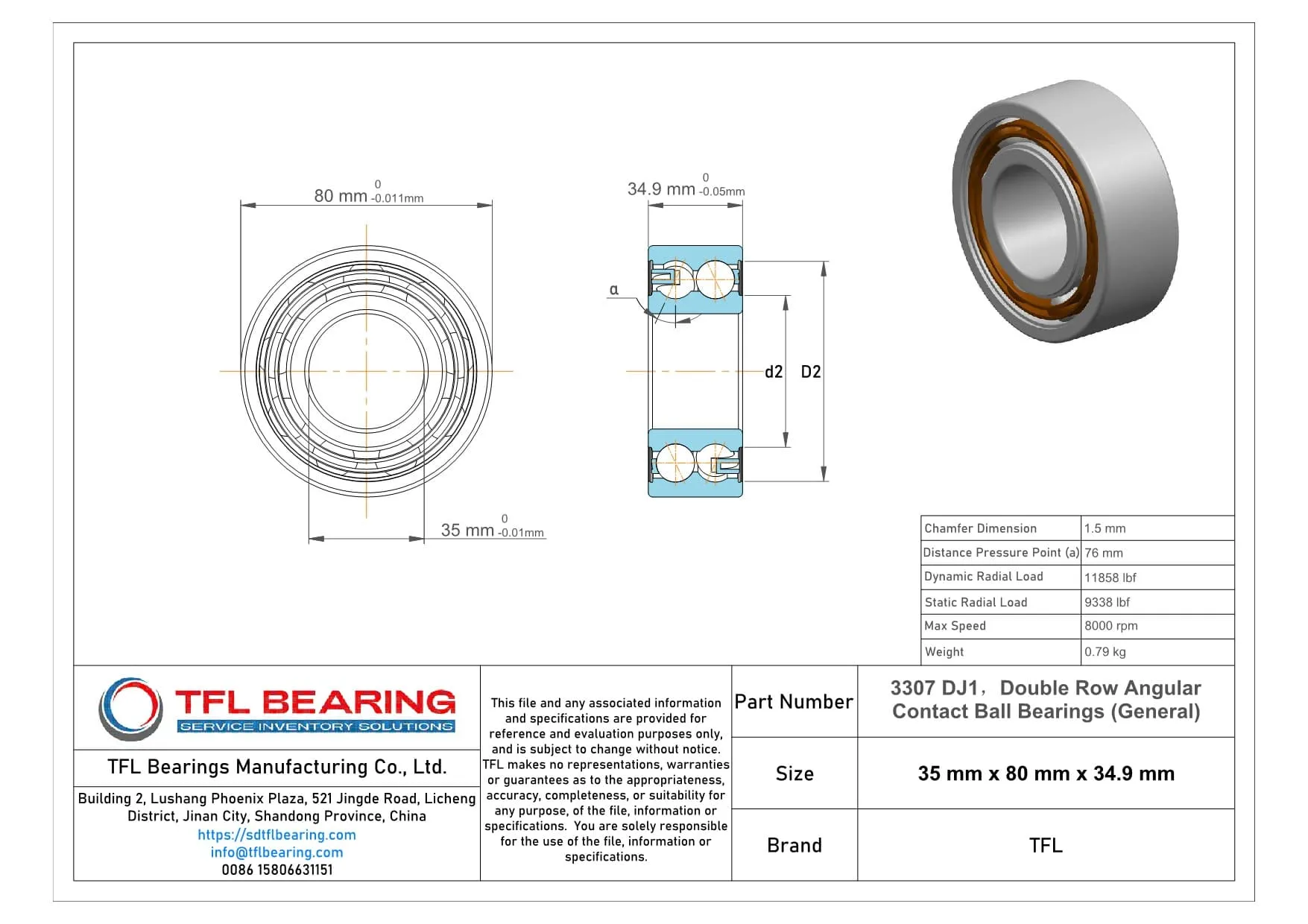

The 3307 DJ1 is a double-row angular contact ball bearing with a 35mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 11858 lbf and operates smoothly at speeds reaching 8000 RPM.
Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for machinery requiring precise angular contact support, such as pumps or gear systems.
Weighing 0.79kg, it balances strength and manageability. Compliant with RoHS and REACH standards, ensuring safety and environmental friendliness.
"*" indicates required fields
Performance Features of 3307 DJ1 Bearing
3307 DJ1 Bearing is built with chrome steel rings and balls, offering excellent resistance to radial and angular loads.
Its dynamic radial load capacity reaches 11858 lbf, ensuring reliable performance in various applications.
The double-row design of 3307 DJ1 Bearing enhances load distribution, reducing stress on individual components.
With a maximum speed of 8,000 rpm, it delivers both durability and efficiency.
3307 DJ1 Bearing operates smoothly in temperatures ranging from -30° to 110°C, making it versatile for different environments.
The stainless steel cage maintains ball alignment, contributing to longer service life.
Its P6 tolerance class ensures precision, making 3307 DJ1 Bearing suitable for high-accuracy applications.
The open design allows for easy lubrication, further enhancing performance.
Industrial Uses of 3307 DJ1 Bearing
3307 DJ1 Bearing is commonly used in machine tools, where its double-row design handles combined radial and axial loads efficiently. The open seal type simplifies lubrication, ensuring smooth operation in demanding industrial environments.
What Makes 3307 DJ1 Bearing a Preferred Choice?
In automotive applications like wheel hubs, 3307 DJ1 Bearing offers reliable performance due to its chrome steel construction. Its P6 tolerance class ensures precision, making it suitable for high-speed rotations.
Perfect Fit for Automation: 3307 DJ1 Bearing
For robotic arms and automated systems, 3307 DJ1 Bearing provides stability under varying loads. The stainless steel cage enhances durability, reducing maintenance needs in continuous operation scenarios.
Medical vs Industrial: Where 3307 DJ1 Bearing Excels
While 3307 DJ1 Bearing suits industrial gearboxes, its precision also benefits medical imaging devices. The lubricated design ensures quiet operation, crucial for sensitive medical environments.
Where to Use 3307 DJ1 Bearing
In consumer appliances like washing machines, 3307 DJ1 Bearing supports rotating drums with minimal noise. Its temperature range from -30° to 110°C ensures reliability in diverse household conditions.
