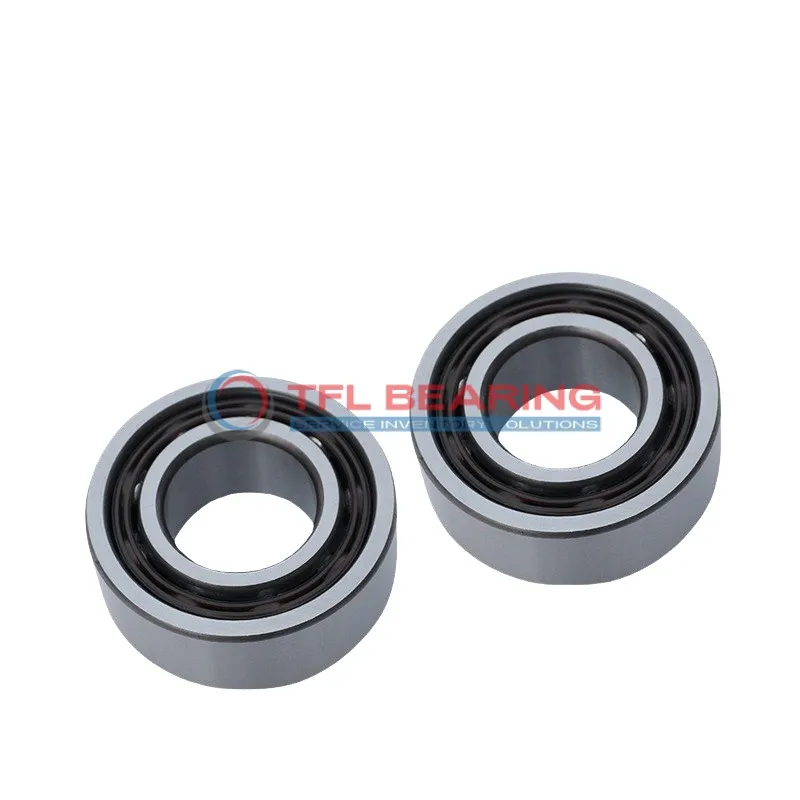

The 3307 A-2RS1TN9/MT33 is a double-row angular contact ball bearing with a 35mm bore and 80mm outer diameter, built from tough chrome steel. It manages radial loads up to 12150 lbf and runs smoothly at speeds up to 6000 RPM.
Its sealed design keeps dirt out and grease in, while the stainless steel cage adds durability. The bearing operates well in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact loads are needed.
Weighing 0.74kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of 3307 A-2RS1TN9/MT33 Bearing
3307 A-2RS1TN9/MT33 Bearing is built with double-row angular contact design, ideal for handling combined radial and axial loads.
The chrome steel rings and balls provide strong resistance to wear, ensuring long-term reliability.
Its sealed construction protects against contaminants, making it suitable for harsh environments.
With a dynamic radial load capacity of 12150 lbf, it performs well under heavy loads.
The stainless steel cage maintains ball alignment, reducing friction and noise.
3307 A-2RS1TN9/MT33 Bearing operates smoothly at speeds up to 6,000 rpm.
Pre-lubricated for ease of use, it requires minimal maintenance.
The temperature range of -30° to 110°C ensures versatility in various applications.
Industrial Uses of 3307 A-2RS1TN9/MT33 Bearing
In heavy-duty machinery like presses and gearboxes, 3307 A-2RS1TN9/MT33 Bearing handles combined radial and axial loads with ease. The double-row design and sealed construction make it suitable for environments where contamination is a concern.
Where Is 3307 A-2RS1TN9/MT33 Bearing Used?
You’ll often find 3307 A-2RS1TN9/MT33 Bearing in automotive applications, particularly in wheel hubs and transmissions. Its angular contact design ensures smooth performance even under varying load directions.
Built for Heavy-Duty Use: 3307 A-2RS1TN9/MT33 Bearing
3307 A-2RS1TN9/MT33 Bearing excels in industrial fans and pumps, where its chrome steel rings and stainless steel cage offer long-lasting durability. The P6 tolerance class ensures reliable precision in demanding conditions.
Automotive vs Aerospace: Applications of 3307 A-2RS1TN9/MT33 Bearing
In automotive systems, 3307 A-2RS1TN9/MT33 Bearing supports high-speed rotations in drivetrains. For aerospace, its sealed design and temperature resistance make it a fit for auxiliary equipment.
Perfect Fit for Automation: 3307 A-2RS1TN9/MT33 Bearing
3307 A-2RS1TN9/MT33 Bearing is a go-to choice for robotic arms and conveyor systems in automated production lines. The lubricated design reduces maintenance needs, ensuring consistent performance over time.
