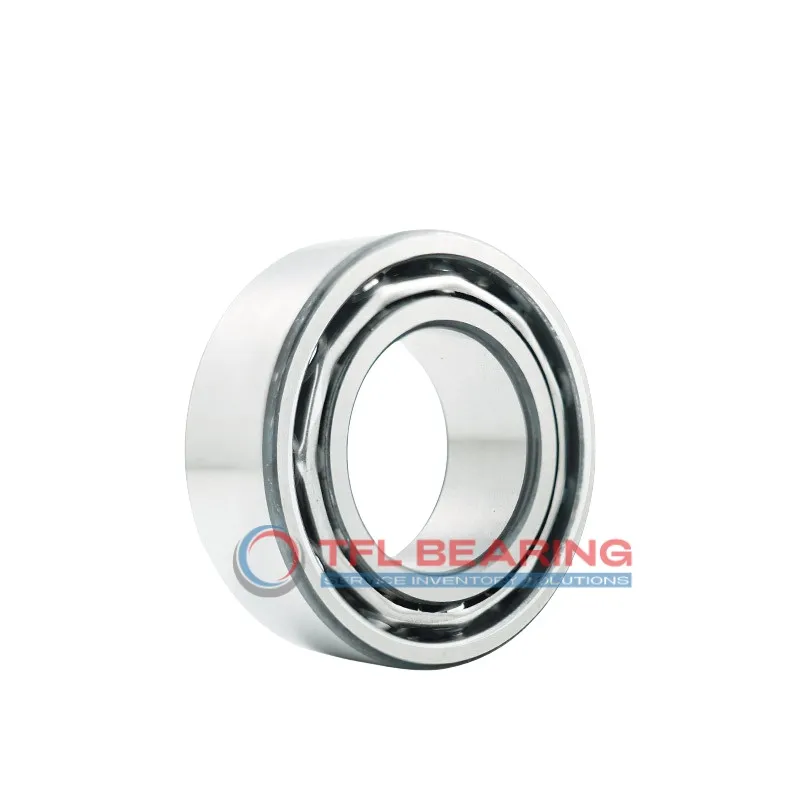

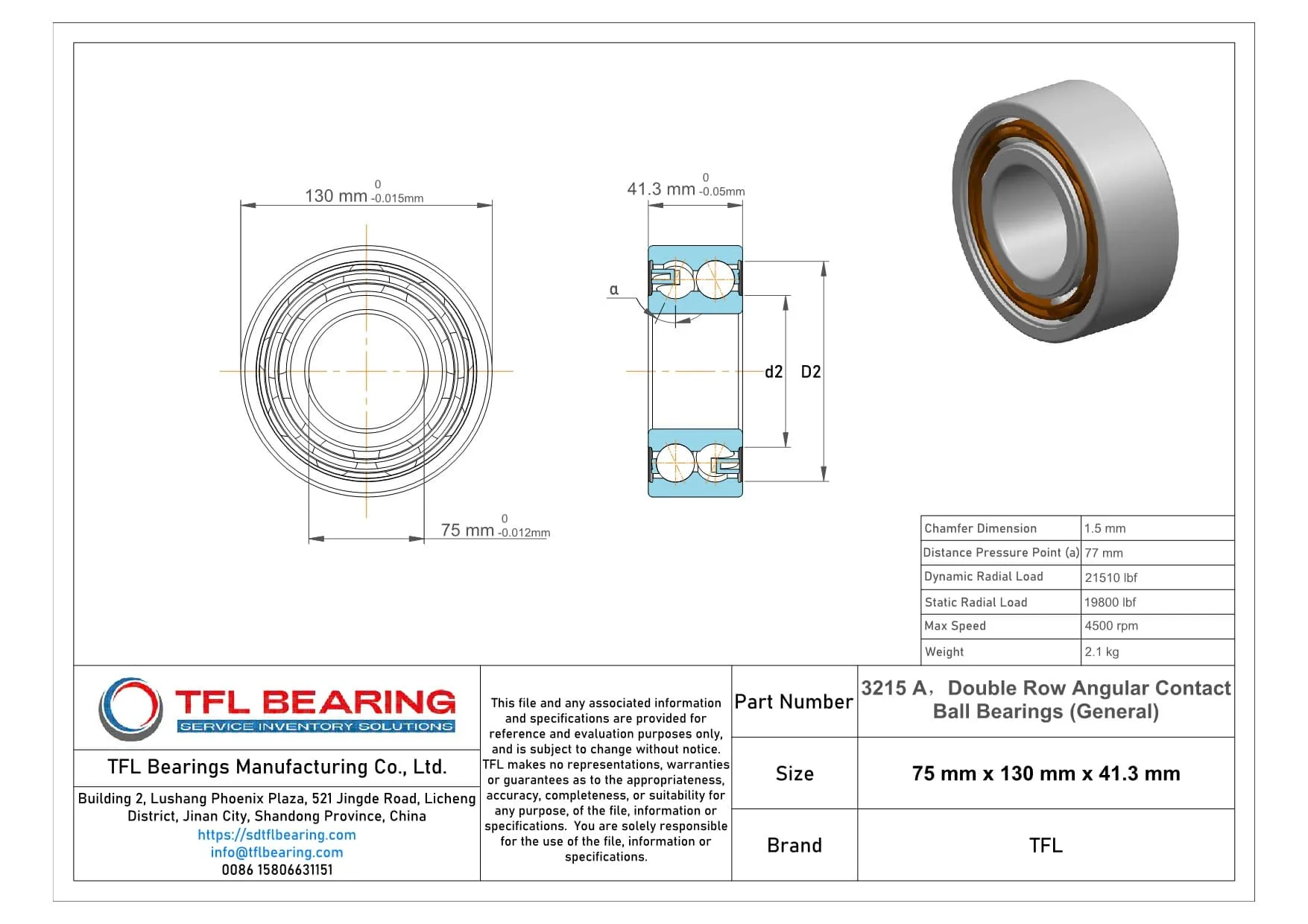

The 3215 A is a double-row angular contact ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 21510 lbf and operates smoothly at speeds up to 4500 RPM.
Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact loads are common.
Weighing 2.1kg, it offers a robust build for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.
The double-row design provides added stability, ideal for handling combined loads. Its precision P6 tolerance ensures consistent performance in demanding conditions.
"*" indicates required fields
Core Advantages of 3215 A Bearing
3215 A Bearing features a double-row angular contact design, ideal for handling combined radial and axial loads.
The chrome steel rings and balls enhance durability, while the stainless steel cage ensures smooth operation.
With a dynamic radial load capacity of 21510 lbf, 3215 A Bearing performs reliably in demanding conditions.
Its P6 tolerance class (ABEC-3) guarantees precision, making it suitable for high-accuracy applications.
3215 A Bearing operates efficiently within a temperature range of -30° to 110°C.
The open design allows for easy lubrication, ensuring consistent performance over time.
Industrial Uses of 3215 A Bearing
3215 A Bearing is commonly used in machine tools, where its double-row design handles combined radial and axial loads efficiently. The open seal type allows for easy lubrication, extending service life in demanding conditions.
In automotive applications, 3215 A Bearing supports wheel hubs and transmissions, providing stability under varying loads. Its P6 tolerance ensures precise alignment, crucial for smooth vehicle performance.
For automation systems, 3215 A Bearing is a reliable choice for robotic arms and conveyor belts. The chrome steel construction offers durability, while the stainless steel cage reduces friction during high-speed operations.
Medical imaging devices benefit from 3215 A Bearing’s consistent performance and low noise levels. The metric sizing makes it compatible with a range of European-designed equipment.
In household appliances like washing machines, 3215 A Bearing ensures quiet and efficient operation. Its temperature range suits both indoor and outdoor environments, making it versatile for various uses.
