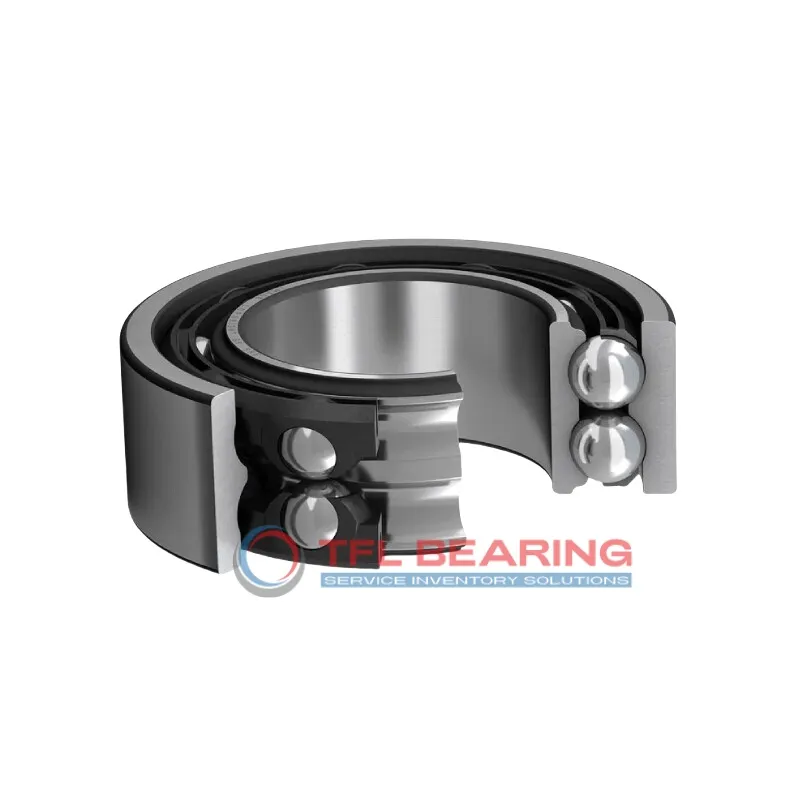

The 3212 ATN9 is a double-row angular contact ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 16875 lbf and operates smoothly at speeds up to 5600 RPM.
Its open design and nylon cage reduce friction, while the double-row construction enhances stability under angular loads. The bearing is pre-lubricated for easy use and works in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a reliable replacement option. Suitable for applications like pumps or gearboxes where combined radial and axial loads are present.
Weighing 1.2kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.
"*" indicates required fields
Performance Features of 3212 ATN9 Bearing
3212 ATN9 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 16875 lbf, making it suitable for heavy-duty applications.
The nylon cage ensures smooth operation and reduces friction, enhancing efficiency.
With a maximum speed of 5,600 rpm, it balances performance and durability.
How Does 3212 ATN9 Bearing Reduce Friction?
3212 ATN9 Bearing features a nylon cage that minimises friction during operation.
The chrome steel construction ensures smooth movement even under high radial loads.
Its precision design helps maintain consistent performance over time.
This makes it ideal for applications where low friction is essential.
Engineered for Precision: 3212 ATN9 Bearing
3212 ATN9 Bearing is designed for precise angular contact applications.
The double-row construction provides stability and even load distribution.
With a tolerance class of P6 (ABEC-3), it ensures high accuracy in operation.
Its chrome steel components contribute to reliable and long-lasting performance.
Why Choose 3212 ATN9 Bearing for Precision Tasks?
3212 ATN9 Bearing offers excellent precision with its P6 (ABEC-3) tolerance class.
The double-row angular contact design ensures stability in demanding applications.
Its chrome steel construction provides durability and consistent performance.
This makes it a reliable choice for tasks requiring high accuracy.
Industrial Uses of 3212 ATN9 Bearing
3212 ATN9 Bearing is commonly used in machine tools, where its double-row design provides stability under combined radial and axial loads. The open seal allows for easy lubrication, extending service life in demanding conditions.
Where Is 3212 ATN9 Bearing Used?
In automotive applications, 3212 ATN9 Bearing fits well in wheel hubs and transmissions, handling high-speed rotations smoothly. Its chrome steel construction ensures durability even under continuous stress.
Optimized for Performance: 3212 ATN9 Bearing
For automation systems, 3212 ATN9 Bearing supports robotic arms with precise angular contact capabilities. The nylon cage reduces friction, making it ideal for repetitive movements.
Automotive vs Aerospace: Applications of 3212 ATN9 Bearing
In automotive systems, 3212 ATN9 Bearing excels in gearboxes due to its load-bearing capacity. For aerospace, its P6 tolerance ensures reliability in precision instruments.
Practical Applications of 3212 ATN9 Bearing
3212 ATN9 Bearing works well in industrial fans, where its balanced design minimises vibration. The lubricated setup keeps it running smoothly in high-temperature environments.
