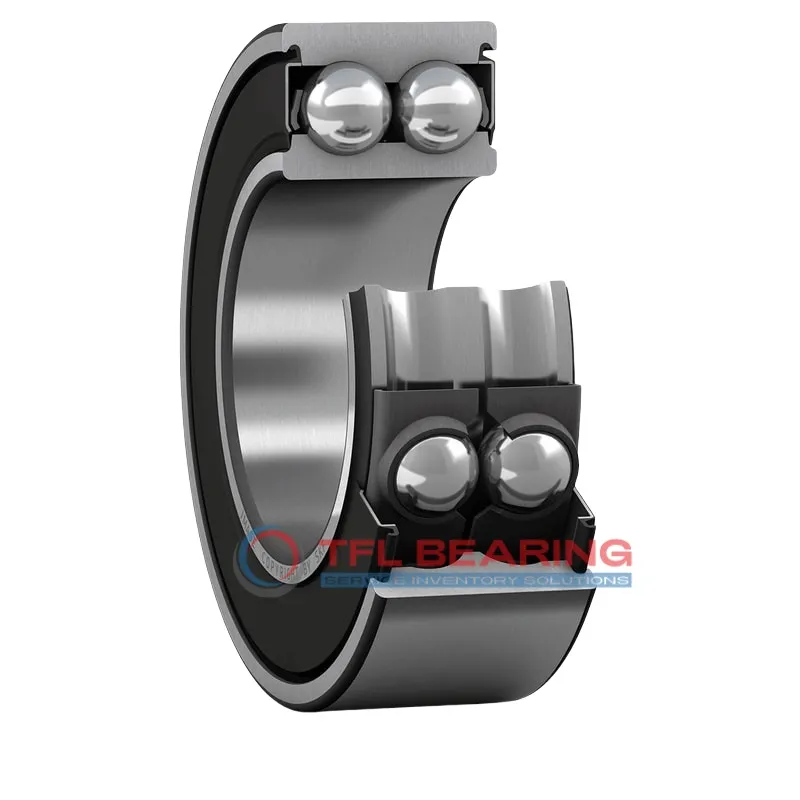

The 3212 A-2RS1TN9/MT33 is a double-row angular contact ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 16875 lbf and operates smoothly at speeds up to 4000 RPM.
Sealed on both sides, it keeps dirt out and lubrication in, extending its lifespan. The stainless steel cage adds durability, while the P6 tolerance ensures precise performance.
This bearing suits applications with combined radial and axial loads, like pumps or gearboxes. It works in temperatures from -30°C to 110°C and is interchangeable with SKF models.
Weighing 1.2kg, it’s a robust choice for industrial machinery. Compliant with RoHS and REACH standards, it’s both reliable and safe for various uses.
"*" indicates required fields
Performance Features of 3212 A-2RS1TN9/MT33 Bearing
3212 A-2RS1TN9/MT33 Bearing is built with double-row angular contact design, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strong resistance to wear, ensuring long-lasting performance.
The sealed design of 3212 A-2RS1TN9/MT33 Bearing protects against dust and moisture, making it suitable for harsh environments.
With a dynamic radial load capacity of 16,875 lbf, it delivers reliable operation under heavy loads.
3212 A-2RS1TN9/MT33 Bearing’s stainless steel cage maintains ball alignment, reducing friction and noise.
Its P6 tolerance class ensures precision, making it a dependable choice for various applications.
The lubricated design of 3212 A-2RS1TN9/MT33 Bearing minimises maintenance needs, saving time and costs.
It operates smoothly within a temperature range of -30° to 110°C, adapting to different working conditions.
Common Applications of 3212 A-2RS1TN9/MT33 Bearing
In industrial settings, 3212 A-2RS1TN9/MT33 Bearing is commonly used in machine tools and heavy-duty gearboxes, where its double-row design handles combined radial and axial loads efficiently. The sealed construction helps keep contaminants out, extending service life in harsh environments.
Where Is 3212 A-2RS1TN9/MT33 Bearing Used?
You’ll often find 3212 A-2RS1TN9/MT33 Bearing in automotive applications like wheel hubs and transmissions, where its angular contact design improves stability under varying loads. The P6 tolerance ensures precise alignment, reducing vibration and noise.
Ideal for Precision: 3212 A-2RS1TN9/MT33 Bearing
For medical imaging equipment, 3212 A-2RS1TN9/MT33 Bearing offers reliable performance thanks to its chrome steel rings and stainless steel cage. The lubricated seals ensure smooth operation, even during prolonged use in diagnostic machines.
Automotive vs Aerospace: Applications of 3212 A-2RS1TN9/MT33 Bearing
In automotive systems, 3212 A-2RS1TN9/MT33 Bearing supports high-load components like differentials, while in aerospace, its precision makes it suitable for actuator systems. The metric sizing and P6 class tolerance provide versatility across industries.
Practical Applications of 3212 A-2RS1TN9/MT33 Bearing
For automation and robotics, 3212 A-2RS1TN9/MT33 Bearing is a solid choice for robotic arms and CNC machinery, where its sealed design reduces maintenance needs. The angular contact feature ensures accurate movement under dynamic loads.
