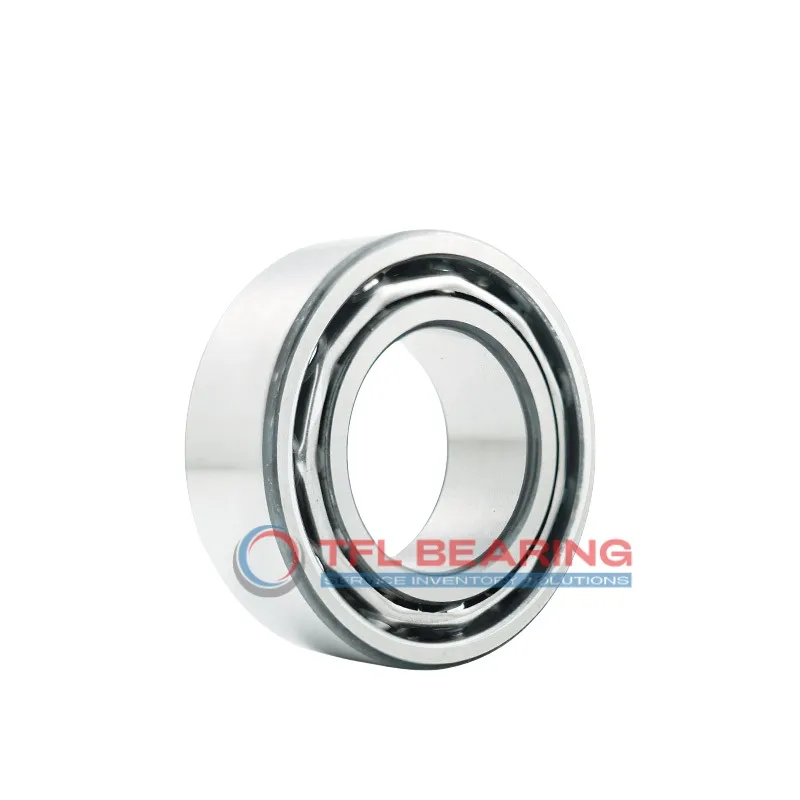

The 3211 A is a double-row angular contact ball bearing with a 55mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 13725 lbf and operates smoothly at speeds up to 6300 RPM.
Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a practical solution for replacements. Suitable for applications like pumps or gearboxes where angular contact loads are present.
Weighing 0.91kg, it balances strength and manageability. Compliant with RoHS and REACH standards for safe usage.
The double-row construction provides added stability, making it ideal for heavy-duty machinery. Its P6 tolerance class ensures consistent performance in precision applications.
Easy to maintain and built to last, this bearing is a dependable choice for industrial settings. The 1.5mm chamfer allows for smoother installation in tight spaces.
"*" indicates required fields
Performance Features of 3211 A Bearing
3211 A Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 13725 lbf, ensuring reliable performance in demanding conditions.
The stainless steel cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 6,300 rpm, it delivers a balance of durability and efficiency.
How Does 3211 A Bearing Reduce Friction?
3211 A Bearing features a double-row angular contact design, distributing loads evenly to minimise friction.
The precision-engineered chrome steel components ensure smooth operation even under heavy radial loads.
Its open seal type allows for easy lubrication, further reducing wear and maintenance needs.
With a P6 tolerance class, it provides consistent performance in high-precision applications.
Engineered for Precision: 3211 A Bearing
3211 A Bearing’s double-row construction enhances stability and load-bearing capacity.
The 55 mm bore diameter and 100 mm outer diameter make it suitable for various industrial uses.
Its temperature range of -30° to 110 °C ensures reliable operation in diverse environments.
The 33.3 mm width and tight tolerances contribute to its precision and durability.
Why Choose 3211 A Bearing for Precision Tasks?
3211 A Bearing’s angular contact design ensures accurate load distribution and reduced vibration.
The chrome steel materials resist wear, maintaining performance over extended periods.
With a static radial load of 11700 lbf, it handles demanding applications with ease.
Its ABEC-3 tolerance class guarantees high precision for critical tasks.
Designed for Durability: 3211 A Bearing
3211 A Bearing’s robust construction includes stainless steel cages for long-lasting performance.
The lubricated design reduces friction, ensuring smooth operation and minimal maintenance.
Its chamfer dimension of 1.5 mm facilitates easy installation and alignment.
Weighing 0.91 kg, it offers a sturdy yet manageable solution for industrial machinery.
Industrial Uses of 3211 A Bearing
3211 A Bearing is commonly used in machine tools, where its double-row design provides stability for high-precision operations. The open seal type allows for easy lubrication, extending its service life in demanding conditions.
In automotive applications, 3211 A Bearing supports wheel hubs and transmission systems, handling both radial and axial loads efficiently. Its chrome steel construction ensures durability even under continuous stress.
For automation equipment, 3211 A Bearing is a reliable choice for robotic arms and conveyor systems, thanks to its balanced load distribution. The stainless steel cage adds resistance to wear in high-speed scenarios.
Medical imaging devices benefit from 3211 A Bearing’s smooth operation and low noise levels. The P6 tolerance class ensures consistent performance in sensitive diagnostic equipment.
In household appliances like washing machines, 3211 A Bearing offers quiet and efficient rotation. Its metric sizing makes it compatible with a variety of European and Asian models.
"*" indicates required fields

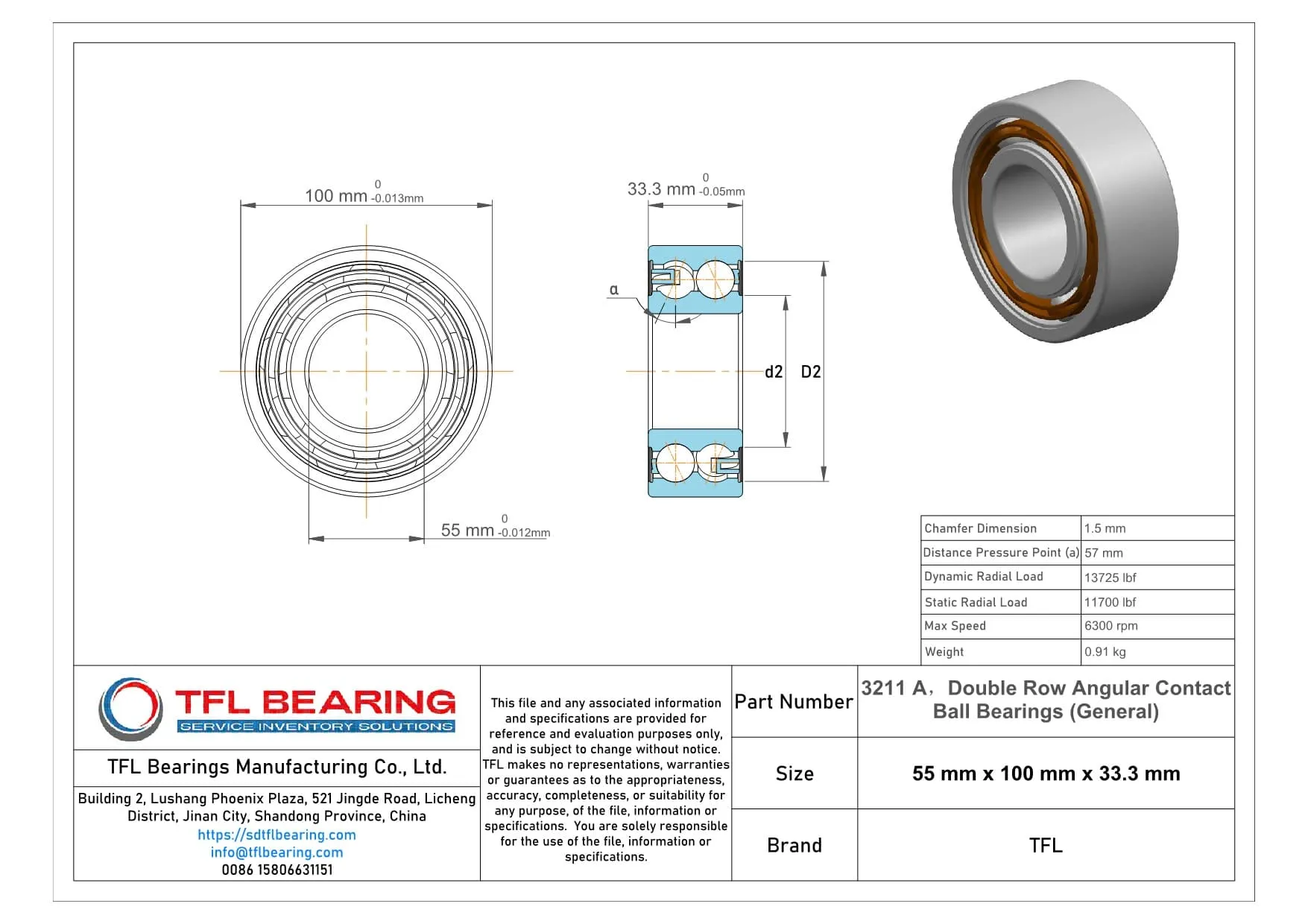

-3211-A-Drawing.webp)
