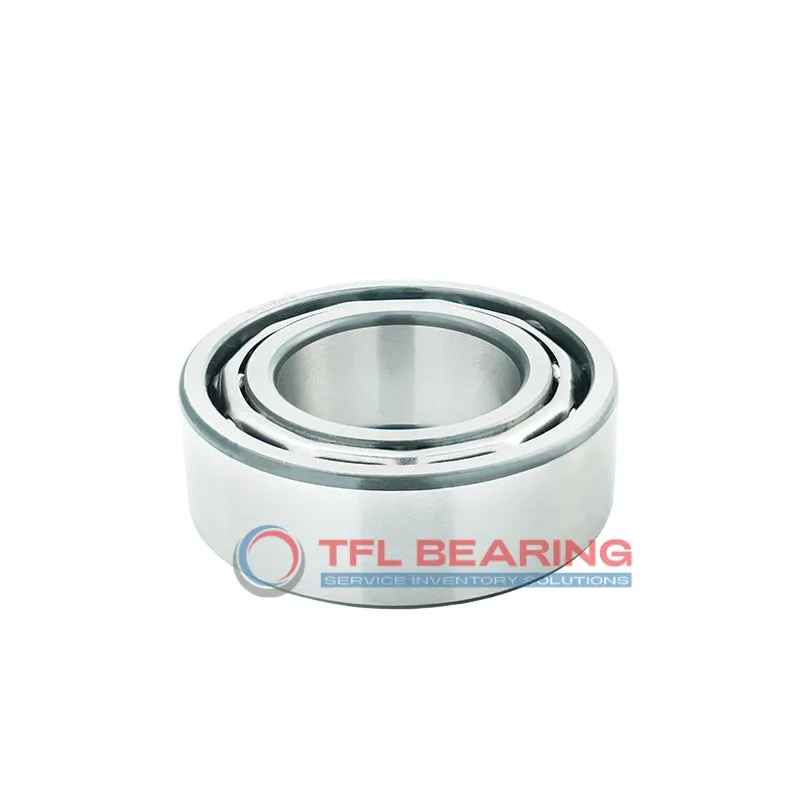

The 3206 A is a double-row angular contact ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6862 lbf and operates smoothly at speeds up to 10,000 RPM.
Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact loads are common.
Weighing 0.29kg, it offers a balance of strength and lightness. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Performance Features of 3206 A Bearing
3206 A Bearing is built with chrome steel rings and balls, offering excellent resistance to radial loads.
Its dynamic radial load capacity reaches 6862 lbf, ensuring reliable performance in various applications.
The stainless steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 10,000 rpm, it delivers both durability and efficiency.
How Does 3206 A Bearing Reduce Friction?
3206 A Bearing features a double-row angular contact design, distributing loads evenly for smoother operation.
The precision-engineered chrome steel balls and rings minimise friction, enhancing performance.
Its open seal type allows for easy lubrication, further reducing wear and tear.
This design ensures quiet and efficient operation even at high speeds.
Designed for Durability: 3206 A Bearing
3206 A Bearing’s chrome steel construction provides strong resistance to wear and corrosion.
The double-row design increases load capacity, making it suitable for heavy-duty applications.
With a temperature range of -30° to 110°C, it performs reliably in various environments.
Its P6 tolerance class ensures consistent precision and long service life.
Steel vs Ceramic Bearings: Strengths of 3206 A Bearing
3206 A Bearing uses chrome steel for its rings and balls, offering a balance of strength and affordability.
This material choice ensures high load capacity and resistance to wear in demanding conditions.
The stainless steel cage adds durability, making it a reliable choice for industrial applications.
Its design prioritises performance and longevity without the higher cost of ceramic alternatives.
Why Choose 3206 A Bearing for Precision Tasks?
3206 A Bearing’s P6 tolerance class ensures high precision, ideal for accurate machinery.
The double-row angular contact design provides stability, reducing vibration during operation.
Its chrome steel components offer consistent performance under radial and axial loads.
With easy lubrication and low maintenance needs, it is a practical choice for precision applications.
Industrial Uses of 3206 A Bearing
3206 A Bearing is commonly used in machine tools, where its double-row design handles combined radial and axial loads efficiently. The open seal type allows for easy lubrication, extending service life in demanding conditions.
In automotive applications, 3206 A Bearing supports wheel hubs and transmissions, providing stability under varying loads. Its metric dimensions ensure compatibility with a range of vehicle designs, from compact cars to light trucks.
For automation systems, 3206 A Bearing is a reliable choice for robotic arms and conveyor belts, thanks to its high-speed capability. The chrome steel construction ensures durability even in continuous operation environments.
Medical imaging devices benefit from 3206 A Bearing’s precision, as it maintains smooth rotation in scanners and diagnostic equipment. The stainless steel cage adds corrosion resistance, ideal for sterile environments.
In household appliances like washing machines, 3206 A Bearing reduces vibration and noise during spin cycles. Its balanced design ensures quiet operation, making it suitable for residential use.
