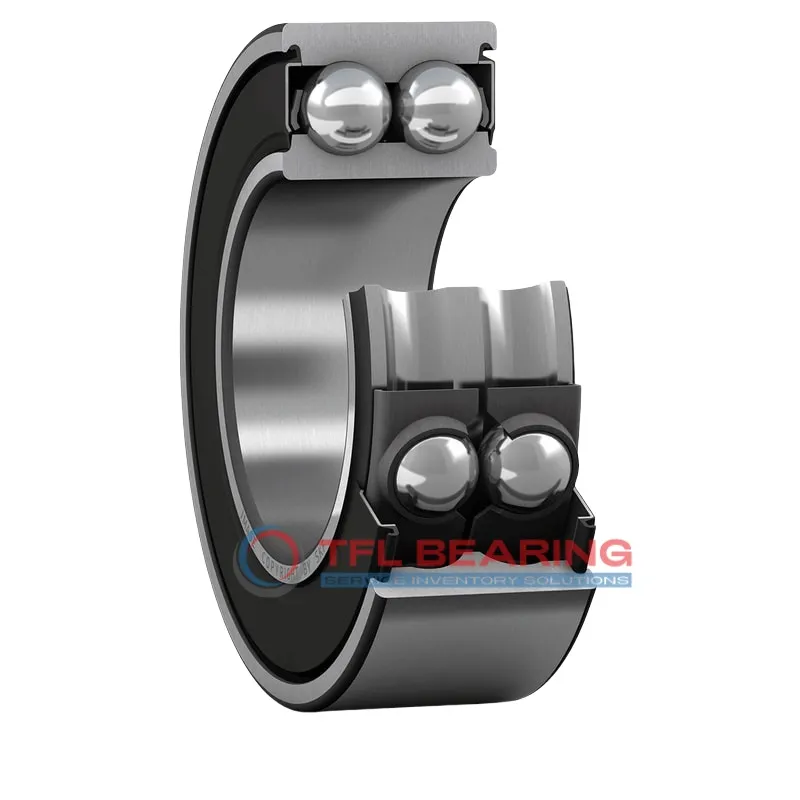

The 3203 A-2RS1TN9/MT33 is a double-row angular contact ball bearing with a compact size of 17mm bore and 40mm outer diameter. Made from chrome steel, it offers a good balance of strength and durability.
It handles radial loads up to 3218 lbf and can spin at speeds up to 12,000 RPM, making it suitable for high-speed applications. The sealed design keeps lubrication in and contaminants out for reliable performance.
This bearing is pre-lubricated and works in temperatures from -30°C to 110°C. Its stainless steel cage ensures smooth operation over time. It meets P6 tolerance standards for precision.
Ideal for machinery requiring combined radial and axial load support, such as pumps or small gearboxes. Weighing just 0.096kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards.
"*" indicates required fields
Performance Features of 3203 A-2RS1TN9/MT33 Bearing
3203 A-2RS1TN9/MT33 Bearing is built with chrome steel rings and balls, offering excellent resistance to radial loads.
Its dynamic radial load capacity of 3218 lbf ensures reliable performance in various applications.
The sealed design protects against contaminants, making it suitable for harsh environments.
With a maximum speed of 12,000 rpm, it delivers both durability and efficiency.
How Is 3203 A-2RS1TN9/MT33 Bearing Engineered for Reliability?
3203 A-2RS1TN9/MT33 Bearing features a double-row angular contact design, providing stability under heavy loads.
The stainless steel cage maintains ball alignment, reducing friction and wear.
Its P6 tolerance class ensures precision, making it ideal for high-performance machinery.
The lubricated design further enhances its smooth operation and longevity.
Built for Durability: 3203 A-2RS1TN9/MT33 Bearing
3203 A-2RS1TN9/MT33 Bearing’s chrome steel construction resists wear, even in demanding conditions.
The sealed design prevents dust and moisture ingress, extending its service life.
With a static radial load capacity of 1980 lbf, it handles heavy-duty applications with ease.
Its compact size and precision make it a versatile choice for various industries.
Steel vs Ceramic Bearings: Strengths of 3203 A-2RS1TN9/MT33 Bearing
3203 A-2RS1TN9/MT33 Bearing uses chrome steel for its rings and balls, ensuring strength and durability.
The material choice provides excellent load-bearing capacity and resistance to wear.
Unlike ceramic bearings, it offers a cost-effective solution without compromising performance.
Its sealed design and lubrication further enhance its reliability in diverse applications.
Common Applications of 3203 A-2RS1TN9/MT33 Bearing
In industrial machinery, 3203 A-2RS1TN9/MT33 Bearing handles angular contact loads effectively, such as in conveyor systems and machine tools. Its sealed design keeps contaminants out, ensuring longer service life in dusty environments.
Where Is 3203 A-2RS1TN9/MT33 Bearing Used?
You’ll often find 3203 A-2RS1TN9/MT33 Bearing in automotive applications like gearboxes and wheel hubs, where its double-row design provides stability. The chrome steel construction also makes it resistant to wear under high-speed conditions.
Ideal for Precision: 3203 A-2RS1TN9/MT33 Bearing
For medical devices like imaging equipment, 3203 A-2RS1TN9/MT33 Bearing offers reliable performance due to its P6 tolerance class. The stainless steel cage ensures smooth operation, even in demanding scenarios.
Automotive vs Aerospace: Applications of 3203 A-2RS1TN9/MT33 Bearing
In automotive systems, 3203 A-2RS1TN9/MT33 Bearing supports high radial loads, while in aerospace, its precision makes it suitable for control mechanisms. The lubricated design reduces friction, enhancing efficiency in both fields.
