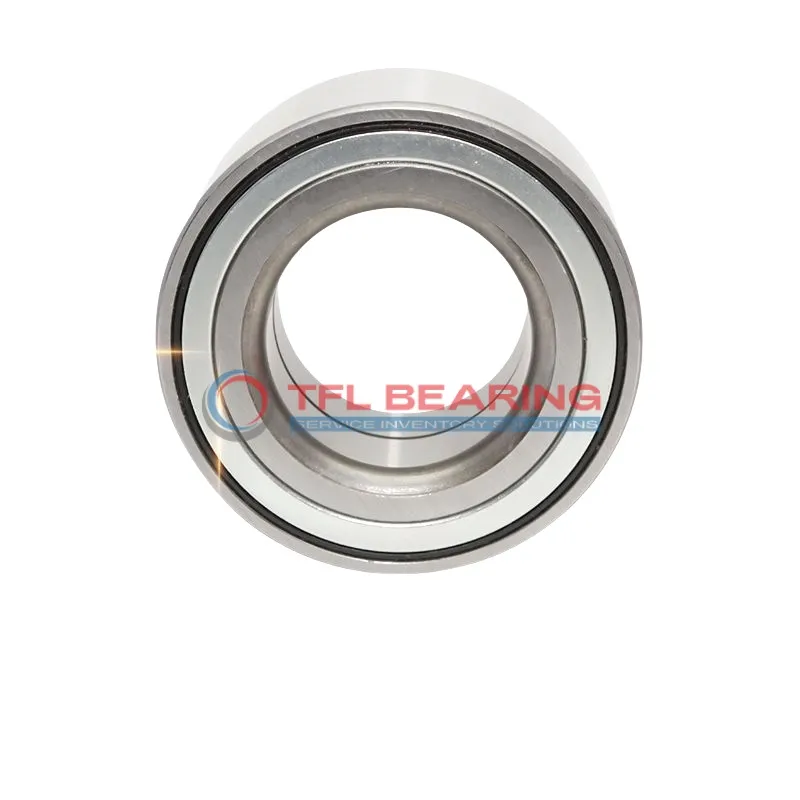

The 3201 A-2ZTN9/MT33 is a double-row angular contact ball bearing with a 12mm bore and 32mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2272 lbf and operates smoothly at speeds up to 22,000 RPM.
Its shielded design keeps dirt out while the stainless steel cage ensures durability. The bearing comes pre-lubricated and performs well in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Suitable for applications like pumps or small machinery where angular contact loads are needed.
Weighing just 0.058kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets P6 tolerance class for precision.
"*" indicates required fields
Performance Features of 3201 A-2ZTN9/MT33 Bearing
3201 A-2ZTN9/MT33 Bearing features a double-row angular contact design, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide durability, while the stainless steel cage ensures smooth operation.
The shielded design of 3201 A-2ZTN9/MT33 Bearing protects against contaminants, extending its service life.
With a dynamic radial load capacity of 2272 lbf, it performs reliably in demanding applications.
3201 A-2ZTN9/MT33 Bearing operates efficiently at speeds up to 22,000 rpm, thanks to its precision engineering.
Its P6 tolerance class ensures consistent performance, making it suitable for high-precision tasks.
The lubricated design of 3201 A-2ZTN9/MT33 Bearing reduces maintenance needs, saving time and costs.
It functions well in temperatures ranging from -30° to 110°C, adapting to various working conditions.
Industrial Uses of 3201 A-2ZTN9/MT33 Bearing
This bearing is commonly used in machine tools, where its double-row design handles combined radial and axial loads efficiently. The shielded seals help keep contaminants out, extending service life in dusty workshops.
Where Is 3201 A-2ZTN9/MT33 Bearing Used?
You’ll find it in automotive electric motors, supporting smooth rotation under angular loads. Its chrome steel construction ensures durability even in high-temperature engine compartments.
Built for Heavy-Duty Use: 3201 A-2ZTN9/MT33 Bearing
Ideal for conveyor systems in packaging plants, where constant movement demands reliable performance. The P6 tolerance class provides the precision needed for consistent operation.
Medical vs Industrial: Where 3201 A-2ZTN9/MT33 Bearing Excels
While suitable for dental drill handpieces, it’s equally at home in food processing equipment. The stainless steel cage resists corrosion in both sterile and washdown environments.
Practical Applications of 3201 A-2ZTN9/MT33 Bearing
In office printers, this bearing quietly supports paper feed mechanisms with minimal maintenance. The lubricated design ensures smooth operation through thousands of print cycles.
