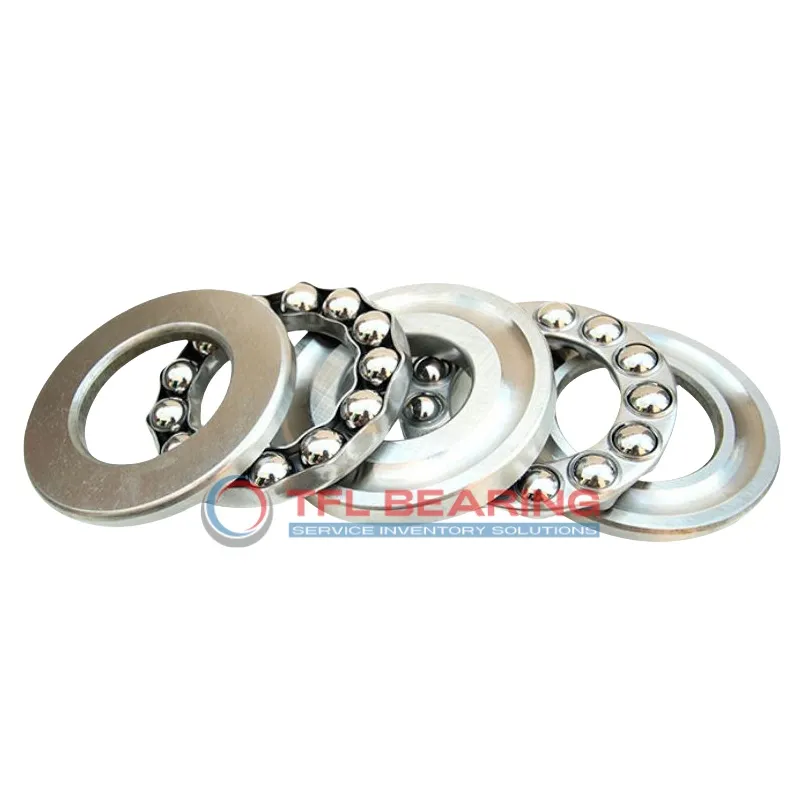

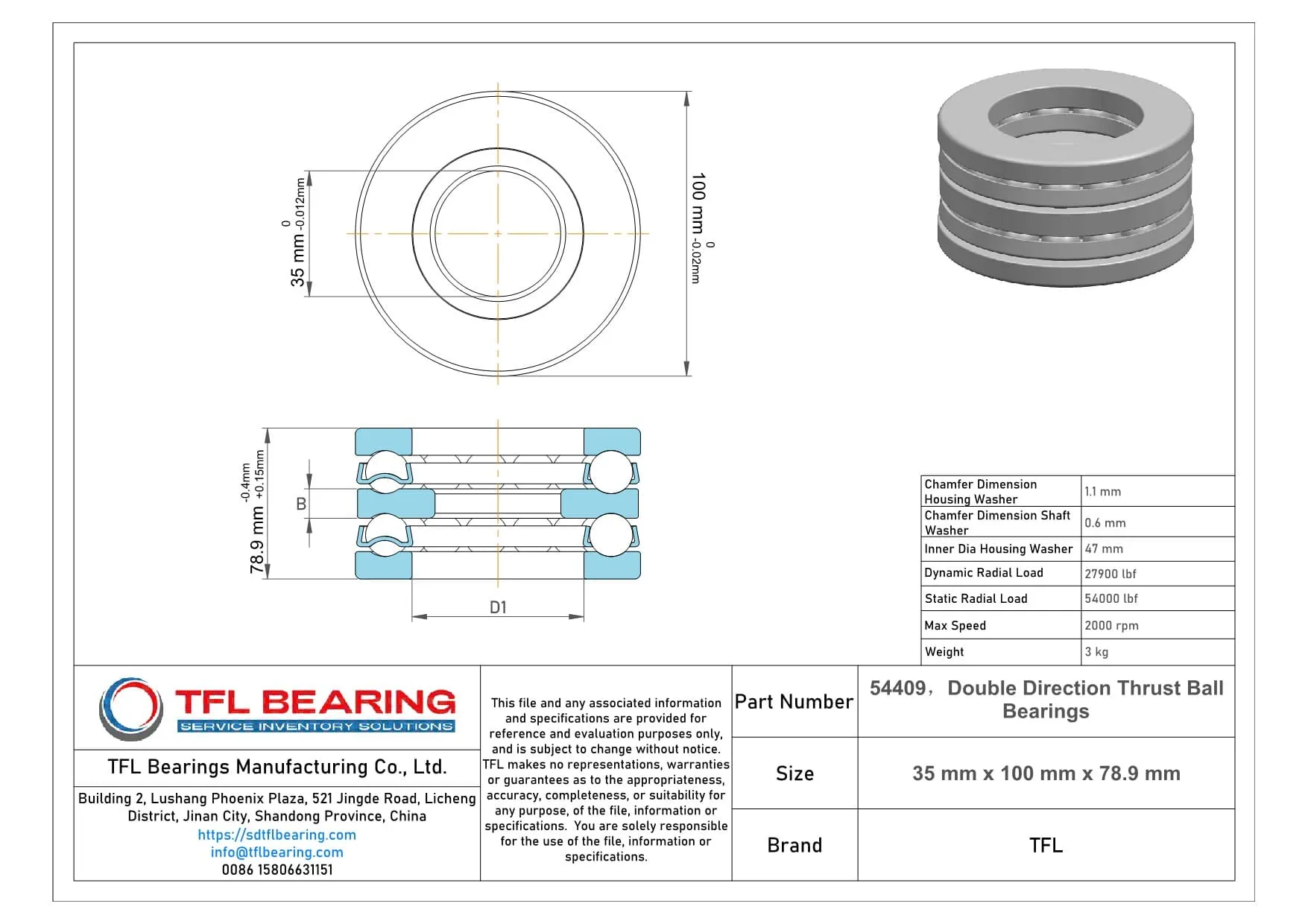

The 54409 is a double-direction thrust ball bearing measuring 35mm in bore and 100mm in outer diameter, with a sturdy chrome steel construction. It manages thrust loads up to 27900 lbf and operates at speeds up to 2000 RPM.
Its open design simplifies maintenance, and the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial presses or large gear systems where high thrust loads are expected.
Weighing 3kg, it’s built to handle demanding conditions while meeting RoHS and REACH standards for safety.
"*" indicates required fields
How Does 54409 Bearing Handle Heavy Loads?
54409 Bearing is built with chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 27,900 lbf, making it suitable for heavy-duty applications.
The stainless steel cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 2,000 rpm, it delivers reliable performance under demanding conditions.
54409 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open seal design allows for easy maintenance and inspection.
The precise dimensions and tolerances ensure smooth integration into various machinery.
This bearing is RoHS and REACH compliant, meeting environmental standards.
Industrial Uses of 54409 Bearing
54409 Bearing is commonly used in heavy machinery like hydraulic presses and large conveyor systems, where its high thrust load capacity handles demanding axial forces. The open seal design simplifies lubrication, ideal for environments with frequent maintenance needs.
In automotive applications, 54409 Bearing supports heavy components such as truck transmissions and differential systems. Its chrome steel construction ensures longevity even under constant stress and varying temperatures.
For industrial automation, 54409 Bearing fits well in robotic assembly lines, providing stability for repetitive high-load movements. The stainless steel cage adds durability, reducing wear over time.
Medical imaging devices benefit from 54409 Bearing’s precise tolerances, ensuring smooth operation in CT scanners and MRI machines. The metric sizing aligns with standard medical equipment specifications.
Where Is 54409 Bearing Used?
You’ll often spot 54409 Bearing in wind turbine yaw systems, where its robust design handles both axial and radial loads. The wide temperature range makes it suitable for outdoor installations.
In construction equipment like cranes, 54409 Bearing’s static thrust load capacity supports heavy lifting operations. The 35 mm bore diameter fits standard shaft sizes in most industrial gearboxes.
Built for Heavy-Duty Use: 54409 Bearing
54409 Bearing excels in mining equipment, enduring harsh conditions with its chrome steel rings and stainless steel cage. The 100 mm outer diameter provides ample surface area for load distribution.
For marine applications, 54409 Bearing’s corrosion-resistant materials perform well in ship steering systems. Its 2,000 rpm max speed suits moderate-speed machinery without compromising reliability.
Automotive vs Aerospace: Applications of 54409 Bearing
In automotive settings, 54409 Bearing handles gearbox loads in commercial vehicles, while aerospace uses focus on auxiliary aircraft systems. The 54000 lbf static load rating ensures safety in both sectors.
The bearing’s 78.9 mm width offers stability in industrial presses, contrasting with lighter uses in packaging machinery. Its versatility stems from balanced performance across different load types.
