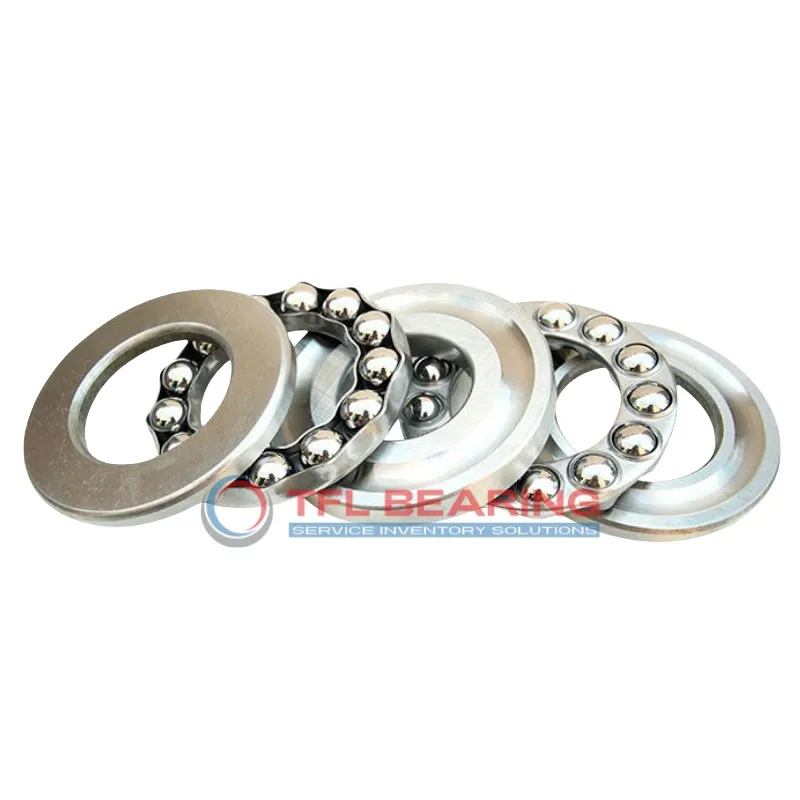

The 54309 is a double-direction thrust ball bearing with a 35mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages thrust loads up to 17122 lbf and operates at speeds up to 2800 RPM.
Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial presses or large gear systems where high thrust loads are expected.
Weighing 1.6kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Why Choose 54309 Bearing for Precision Tasks?
54309 Bearing features chrome steel rings and balls, ensuring high precision and durability in thrust applications.
Its dynamic thrust load capacity of 17122 lbf makes it suitable for demanding industrial environments.
The stainless steel cage maintains ball alignment, reducing friction and enhancing performance.
With a maximum speed of 2,800 rpm, it offers reliable operation under various conditions.
54309 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open seal design allows for easy maintenance and inspection.

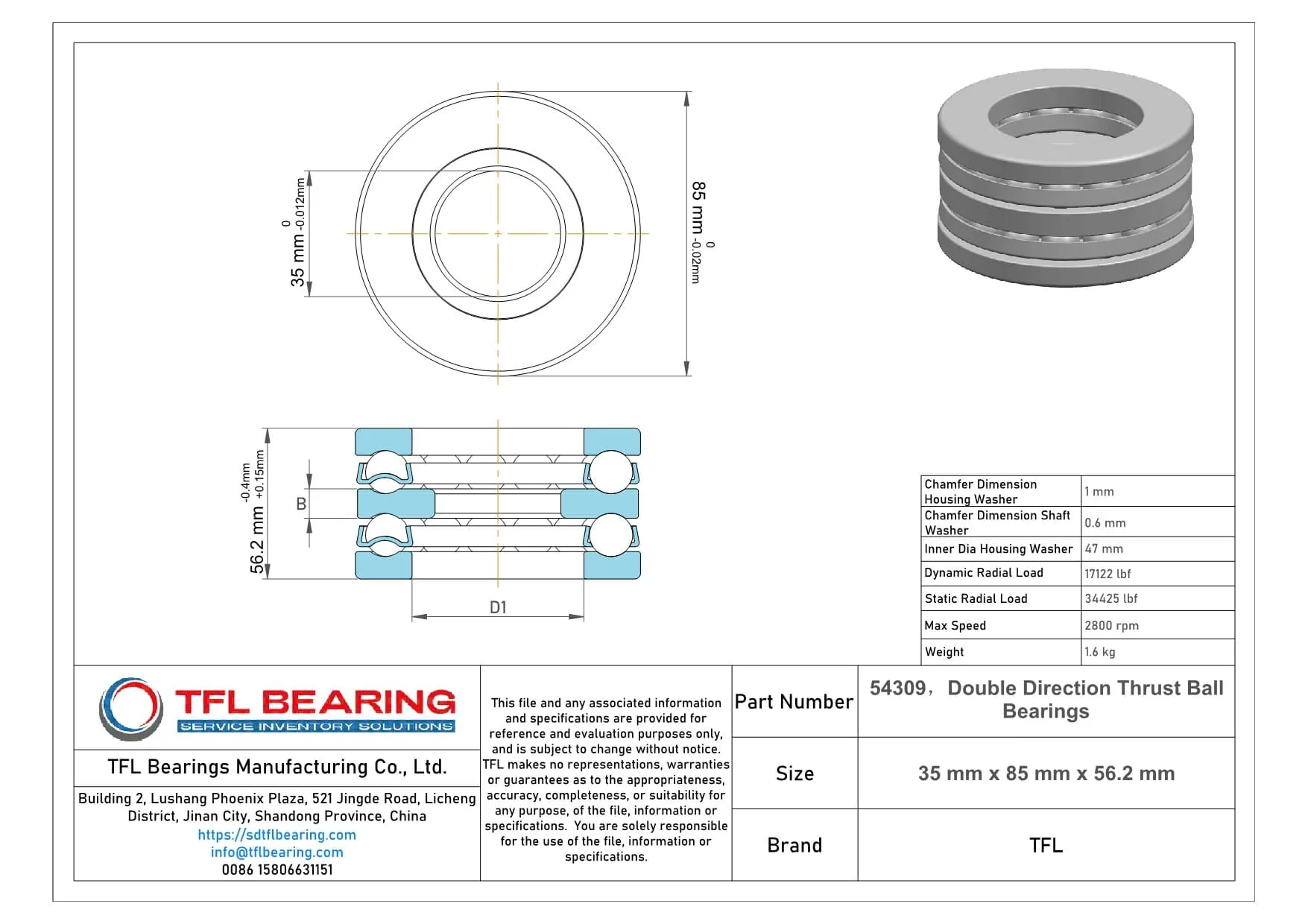

The precise dimensions of 35 mm x 85 mm x 56.2 mm ensure compatibility with standard systems.
This bearing is RoHS and REACH compliant, meeting environmental and safety standards.
Industrial Uses of 54309 Bearing
54309 Bearing is commonly used in heavy machinery like hydraulic presses and large conveyor systems, where its high thrust load capacity handles demanding axial forces. The open seal design simplifies lubrication, extending service life in dusty industrial environments.
How Does 54309 Bearing Improve Performance?
In automotive applications, 54309 Bearing stabilises gearbox components, reducing friction during high-torque shifts. Its chrome steel construction withstands prolonged stress, making it suitable for commercial vehicle transmissions.
Built for Heavy-Duty Use: 54309 Bearing
This bearing excels in construction equipment such as crane slewing rings, where its 34kN static load rating ensures reliability. The stainless steel cage prevents corrosion in outdoor or humid operating conditions.
Medical vs Industrial: Where 54309 Bearing Excels
While 54309 Bearing isn’t typically used in medical devices, its precision makes it ideal for industrial mixers and packaging lines. The tight width tolerance (±0.4mm) maintains alignment in high-vibration settings.
Automotive vs Aerospace: Applications of 54309 Bearing
54309 Bearing frequently appears in truck clutch assemblies rather than aircraft due to its weight. However, its temperature range (-30°C to 110°C) covers most ground vehicle operating conditions.
