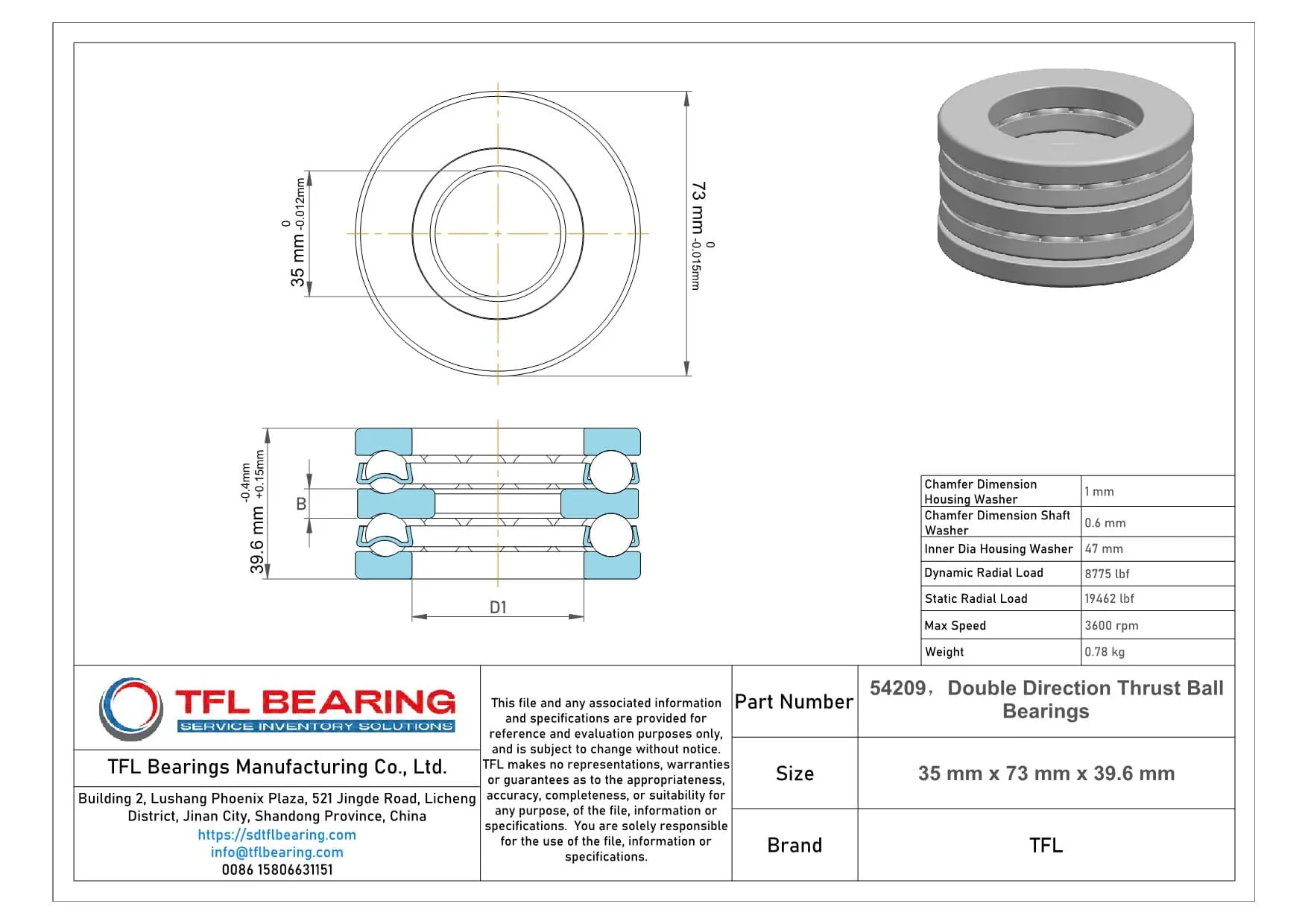

The 54209 is a double-direction thrust ball bearing with a 35mm bore and 73mm outer diameter, crafted from sturdy chrome steel. It manages thrust loads up to 8775 lbf and operates smoothly at speeds up to 3600 RPM.
Its open design simplifies maintenance, and the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial gearboxes or machinery with significant thrust loads.
Weighing 0.78kg, it balances strength and portability. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
How Does 54209 Bearing Handle Heavy Loads?
54209 Bearing is built with chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 8775 lbf, making it suitable for demanding industrial applications.
The stainless steel cage ensures proper ball alignment, reducing friction and enhancing durability.
With a maximum speed of 3,600 rpm, it delivers reliable performance under heavy-duty conditions.
Why Choose 54209 Bearing for Precision Tasks?
54209 Bearing features precise dimensions with a bore diameter of 35 mm and outer diameter of 73 mm.
Its chrome steel construction provides excellent wear resistance, ensuring long-term accuracy.
The open seal design allows for easy inspection and maintenance, keeping operations smooth.
With a static thrust load capacity of 19462 lbf, it handles precision tasks with confidence.
Engineered for Reliability: 54209 Bearing
54209 Bearing is designed to withstand temperatures from -30° to 110°C, ensuring consistent performance.
Its chrome steel components resist corrosion, making it ideal for harsh environments.
The bearing’s width tolerance of +0.15mm to -0.4mm ensures a secure fit in various applications.
Weighing just 0.78 kg, it combines strength with ease of handling.
Essential Roles of 54209 Bearing
54209 Bearing is commonly used in industrial settings, especially for heavy machinery like presses and lifting equipment, where its robust design handles significant axial loads. The open seal type ensures easy lubrication access, extending service life in demanding conditions.
Where Is 54209 Bearing Used?
In automotive applications, 54209 Bearing fits well in gearboxes and drivetrains, providing reliable performance under high thrust forces. Its metric dimensions make it a versatile option for various vehicle designs.
Built for Heavy-Duty Use: 54209 Bearing
For automation systems, 54209 Bearing supports robotic arms and assembly lines, where its chrome steel construction ensures durability. The stainless steel cage adds extra resistance to wear in continuous operation.
Medical vs Industrial: Where 54209 Bearing Excels
In medical devices like diagnostic scanners, 54209 Bearing offers smooth operation due to its precise tolerances. Meanwhile, in industrial pumps, its high load capacity makes it a dependable choice for long-term use.
