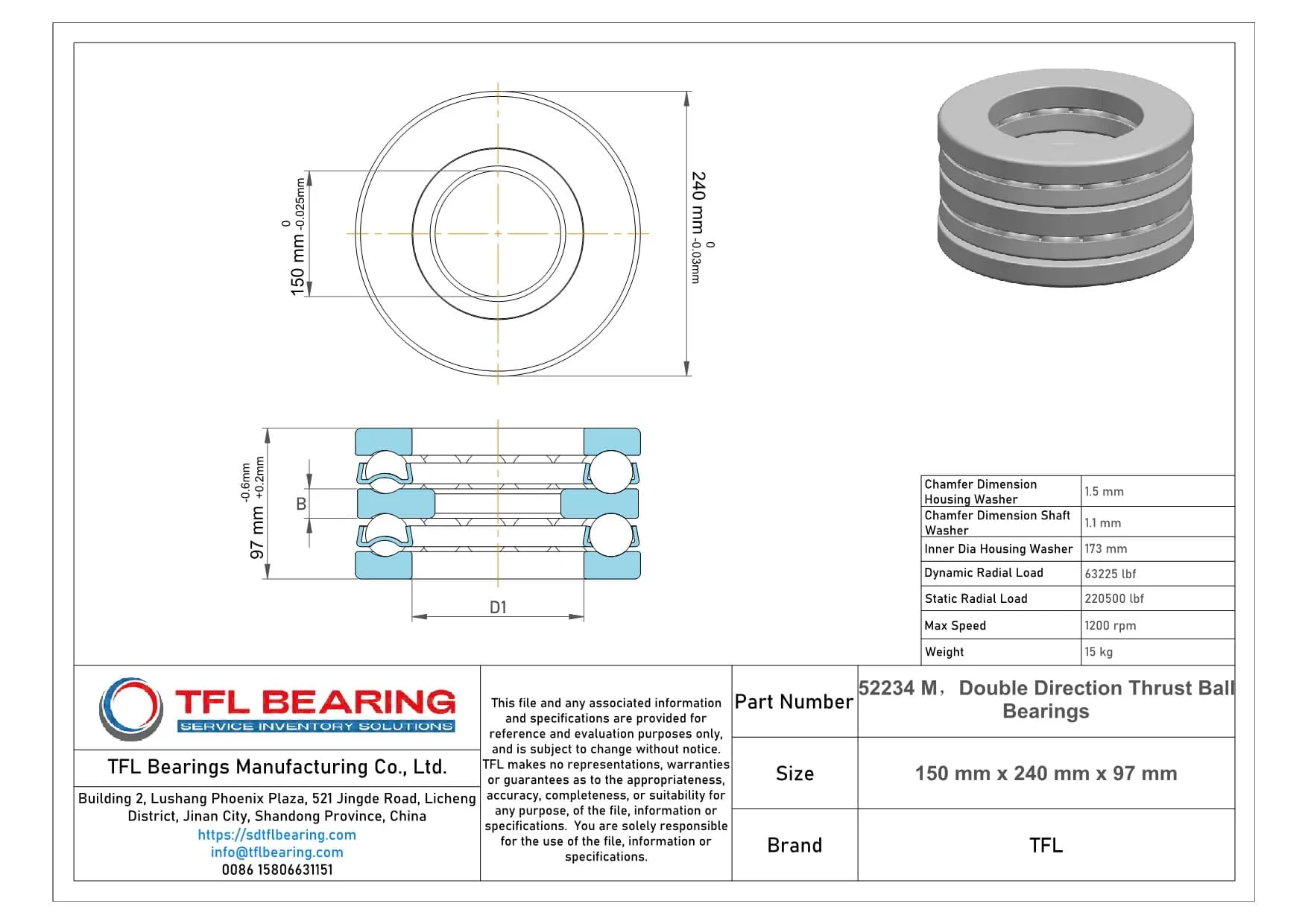

The 52234 M is a robust double-direction thrust ball bearing with a 150mm bore and 240mm outer diameter, crafted from high-quality chrome steel. It manages heavy thrust loads up to 63225 lbf and operates smoothly at speeds up to 1200 RPM.
Its open design simplifies maintenance, while the brass cage enhances durability and reduces friction. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial presses or large gearboxes where substantial thrust loads are present.
Weighing 15kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards for safety and environmental care.
"*" indicates required fields
Why Choose 52234 M Bearing for Precision Tasks?
52234 M Bearing is crafted with chrome steel rings and balls, ensuring precise performance under heavy thrust loads.
Its dynamic thrust load capacity of 63225 lbf makes it suitable for demanding industrial applications.
The brass cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a maximum speed of 1,200 rpm, it offers a balance of durability and controlled motion.
52234 M Bearing operates efficiently within a temperature range of -30° to 110°C, adapting to various working conditions.
Its open seal design allows for easy inspection and maintenance, ensuring long-term reliability.
Industrial Uses of 52234 M Bearing
52234 M Bearing is commonly used in heavy machinery like hydraulic presses and large conveyor systems, where its high thrust load capacity handles substantial axial forces. The brass cage offers smooth operation and reduces friction in continuous-use scenarios.
In wind turbine applications, 52234 M Bearing supports the yaw system, ensuring stable rotation under varying wind loads. Its chrome steel construction provides long-term durability in outdoor environments.
For industrial gearboxes, 52234 M Bearing’s metric sizing and open design simplify installation and maintenance. The generous load ratings make it suitable for high-torque transmission systems.
Automotive vs Aerospace: Applications of 52234 M Bearing
In automotive settings, 52234 M Bearing can be found in heavy-duty truck transmissions, where its static load capacity handles shifting forces. The temperature range also suits engine compartment conditions.
Aerospace applications benefit from 52234 M Bearing’s precision in auxiliary flight control systems. While not for primary flight surfaces, it reliably supports secondary hydraulic mechanisms.
Built for Heavy-Duty Use: 52234 M Bearing
52234 M Bearing excels in steel mill equipment like rolling mills, where its 220,500 lbf static load rating handles extreme pressures. The 150mm bore accommodates substantial shaft sizes.
In marine propulsion systems, 52234 M Bearing withstands constant thrust from propeller shafts. The corrosion-resistant materials perform well in saltwater environments.
What Makes 52234 M Bearing a Preferred Choice?
52234 M Bearing’s combination of brass cage and chrome steel components balances durability with smooth rotation for crane slewing rings. The 1.5mm chamfer eases installation in heavy structures.
For mining equipment, 52234 M Bearing’s 15kg robust construction handles vibration in rock crushers. The 1,200 rpm speed rating suits most heavy processing machinery.
