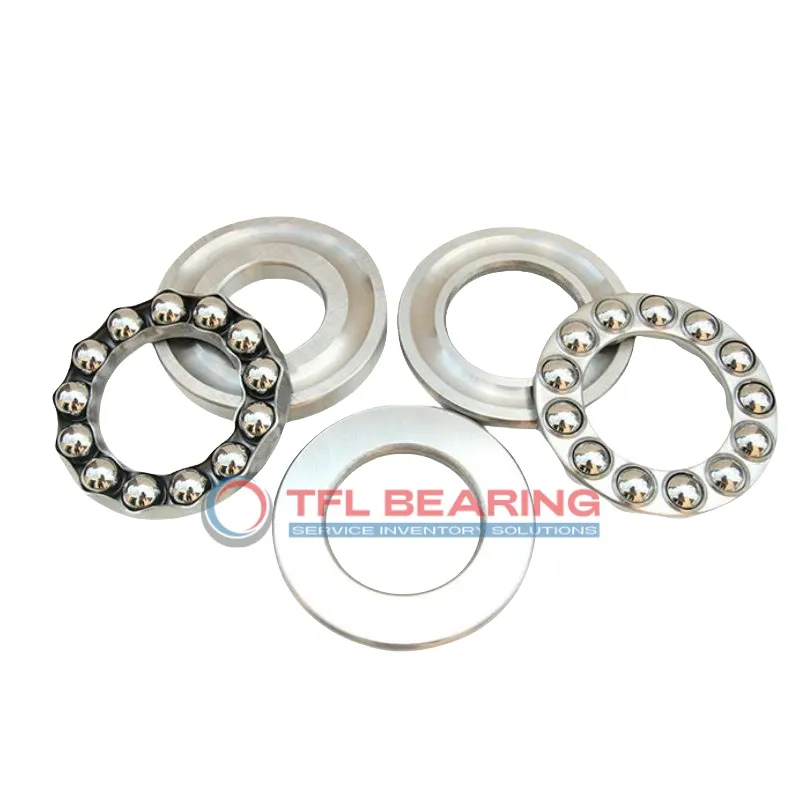

The 52224 is a double-direction thrust ball bearing with a 100mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages thrust loads up to 28575 lbf and operates smoothly at speeds up to 1700 RPM.
Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial gearboxes or large machinery where high thrust loads are present.
Weighing 5.25kg, it’s built to handle substantial forces while maintaining stability. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
How Does 52224 Bearing Handle Heavy Loads?
52224 Bearing is built with chrome steel rings and balls, offering robust performance under heavy thrust loads.
Its dynamic thrust load capacity reaches 28,575 lbf, making it suitable for demanding industrial applications.
The stainless steel cage ensures proper ball alignment, reducing friction and enhancing durability.
With a maximum speed of 1,700 rpm, it delivers reliable operation in high-load scenarios.
Built for Reliability: 52224 Bearing

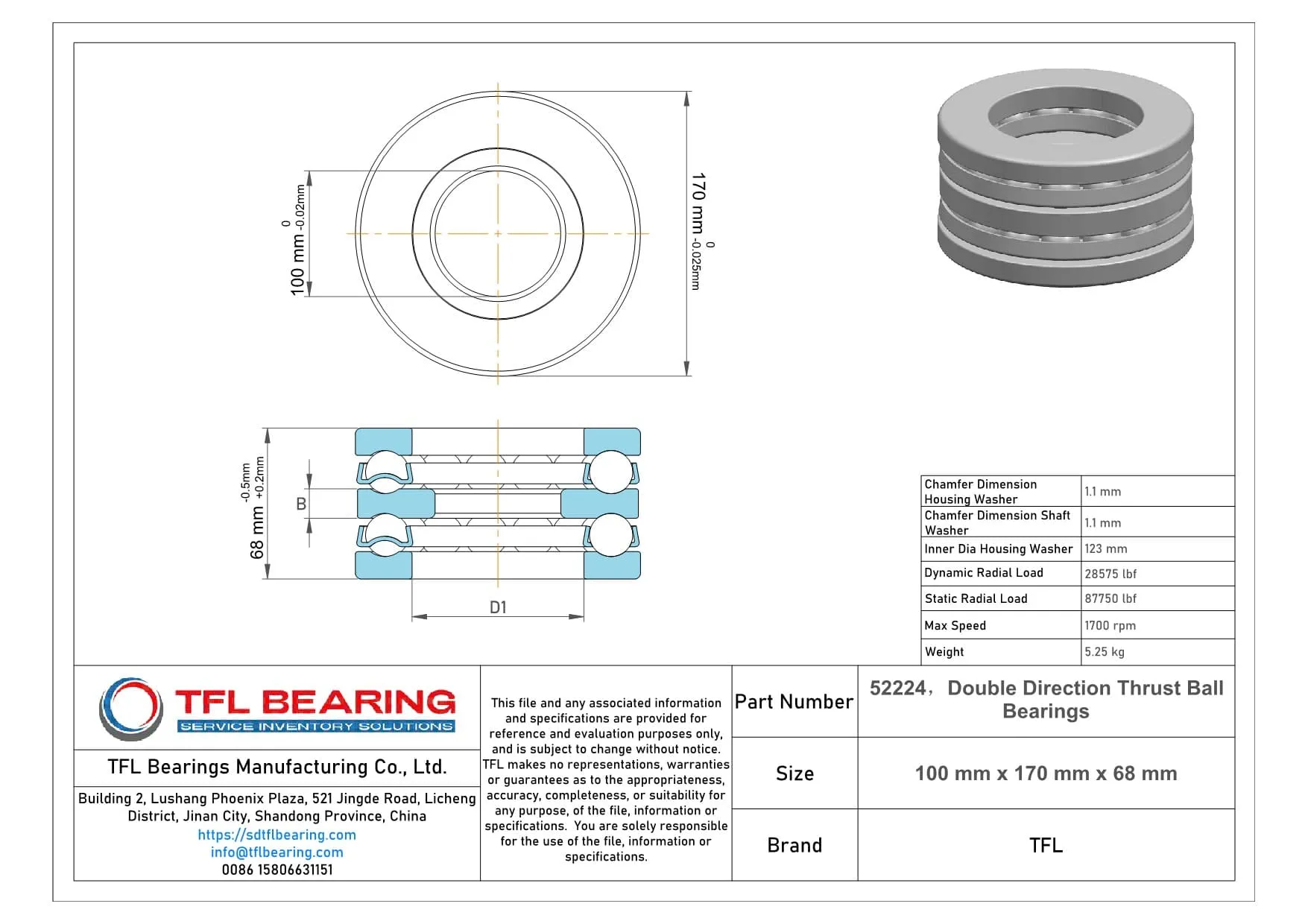

52224 Bearing features precise dimensions with a bore diameter of 100 mm and outer diameter of 170 mm.
The chrome steel construction provides excellent resistance to wear and tear, even in tough conditions.
Its open seal design allows for easy maintenance and inspection, ensuring long-term performance.
The bearing operates efficiently within a temperature range of -30° to 110°C.
Why Choose 52224 Bearing for Precision Tasks?
52224 Bearing’s tight tolerances ensure accurate performance in precision applications.
The chamfer dimensions of 1.1 mm on both housing and shaft washers facilitate smooth installation.
With a static thrust load capacity of 87,750 lbf, it handles heavy loads without compromising precision.
Its stainless steel cage maintains ball alignment, reducing noise and vibration.
Industrial Uses of 52224 Bearing
52224 Bearing is commonly used in heavy machinery like hydraulic presses and large conveyor systems, where its robust design handles significant axial loads. The open seal type simplifies lubrication, extending service life in demanding conditions.
In wind turbine gearboxes, 52224 Bearing provides reliable thrust support, crucial for maintaining efficiency in renewable energy applications. Its chrome steel construction ensures durability even under continuous operation.
For industrial pumps, 52224 Bearing’s precise tolerances and high load capacity make it a dependable choice. The stainless steel cage adds corrosion resistance, ideal for wet or chemically exposed environments.
Where Is 52224 Bearing Used?
You’ll often find 52224 Bearing in construction equipment like crane slewing rings, where its thrust capacity supports rotational movements. The metric dimensions ensure compatibility with global machinery standards.
In marine applications, 52224 Bearing withstands saltwater exposure while maintaining performance in thrust assemblies. Its temperature range suits both cold and moderately warm operating conditions.
Built for Heavy-Duty Use: 52224 Bearing
52224 Bearing excels in mining equipment, handling the axial loads of crushers and screens. The 170mm outer diameter provides stability in high-vibration environments.
For steel rolling mills, 52224 Bearing’s static thrust load capacity ensures smooth metal forming processes. The 68mm width offers a compact solution without compromising strength.
Automotive vs Aerospace: Applications of 52224 Bearing
In truck transmissions, 52224 Bearing manages thrust loads during gear shifts, while in aircraft landing gear, it supports retraction mechanisms. The material choice balances weight and durability for each sector.
The bearing’s 1.7k rpm limit suits both automotive drivetrains and aerospace auxiliary systems. Its compliance with RoHS and REACH makes it versatile for regulated industries.
