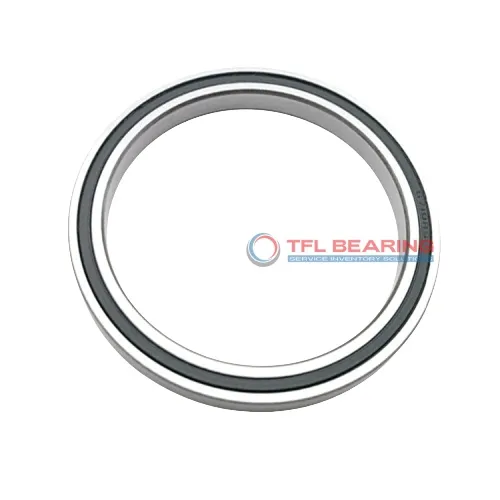

The WB035XP0 is a slim, sealed ball bearing measuring 3.5″ in bore and 4.125″ in outer diameter, with a compact width of just 0.3125″. Made entirely from stainless steel, it offers reliable performance in various conditions.
This bearing handles radial loads up to 1014 lbf and thrust loads up to 1590 lbf, making it suitable for applications with combined forces. Its sealed design keeps lubrication in and contaminants out for longer service life.
The thin-section construction saves space while maintaining strength, ideal for tight installations. It operates smoothly in temperatures ranging from -30°C to 110°C.
Perfect for precision equipment where space is limited, this model is interchangeable with KAYDON bearings. Its lightweight design (0.27 lbs) makes it easy to handle during installation or maintenance.
"*" indicates required fields
How Does WB035XP0 Bearing Handle Heavy Loads?
WB035XP0 Bearing is constructed with stainless steel rings and balls, offering strong resistance to heavy loads.
Its dynamic radial load capacity reaches 1014 lbf, ensuring reliable performance in demanding conditions.
The sealed design protects against contaminants, extending the bearing’s service life.
With a temperature range of -30°C to 110°C, it performs well in various environments.
Why Choose WB035XP0 Bearing for Precision Tasks?
WB035XP0 Bearing features a thin-section design, making it ideal for precision applications.
The ABEC-1 tolerance class ensures consistent performance and smooth operation.
Its stainless steel construction provides excellent corrosion resistance.
The sealed design keeps lubrication in and contaminants out, reducing maintenance needs.
Built for Reliability: WB035XP0 Bearing
WB035XP0 Bearing is designed for durability with its stainless steel components.
It handles static thrust loads up to 3860 lbf, making it suitable for heavy-duty use.
The sealed construction ensures long-lasting performance in harsh conditions.
Its compact width of 0.3125″ allows for easy integration into tight spaces.
Steel vs Ceramic Bearings: Strengths of WB035XP0 Bearing
WB035XP0 Bearing uses high-quality stainless steel for both rings and balls.
This material choice provides excellent strength and corrosion resistance.
The bearing’s dynamic moment capacity is 1450 lbf, ensuring stability under load.
Its sealed design offers added protection, making it a reliable choice for various applications.
Industrial Uses of WB035XP0 Bearing
WB035XP0 Bearing is commonly used in robotics, particularly in robotic arms where its thin section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring smooth movement in automated systems.
Where Is WB035XP0 Bearing Used?
In medical imaging devices, WB035XP0 Bearing provides precise motion control due to its stainless steel construction and ABEC-1 tolerance. Its low-profile design fits well in compact equipment like CT scanners.
Built for Heavy-Duty Use: WB035XP0 Bearing
WB035XP0 Bearing handles radial and thrust loads efficiently in industrial gearboxes, making it suitable for machinery requiring reliable performance. The four-point contact design distributes loads evenly, extending service life.
Automotive vs Aerospace: Applications of WB035XP0 Bearing
In automotive steering systems, WB035XP0 Bearing offers smooth rotation and durability. For aerospace applications, its lightweight design and corrosion resistance make it ideal for control mechanisms.
Perfect Fit for Automation: WB035XP0 Bearing
WB035XP0 Bearing works well in 3D printers, where its precise movement and sealed design reduce maintenance. The inch sizing ensures compatibility with North American machinery standards.
