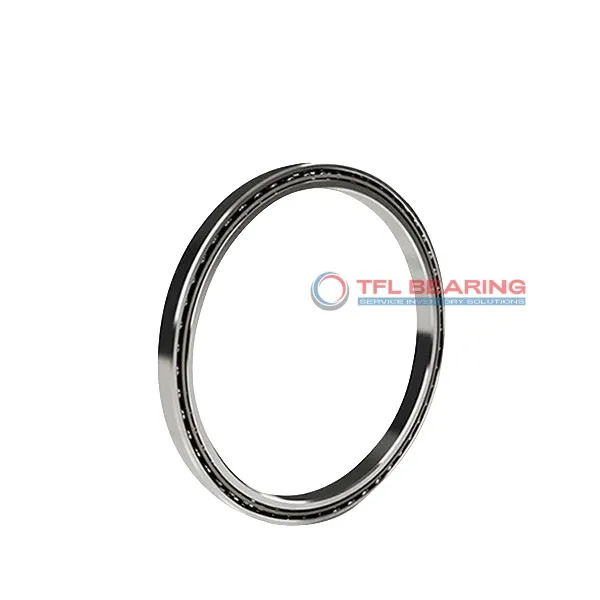

The SAA15AG0 is a slim, stainless steel angular contact bearing measuring 1.5″ by 1.875″ by 0.1875″. Its compact design and lightweight build (0.038 lbs) make it ideal for space-constrained applications.
With a 30° contact angle, it handles radial loads up to 238 lbf and thrust loads up to 560 lbf. The open design and nylon cage ensure smooth operation at temperatures from -30°C to 110°C.
This bearing is interchangeable with KAYDON models, offering a reliable alternative. Its thin section construction suits precision equipment like robotics or medical devices where space and weight matter.
Compliant with RoHS standards, it comes pre-lubricated for easy installation. The ABEC-1 tolerance ensures consistent performance in moderate-speed applications.
"*" indicates required fields
Performance Features of SAA15AG0 Bearing
SAA15AG0 Bearing is crafted with stainless steel rings and balls, offering strong resistance to angular contact loads.
Its dynamic radial load capacity reaches 238 lbf, ensuring steady performance in various applications.
The nylon cage helps maintain ball alignment, reducing friction and extending the bearing’s life.
With a temperature range of -30°C to 110°C, it performs reliably in diverse conditions.
Why Choose SAA15AG0 Bearing for Precision Tasks?
SAA15AG0 Bearing features a 30° contact angle, ideal for precise angular contact applications.
The ABEC-1 tolerance class ensures consistent performance and smooth operation.
Its thin-section design saves space while maintaining strength and durability.
The stainless steel construction provides excellent corrosion resistance for long-term use.
Designed for Durability: SAA15AG0 Bearing
SAA15AG0 Bearing’s stainless steel materials resist wear, making it suitable for demanding environments.
The lubricated design reduces maintenance needs and ensures smooth operation over time.
With a static radial load capacity of 480 lbf, it handles heavy loads effectively.
Its compact width of 0.1875″ fits easily into space-constrained applications.
Steel vs Ceramic Bearings: Strengths of SAA15AG0 Bearing
SAA15AG0 Bearing uses stainless steel for both rings and balls, balancing cost and performance.
This material choice provides good corrosion resistance without the higher cost of ceramics.
The bearing’s thin-section design offers space savings while maintaining load capacity.
Its 30° contact angle ensures reliable performance in angular contact applications.
Industrial Uses of SAA15AG0 Bearing
SAA15AG0 Bearing is commonly used in precision machinery, such as rotary tables and indexing heads, where its thin section design saves space without compromising performance. The stainless steel construction ensures resistance to corrosion in harsh industrial environments.
Where Is SAA15AG0 Bearing Used?
In robotics, SAA15AG0 Bearing provides smooth motion control for robotic arms and joints, thanks to its angular contact design. The nylon cage reduces friction, making it ideal for high-speed applications.
Built for Heavy-Duty Use: SAA15AG0 Bearing
SAA15AG0 Bearing handles radial and thrust loads efficiently in packaging equipment, ensuring reliable operation during continuous production cycles. Its ABEC-1 tolerance offers a good balance of precision and cost-effectiveness.
Medical vs Industrial: Where SAA15AG0 Bearing Excels
SAA15AG0 Bearing is suitable for medical imaging devices where quiet operation and durability are essential. In industrial settings, it supports lightweight conveyor systems with its compact design.
Perfect Fit for Automation: SAA15AG0 Bearing
SAA15AG0 Bearing works well in 3D printers and CNC machines, providing precise movement with minimal backlash. The lubricated design ensures long service life even with frequent use.
