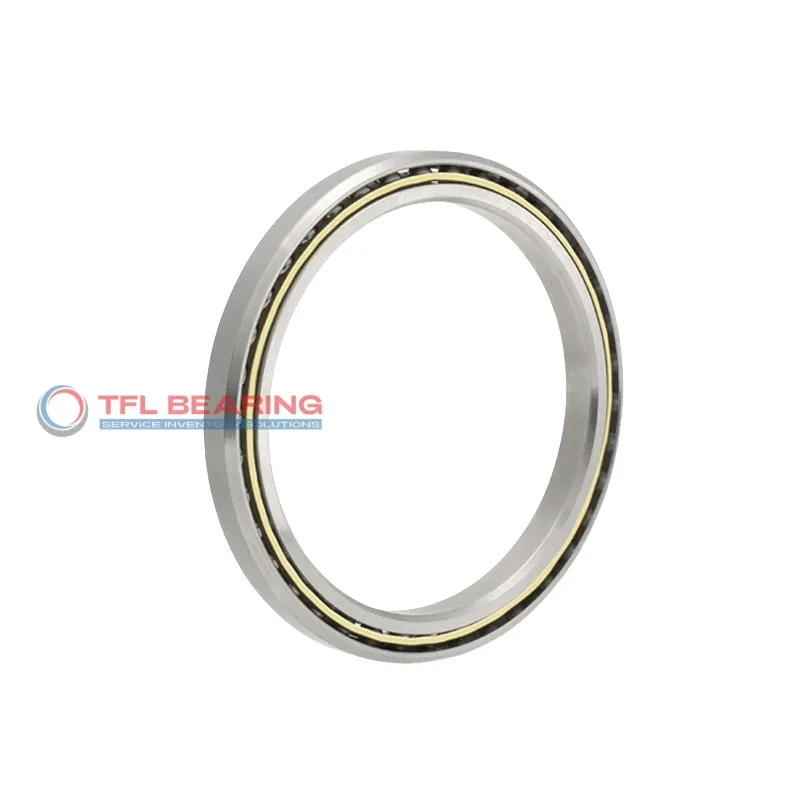

The S15003AS0 is an ultra-slim angular contact ball bearing with a 150mm bore and 156mm outer diameter, crafted entirely from stainless steel for durability. Its slim 2.5mm width makes it ideal for space-constrained applications while handling radial loads up to 225 lbf.
With a 30° contact angle and ABEC-1 tolerance, it offers smooth rotation and reliable performance. The open design allows for easy lubrication, extending its service life in temperatures from -30°C to 110°C.
This bearing is interchangeable with KAYDON models, providing a versatile replacement option. Perfect for precision equipment like robotics or medical devices where slim profiles and reliable angular contact are needed.
Weighing just 22g, it’s lightweight yet sturdy, complying with RoHS standards for safe use in various industries.
"*" indicates required fields
Performance Features of S15003AS0 Bearing
S15003AS0 Bearing is crafted with stainless steel rings and balls, offering reliable angular contact performance.
Its ultra-slim 2.5 mm width makes it ideal for space-constrained applications without compromising strength.
The ABEC-1 tolerance ensures consistent precision, suitable for various industrial uses.
With a dynamic radial load capacity of 225 lbf, it handles moderate loads efficiently.
How Is S15003AS0 Bearing Engineered for Reliability?
S15003AS0 Bearing’s 30° contact angle provides optimal load distribution, enhancing durability.
The stainless steel construction resists corrosion, making it suitable for diverse environments.
Its thin-section design maintains performance while saving space in compact assemblies.
Operating between -30°C to 110°C, it adapts to a wide temperature range.
Built for Precision: S15003AS0 Bearing
S15003AS0 Bearing features a single-row design, ensuring smooth angular contact operation.
The precise radial clearance of 0.0000 – 0.0005″ minimises vibration and noise.
Its lightweight 22.0 g construction reduces overall system weight.
Lubricated for longevity, it requires minimal maintenance over its service life.
Steel vs Ceramic Bearings: Strengths of S15003AS0 Bearing
S15003AS0 Bearing’s stainless steel components provide excellent corrosion resistance and durability.
The thin-section profile allows for easy integration into lightweight machinery designs.
With a static radial load capacity of 364 lbf, it supports moderate loads reliably.
Its open seal type facilitates straightforward inspection and relubrication when needed.
Design Innovations of S15003AS0 Bearing
S15003AS0 Bearing incorporates a stainless steel cage for consistent ball alignment and reduced wear.
The 150 mm bore diameter accommodates larger shafts while maintaining a slim profile.
Its moment load rating of 160 lbf-in handles combined loads effectively.
Compliant with RoHS standards, it meets modern environmental requirements.
Common Applications of S15003AS0 Bearing
S15003AS0 Bearing is widely used in industrial automation, particularly in robotic arms where its slim design and angular contact capability ensure precise movement. The stainless steel construction offers good resistance to wear in continuous operation.
In medical imaging devices, S15003AS0 Bearing provides smooth rotation for components requiring minimal friction. Its ABEC-1 tolerance makes it suitable for applications where consistent performance is needed.
For consumer electronics like high-end printers, S15003AS0 Bearing’s lightweight design helps maintain quiet operation. The open seal type allows for easy lubrication, extending its service life in everyday use.
Where Is S15003AS0 Bearing Used?
You’ll often find S15003AS0 Bearing in aerospace applications, such as satellite mechanisms, where its thin section and reliability are crucial. The 30° contact angle helps manage combined loads effectively.
In precision machinery like optical alignment systems, S15003AS0 Bearing’s tight radial clearance ensures accurate positioning. The stainless steel balls reduce corrosion risks in sensitive environments.
Built for Heavy-Duty Use: S15003AS0 Bearing
S15003AS0 Bearing handles moment loads well, making it a solid choice for rotating platforms in industrial settings. Its dynamic radial load capacity supports steady performance under stress.
In packaging equipment, S15003AS0 Bearing’s slim profile fits into tight spaces without sacrificing durability. The lubricated design keeps operations running smoothly over long periods.
Automotive vs Aerospace: Applications of S15003AS0 Bearing
In automotive steering systems, S15003AS0 Bearing’s angular contact design aids in smooth directional changes. The metric sizing ensures compatibility with various vehicle designs.
For aerospace actuators, S15003AS0 Bearing’s lightweight and corrosion-resistant materials meet stringent industry standards. Its temperature range suits both ground and flight conditions.
