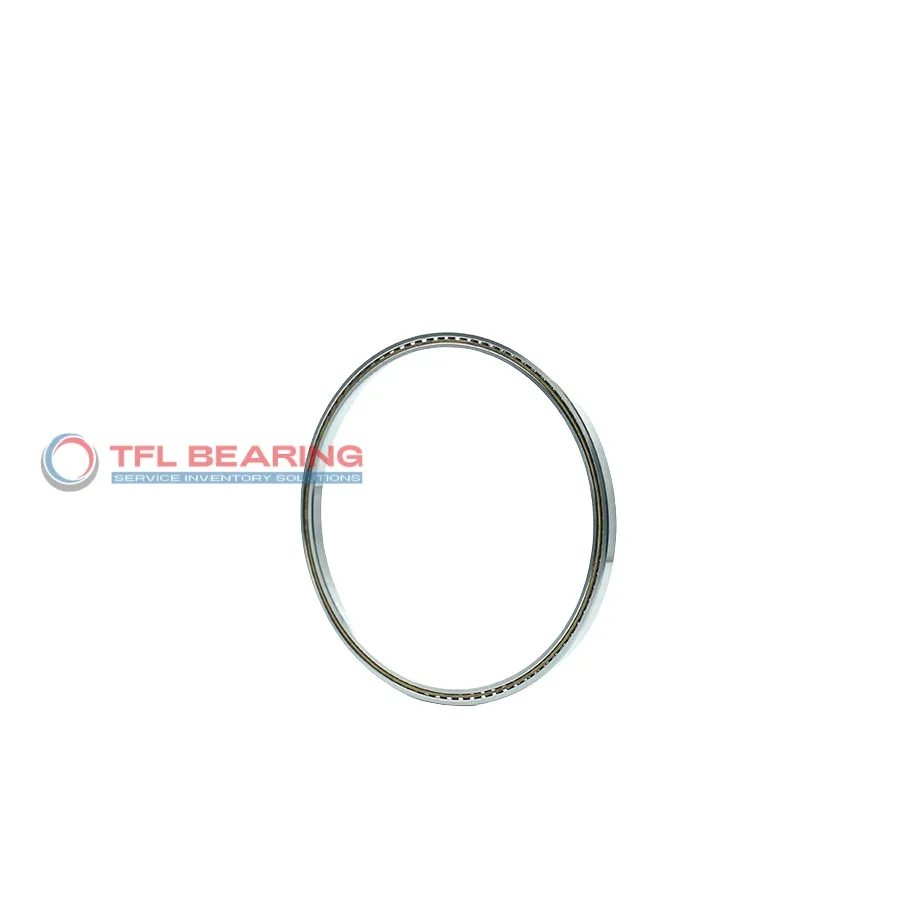

The NB100XP0 is a thin-section ball bearing with a 10-inch bore and 10.625-inch outer diameter, featuring durable chrome steel construction. Its compact 0.3125-inch width makes it ideal for space-constrained applications while handling radial loads up to 1841 lbf.
The four-point contact design allows it to manage thrust and moment loads efficiently, with a static thrust capacity of 10460 lbf. The brass cage ensures smooth operation, and the chromium plating adds corrosion resistance.
This bearing is interchangeable with KAYDON models, offering a reliable replacement option. It performs well in temperatures from -30°C to 110°C and comes pre-lubricated for easy installation.
Suitable for robotics or precision machinery, its lightweight 0.73-lb design balances strength and agility. Compliant with RoHS standards, it’s a practical choice for industrial and automation needs.
"*" indicates required fields
Performance Features of NB100XP0 Bearing
NB100XP0 Bearing is designed with chrome steel rings and balls, offering strong resistance to heavy loads.
Its dynamic radial load capacity reaches 1841 lbf, while the static thrust load goes up to 10460 lbf.
The brass cage ensures smooth operation, keeping the balls aligned for reduced wear.
With a temperature range of -30°C to 110°C, it performs reliably in various conditions.
How Is NB100XP0 Bearing Engineered for Reliability?
NB100XP0 Bearing features chromium plating, enhancing its durability and corrosion resistance.
The ABEC-1 tolerance class ensures consistent performance in precision applications.
Its thin section design saves space without compromising strength.
The four-point contact design allows it to handle both radial and thrust loads effectively.
Built for Durability: NB100XP0 Bearing
NB100XP0 Bearing’s chrome steel construction provides excellent wear resistance and long service life.
The brass cage reduces friction, contributing to smoother operation and lower maintenance needs.
With a static moment rating of 21580 lbf, it handles demanding applications with ease.
Its compact width of 0.3125″ makes it ideal for space-constrained installations.
Steel vs Ceramic Bearings: Strengths of NB100XP0 Bearing
NB100XP0 Bearing uses high-quality chrome steel for both rings and balls, ensuring reliable performance.
The material choice provides a good balance between cost and durability for most industrial applications.
Chromium plating adds an extra layer of protection against corrosion.
With a dynamic thrust load capacity of 3080 lbf, it performs well in various load conditions.
Ideal for Precision: NB100XP0 Bearing
NB100XP0 Bearing is commonly used in robotics and automation systems, where its thin-section design saves space without compromising load capacity. The chromium plating adds extra protection against wear in high-movement applications.
In aerospace components, NB100XP0 Bearing’s four-point contact design handles combined radial and thrust loads efficiently. Its brass cage ensures smooth rotation even under varying temperatures, making it suitable for flight control systems.
For medical imaging devices, NB100XP0 Bearing’s ABEC-1 tolerance provides the necessary precision for accurate positioning. The open seal type allows for easy lubrication, extending service life in critical healthcare equipment.
Where Is NB100XP0 Bearing Used?
You’ll often find NB100XP0 Bearing in industrial gearboxes, where its dynamic radial load capacity supports heavy rotational forces. The inch sizing makes it a straightforward replacement for many North American machinery standards.
In packaging machinery, NB100XP0 Bearing’s slim profile fits into tight spaces while maintaining stability. The chrome steel construction resists corrosion, ideal for environments with frequent cleaning cycles.
Built for Heavy-Duty Use: NB100XP0 Bearing
NB100XP0 Bearing performs well in construction equipment like crane swivels, thanks to its high static moment rating. The Endura-kote plating adds an extra layer of durability against outdoor elements.
For semiconductor manufacturing tools, NB100XP0 Bearing’s precise tolerances ensure repeatable movements. Its lubricated design reduces maintenance needs in cleanroom-compatible applications.
Automotive vs Aerospace: Applications of NB100XP0 Bearing
In automotive steering columns, NB100XP0 Bearing provides smooth rotation with minimal friction. The brass cage dampens vibrations better than synthetic alternatives for quieter operation.
For satellite antenna mechanisms, NB100XP0 Bearing’s temperature stability maintains performance in extreme conditions. The chromium plating prevents cold welding in vacuum environments.
