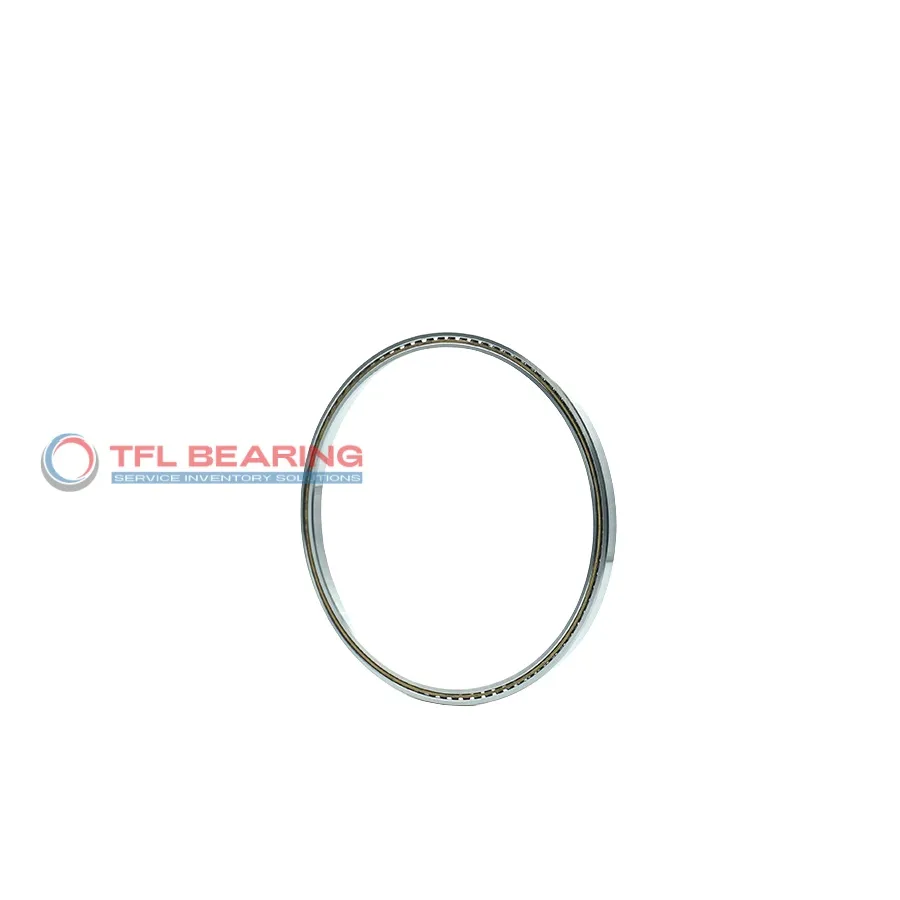

The NB100AR0 is a constant section bearing with a 10-inch bore and 10.625-inch outer diameter, featuring a slim 0.3125-inch width. Made from chrome steel with a brass cage, it’s built for durability and smooth operation.
This angular contact bearing handles radial loads up to 1461 lbf and static thrust loads of 3760 lbf, ideal for precise movements. Its 30° contact angle ensures stable performance in applications requiring accuracy.
The open design allows easy lubrication, while the chromium plating offers extra corrosion resistance. It works in temperatures from -30°C to 110°C, making it versatile for various environments.
Compatible with KAYDON bearings, it’s a practical choice for replacements in machinery where space and precision are key. Weighing just 0.71 lbs, it’s lightweight yet robust for its size.
"*" indicates required fields
How Does NB100AR0 Bearing Handle Angular Contact Loads?
NB100AR0 Bearing features a 30° contact angle, optimised for angular contact loads and smooth operation.
Its chrome steel construction ensures durability, while the brass cage maintains ball alignment for consistent performance.
With a dynamic radial load capacity of 1461 lbf, NB100AR0 Bearing handles demanding applications effectively.
The ABEC-1 tolerance class provides reliable precision, suitable for various industrial uses.
NB100AR0 Bearing operates within a temperature range of -30°C to 110°C, adapting to different environments.
Its chromium plating enhances corrosion resistance, extending service life even in challenging conditions.
Designed for easy integration, NB100AR0 Bearing simplifies installation and reduces maintenance efforts.
The lubricated design ensures smooth performance, minimising friction and wear over time.
Key Fields for NB100AR0 Bearing
NB100AR0 Bearing is commonly used in robotics, where its thin section design saves space without compromising load capacity. The 30° contact angle provides smooth motion for precision tasks like assembly line arms.
In aerospace applications, NB100AR0 Bearing handles moderate radial and moment loads in control mechanisms. Its chromium plating offers extra corrosion resistance for challenging environments.
For medical imaging devices, NB100AR0 Bearing’s ABEC-1 tolerance ensures quiet operation during sensitive scans. The brass cage reduces friction, making it suitable for continuous use.
Automotive steering systems benefit from NB100AR0 Bearing’s angular contact design, which manages combined loads efficiently. The inch sizing simplifies integration with North American vehicle components.
