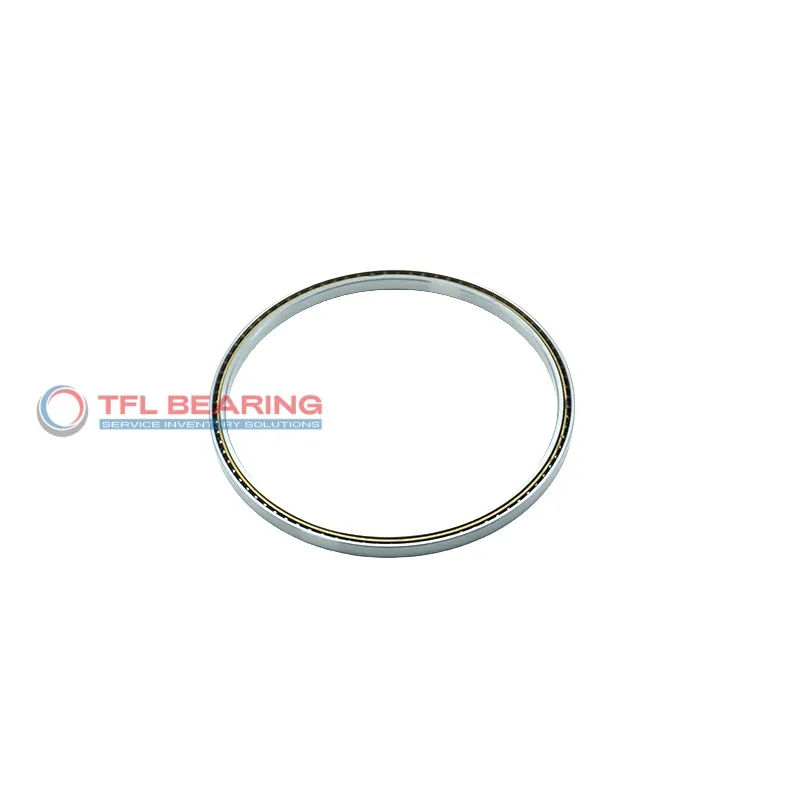

The KD210XP0 is a thin-section ball bearing with a 21″ bore and 22″ outer diameter, featuring a compact width of just 0.5″. Made from chrome steel with a brass cage, it offers reliable performance in four-point contact applications.
This bearing handles dynamic radial loads up to 5682 lbf and static thrust loads of 36770 lbf, making it suitable for demanding setups. Its ABEC-1 tolerance ensures smooth operation, while the open design allows for easy lubrication.
The Reali-Slim design saves space without sacrificing strength, ideal for applications where weight and size matter. It works well in temperatures from -30°C to 110°C, compliant with RoHS standards.
Perfect for rotary tables or robotics where moment loads up to 45 ft-lbf are present. Weighing 4.04 lbs, it balances durability with lightweight construction, interchangeable with KAYDON bearings for easy replacement.
"*" indicates required fields
Why Choose KD210XP0 Bearing for Precision Tasks?
KD210XP0 Bearing features a thin-section design, making it ideal for applications where space is limited.
Its chrome steel construction ensures durability and resistance to wear under heavy loads.
The brass cage maintains precise ball alignment, enhancing smooth operation and reducing friction.
With a dynamic radial load capacity of 5682 lbf, it handles demanding tasks with ease.
KD210XP0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its ABEC-1 tolerance class guarantees reliable performance in precision applications.
The open design simplifies maintenance, while the lubricated construction ensures long service life.
KD210XP0 Bearing is a dependable choice for high-performance machinery.
Key Fields for KD210XP0 Bearing
KD210XP0 Bearing is commonly used in robotics, particularly in robotic arms where its thin section design saves space without compromising load capacity. The brass cage ensures smooth rotation, which is vital for precise movements.
In aerospace applications, KD210XP0 Bearing handles moment loads in control systems, thanks to its four-point contact design. Its inch measurements make it compatible with many American-made aircraft components.
For industrial automation, KD210XP0 Bearing fits well in conveyor systems where its high static thrust load rating provides reliability. The chrome steel construction also resists wear in continuous operation.
Medical imaging devices benefit from KD210XP0 Bearing’s low friction and consistent performance. Its ABEC-1 tolerance ensures smooth operation in sensitive equipment.
In packaging machinery, KD210XP0 Bearing’s dynamic radial load capacity supports high-speed operations. The open seal design allows for easy lubrication, extending service life.
