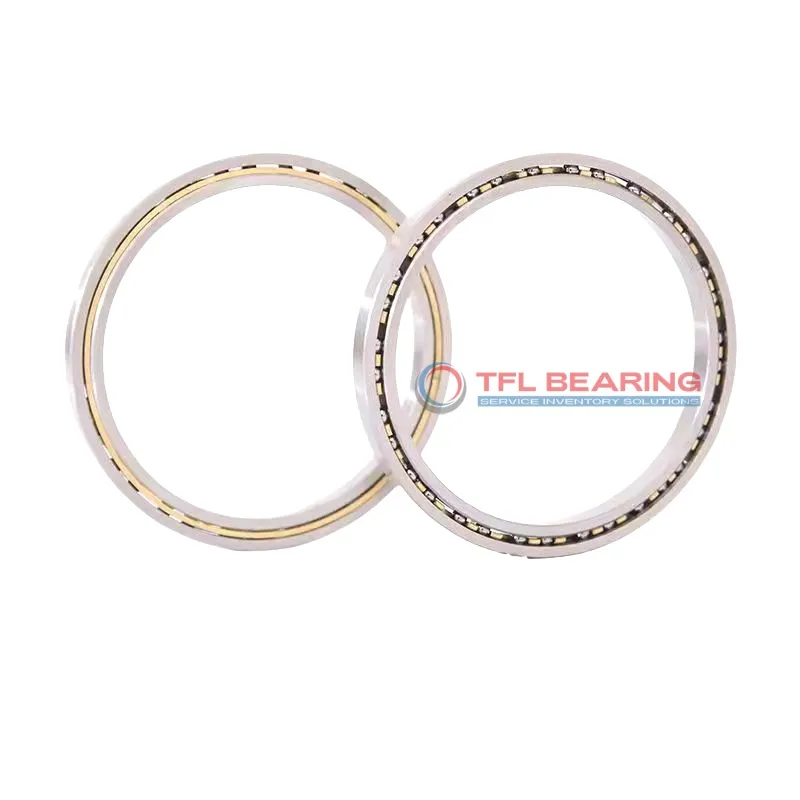

The KC140XP0 is a thin-section ball bearing measuring 14″ in bore and 14.75″ in outer diameter, with a slim 0.375″ width. Made from chrome steel with a brass cage, it offers durability in a compact design.
This bearing handles radial loads up to 2862 lbf and thrust loads up to 4890 lbf, suitable for moderate-speed applications. Its four-point contact design provides stability under combined loads.
The open construction allows easy lubrication, while the ABEC-1 tolerance ensures reliable performance. It operates in temperatures from -30°C to 110°C.
Ideal for applications requiring slim profiles like robotics or medical equipment. Interchangeable with KAYDON bearings, it’s a practical choice for replacements. Weighing 1.52 lbs, it’s lightweight for its size.
"*" indicates required fields
Performance Features of KC140XP0 Bearing
KC140XP0 Bearing is designed with chrome steel rings and balls, ensuring durability under various load conditions.
Its brass cage maintains ball alignment, reducing friction and enhancing performance.
The bearing handles dynamic radial loads up to 2862 lbf and static thrust loads up to 17280 lbf.
With a temperature range of -30°C to 110°C, it performs reliably in diverse environments.
KC140XP0 Bearing’s thin-section design makes it suitable for space-constrained applications.
Its ABEC-1 tolerance class ensures consistent performance in precision tasks.
Industrial Uses of KC140XP0 Bearing
KC140XP0 Bearing is commonly used in robotics and automation systems, where its thin-section design saves space without compromising load capacity. The brass cage ensures smooth operation in high-speed applications like robotic arms.
Where Is KC140XP0 Bearing Used?
In aerospace equipment, KC140XP0 Bearing handles radial and moment loads in control mechanisms, thanks to its chrome steel construction. Its ABEC-1 tolerance makes it reliable for precision instruments.
Built for Heavy-Duty Use: KC140XP0 Bearing
KC140XP0 Bearing works well in medical imaging devices, where consistent performance under static loads is essential. The open design allows for easy lubrication, extending service life in demanding environments.
Automotive vs Aerospace: Applications of KC140XP0 Bearing
For automotive steering systems, KC140XP0 Bearing provides durability under dynamic loads, while in aerospace, it excels in lightweight control surfaces. Its inch sizing suits both industries’ specifications.
