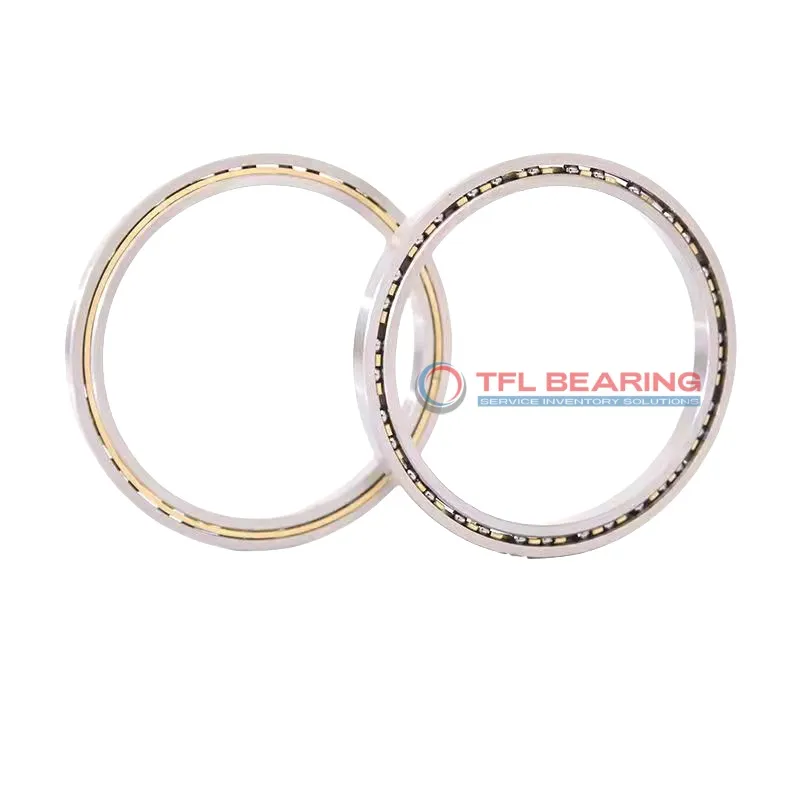

The KC140AR0 is a thin-section angular contact bearing measuring 14″ by 14.75″ with a slim 0.375″ width, crafted from durable chrome steel. It handles radial loads up to 2347 lbf and static thrust loads of 6170 lbf, suitable for moderate-speed applications.
Its open design and brass cage ensure smooth operation, while the 30° contact angle provides stability under combined loads. The bearing works in temperatures from -30°C to 110°C and comes pre-lubricated for easy use.
This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for precision equipment like robotics or medical devices where space is limited but performance is key.
Weighing 1.43 lbs, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Does KC140AR0 Bearing Handle Angular Contact Loads?
KC140AR0 Bearing features a 30° contact angle, optimising its performance for angular contact applications.
The chrome steel construction ensures strength and durability under dynamic radial loads up to 2347 lbf.
Its brass cage maintains ball alignment, reducing friction and extending operational life.
With a temperature range of -30°C to 110°C, KC140AR0 Bearing performs reliably in varied conditions.
The ABEC-1 tolerance class provides consistent precision for smooth operation.
KC140AR0 Bearing’s thin-section design saves space without compromising load capacity.
Industrial Uses of KC140AR0 Bearing
KC140AR0 Bearing is commonly used in industrial machinery where space constraints are a concern, thanks to its slim 0.375″ width. Its angular contact design handles both radial and axial loads efficiently, making it suitable for conveyor systems and rotary tables.
Where Is KC140AR0 Bearing Used?
In robotics, KC140AR0 Bearing provides smooth motion in robotic arms and joints due to its precise ABEC-1 tolerance. The brass cage ensures durability even in high-speed applications, reducing maintenance needs.
Built for Heavy-Duty Use: KC140AR0 Bearing
KC140AR0 Bearing excels in aerospace applications, such as satellite mechanisms, where its chrome steel construction offers reliability under extreme conditions. The 30° contact angle enhances load distribution for long-term performance.
Automotive vs Aerospace: Applications of KC140AR0 Bearing
In automotive steering systems, KC140AR0 Bearing supports smooth rotation with minimal friction. For aerospace, its lightweight design and high static load capacity make it ideal for control surface mechanisms.
Key Fields for KC140AR0 Bearing
KC140AR0 Bearing is a go-to choice for medical imaging devices, where precision and quiet operation are essential. Its open design allows for easy lubrication, ensuring consistent performance in critical healthcare equipment.
