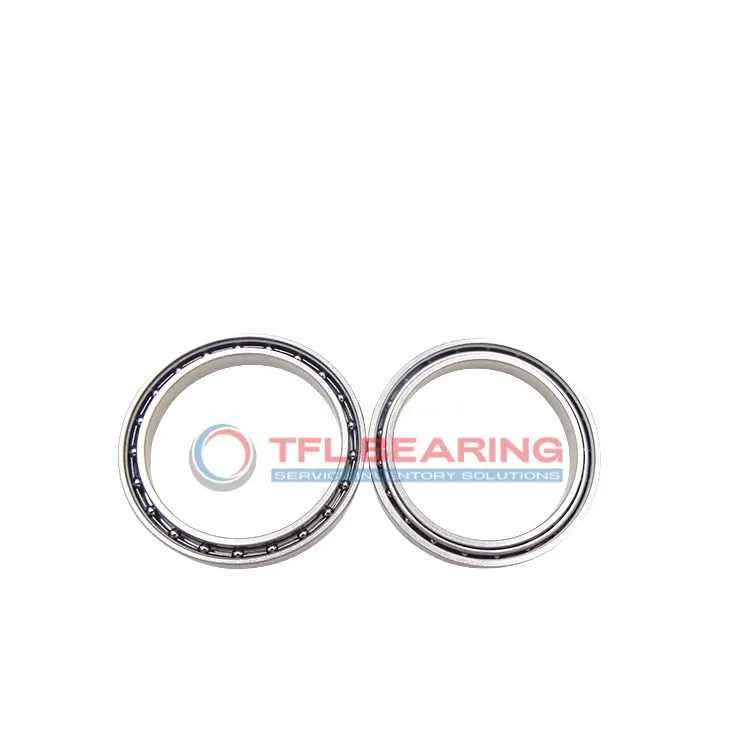

The KB060AR0 is a slim, open-type angular contact ball bearing with a 6-inch bore and 6.625-inch outer diameter, made from durable chrome steel. It handles radial loads up to 1088 lbf and static thrust loads up to 2710 lbf, with a 30° contact angle for smooth operation.
Its brass cage ensures quiet performance, while the ABEC-1 tolerance class offers reliable precision. The bearing works in temperatures from -30°C to 110°C and comes pre-lubricated for easy use.
This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications requiring slim profiles, such as robotics or medical equipment.
Weighing just 0.44 lbs, it’s lightweight yet sturdy. Compliant with RoHS standards for safe use.
"*" indicates required fields
Why Choose KB060AR0 Bearing for Precision Tasks?
KB060AR0 Bearing features a 30° contact angle, ideal for handling angular contact loads with precision.
Its chrome steel construction ensures durability and smooth operation in various applications.
The brass cage maintains ball alignment, reducing friction and extending the bearing’s service life.
With a dynamic radial load capacity of 1088 lbf, it performs reliably under demanding conditions.
Industrial Uses of KB060AR0 Bearing
KB060AR0 Bearing is commonly used in robotics, particularly in articulated arms where its thin-section design saves space without compromising load capacity. The 30° contact angle ensures smooth motion control in precision applications.
Where Is KB060AR0 Bearing Used?
You’ll find KB060AR0 Bearing in packaging machinery, where its brass cage reduces friction during high-speed operations. Its inch sizing makes it a straightforward replacement for many North American industrial systems.
Built for Heavy-Duty Use: KB060AR0 Bearing
KB060AR0 Bearing handles angular loads well in conveyor systems, thanks to its chrome steel construction. The ABEC-1 tolerance offers reliable performance for general industrial needs.
Automotive vs Aerospace: Applications of KB060AR0 Bearing
In automotive steering systems, KB060AR0 Bearing provides stable support for rotating components. For aerospace applications, its lightweight design is useful in auxiliary equipment where space is limited.
Perfect Fit for Automation: KB060AR0 Bearing
KB060AR0 Bearing works smoothly in CNC machine tooling, where consistent radial and moment load handling is needed. The open seal design allows for easy lubrication in dusty workshop environments.
