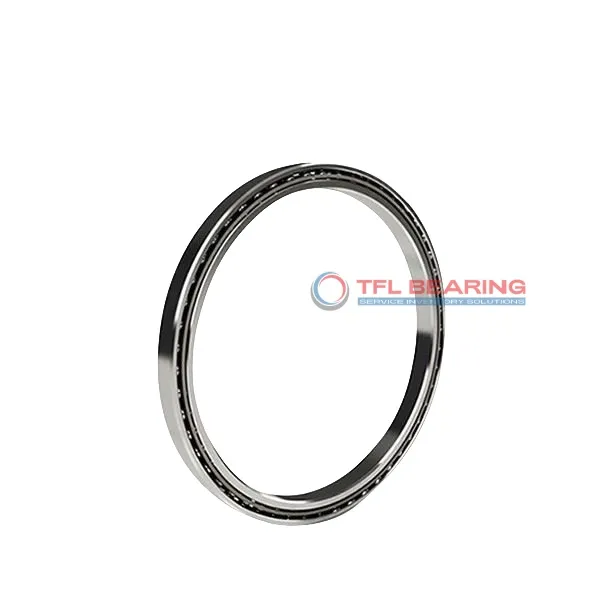

The KAA17XL0 is a slim, open-type ball bearing with a 1.75″ bore and 2.125″ outer diameter, designed for four-point contact. Made from chrome steel, it handles radial loads up to 319 lbf and thrust loads up to 500 lbf.
Its thin 0.1875″ width makes it ideal for space-constrained applications, while the nylon cage ensures smooth operation. The bearing works in temperatures from -30°C to 110°C and comes pre-lubricated for easy use.
This model is interchangeable with KAYDON bearings, offering a reliable replacement option. Suitable for robotics or precision machinery where compact design and load versatility are key.
Weighing just 0.045 lbs, it’s lightweight yet durable. Compliant with RoHS standards for safe industrial use.
"*" indicates required fields
Performance Features of KAA17XL0 Bearing
KAA17XL0 Bearing is crafted with chrome steel rings and balls, offering robust performance in four-point contact applications.
Its thin-section design ensures space efficiency without compromising load capacity.
The nylon cage provides smooth operation and reduces friction, enhancing durability.
With a static thrust load of 1140 lbf, it handles demanding conditions reliably.
How Is KAA17XL0 Bearing Engineered for Reliability?
KAA17XL0 Bearing features a precision ABEC-1 tolerance class, ensuring consistent performance in various applications.
The chrome steel construction resists wear, while the open design allows for easy lubrication.
Its dynamic radial load capacity of 319 lbf makes it suitable for light to moderate loads.
The temperature range of -30°C to 110°C ensures versatility in different environments.
Built for Durability: KAA17XL0 Bearing
KAA17XL0 Bearing’s chrome steel components provide excellent resistance to wear and corrosion.
The thin-section design maximises space efficiency, ideal for compact machinery.
With a static moment rating of 440 lbf, it delivers reliable performance under moment loads.
Its lightweight construction at 0.045 lbs reduces overall system weight.
Steel vs Ceramic Bearings: Strengths of KAA17XL0 Bearing
KAA17XL0 Bearing uses chrome steel for its rings and balls, offering a balance of strength and affordability.
The material choice ensures good performance in most industrial applications.
Its nylon cage reduces noise and vibration compared to metal cages.
The bearing’s thin profile makes it a practical choice where space is limited.
Why Choose KAA17XL0 Bearing for Precision Tasks?
KAA17XL0 Bearing’s ABEC-1 tolerance provides the necessary precision for many industrial applications.
The four-point contact design allows it to handle combined radial and thrust loads effectively.
With a width of just 0.1875″, it fits into tight spaces while maintaining performance.
The chrome steel construction ensures long service life in typical operating conditions.
Industrial Uses of KAA17XL0 Bearing
KAA17XL0 Bearing is commonly used in robotics, where its thin-section design saves space without compromising load capacity. The four-point contact ensures smooth movement in articulated arms and precision joints.
Where Is KAA17XL0 Bearing Used?
You’ll find KAA17XL0 Bearing in medical imaging devices, where its low-profile construction fits into compact spaces. The chrome steel rings provide durability for high-precision rotations.
Built for Heavy-Duty Use: KAA17XL0 Bearing
KAA17XL0 Bearing handles moment loads well, making it suitable for industrial turntables and rotary stages. Its nylon cage reduces friction, ideal for applications requiring quiet operation.
Automotive vs Aerospace: Applications of KAA17XL0 Bearing
In automotive steering systems, KAA17XL0 Bearing offers reliable performance under radial and thrust loads. For aerospace, its lightweight design is useful in instrumentation panels.
Practical Applications of KAA17XL0 Bearing
KAA17XL0 Bearing works well in 3D printers, where its slim profile supports precise linear motion. The ABEC-1 tolerance ensures consistent performance in repetitive tasks.
