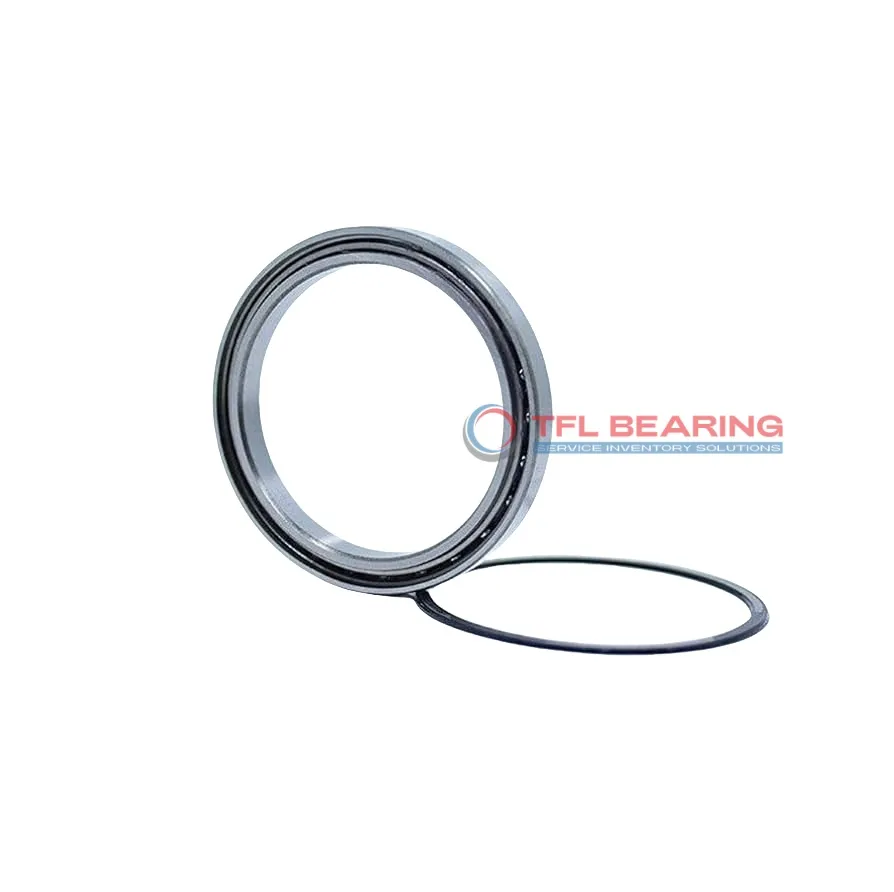

The KA030AR0 is a slim, angular contact ball bearing with a 3-inch bore and 3.5-inch outer diameter, crafted from durable chrome steel. Its compact 0.25-inch width makes it ideal for space-constrained applications.
Designed for angular loads, it handles radial loads up to 507 lbf and static thrust loads of 1230 lbf. The brass cage ensures smooth operation, even at temperatures ranging from -30°C to 110°C.
Its open design allows easy lubrication, while the ABEC-1 tolerance ensures reliable performance. This model is interchangeable with KAYDON bearings, offering a practical replacement option.
Perfect for precision equipment like robotics or medical devices where slim profiles and angular load capacity are key. Weighing just 0.14 lbs, it’s lightweight yet robust. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Is KA030AR0 Bearing Engineered for Reliability?
KA030AR0 Bearing features a 30° contact angle, optimised for angular contact loads and smooth operation.
Its chrome steel rings and balls provide durability, while the brass cage ensures proper ball alignment.
With a dynamic radial load capacity of 507 lbf, KA030AR0 Bearing handles demanding applications effectively.
The ABEC-1 tolerance class guarantees consistent performance, suitable for precision tasks.
KA030AR0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its thin-section design saves space without compromising strength or reliability.
The open seal type allows for easy lubrication, extending the bearing’s service life.
This makes KA030AR0 Bearing a practical choice for various industrial uses.
Key Fields for KA030AR0 Bearing
KA030AR0 Bearing is commonly used in robotics, particularly for joints requiring precise angular movement. Its thin-section design saves space while maintaining load capacity.
In aerospace applications, KA030AR0 Bearing helps in control mechanisms due to its reliable performance under varying pressures. The brass cage adds durability in high-vibration environments.
For medical imaging devices, KA030AR0 Bearing’s 30° contact angle ensures smooth rotation in compact spaces. Chrome steel construction provides the necessary strength for repeated use.
Automotive steering systems benefit from KA030AR0 Bearing’s ability to handle combined radial and thrust loads. The ABEC-1 tolerance makes it suitable for standard precision requirements.
In industrial automation, KA030AR0 Bearing supports lightweight arms where space constraints exist. Open design allows for easy lubrication during maintenance cycles.
