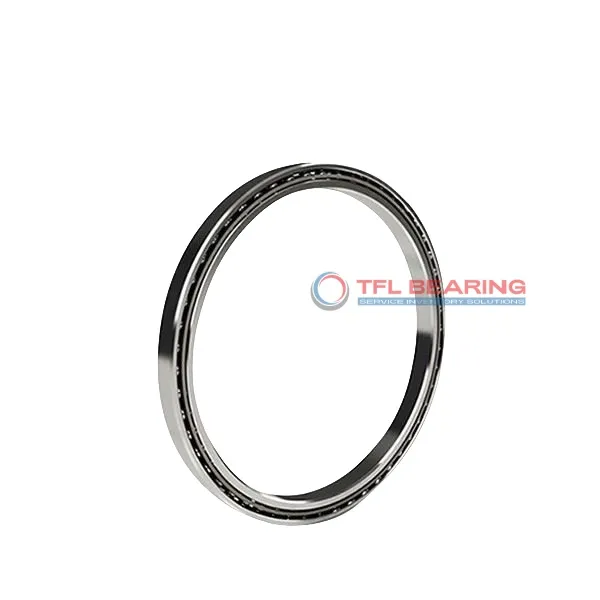

Why Choose KA025AR0 Bearing for Precision Tasks?
KA025AR0 Bearing features a 30° contact angle, optimised for angular contact applications requiring high precision.
Its chrome steel construction ensures durability while maintaining smooth operation under dynamic radial loads up to 459 lbf.
The brass cage design enhances stability, reducing vibration during high-speed rotation.
With ABEC-1 tolerance class, it delivers consistent performance for precision instruments and machinery.
How Is KA025AR0 Bearing Engineered for Reliability?
KA025AR0 Bearing uses chrome steel rings and balls, providing reliable strength for static thrust loads up to 1100 lbf.
The thin-section design saves space without compromising load capacity, making it ideal for compact applications.
Its open construction allows easy lubrication, ensuring smooth operation in various conditions.
The bearing maintains performance within a temperature range of -30°C to 110°C, suitable for diverse environments.
Built for Durability: KA025AR0 Bearing
KA025AR0 Bearing’s chrome steel components resist wear, extending service life even under heavy static moment loads of 2780 lbf.
Its brass cage minimises friction, contributing to quieter operation in precision machinery.
The bearing’s thin-section profile fits seamlessly into space-constrained designs without sacrificing strength.
With a static radial load capacity of 960 lbf, it offers dependable performance in demanding applications.
Ball vs Roller Bearings: Advantages of KA025AR0 Bearing
KA025AR0 Bearing’s ball design provides lower friction compared to roller bearings, ideal for high-speed applications.
Its angular contact configuration efficiently handles combined radial and thrust loads with minimal energy loss.
The brass cage ensures proper ball alignment, reducing wear and prolonging operational life.
With a compact 0.25″ width, it delivers space-saving benefits without compromising load capacity.
What Makes KA025AR0 Bearing Suitable for High-Temperature Applications?
KA025AR0 Bearing operates reliably in temperatures ranging from -30°C to 110°C, maintaining performance in varied conditions.
Its chrome steel construction resists thermal deformation, ensuring consistent precision under heat stress.
The open design allows for effective heat dissipation, preventing overheating during prolonged use.
Lubrication compatibility further enhances its high-temperature resilience, reducing maintenance needs.
"*" indicates required fields
Industrial Uses of KA025AR0 Bearing
KA025AR0 Bearing is commonly used in machine tools where its thin-section design saves space without compromising load capacity. The angular contact design handles both radial and axial loads efficiently.
In robotics, KA025AR0 Bearing’s precise ABEC-1 tolerance ensures smooth movement in articulated arms. Its brass cage reduces friction, making it ideal for high-precision applications.
For aerospace components, KA025AR0 Bearing’s chrome steel construction offers durability in demanding environments. The 30° contact angle provides stability under varying load conditions.
Automotive applications like steering systems benefit from KA025AR0 Bearing’s lightweight design. The inch sizing makes it compatible with many North American vehicle models.
Medical imaging devices often use KA025AR0 Bearing for its reliable performance. The open seal allows for easy lubrication, extending service life in critical equipment.
Industrial Uses of KA025AR0 Bearing
KA025AR0 Bearing is commonly used in machine tools where its thin-section design saves space without compromising load capacity. The angular contact design handles both radial and axial loads efficiently.
In robotics, KA025AR0 Bearing’s precise ABEC-1 tolerance ensures smooth movement in articulated arms. Its brass cage reduces friction, making it ideal for high-precision applications.
For aerospace components, KA025AR0 Bearing’s chrome steel construction offers durability in demanding environments. The 30° contact angle provides stability under varying load conditions.
Automotive applications like steering systems benefit from KA025AR0 Bearing’s lightweight design. The inch sizing makes it compatible with many North American vehicle models.
Medical imaging devices often use KA025AR0 Bearing for its reliable performance. The open seal allows for easy lubrication, extending service life in critical equipment.
"*" indicates required fields

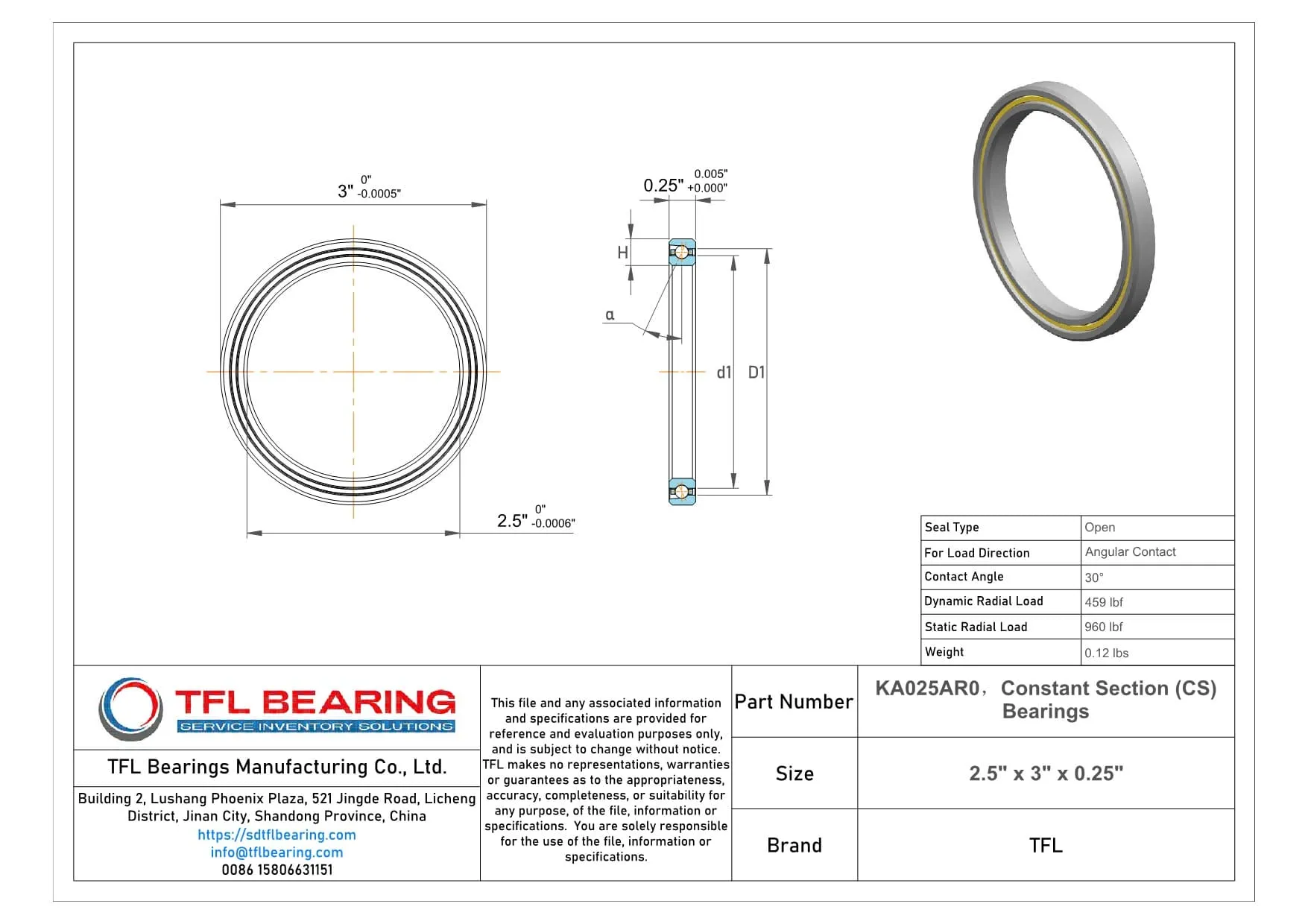

-Bearings-KA025AR0-Drawing.webp)
