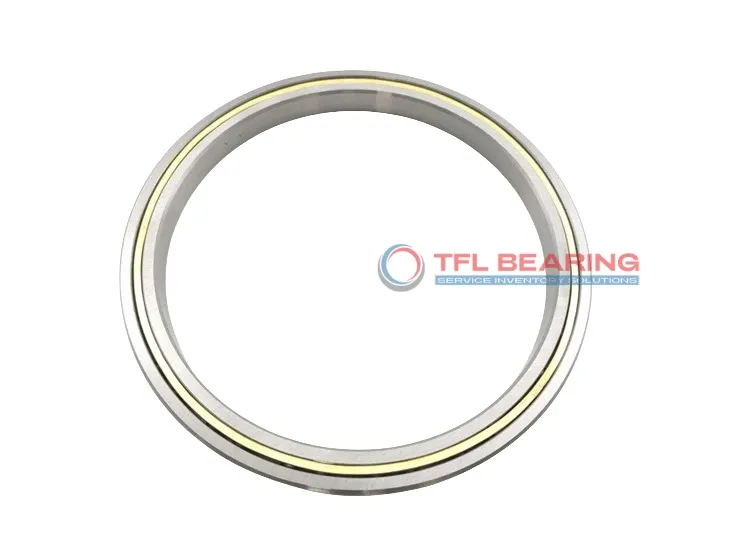

-Bearings-K36008XP0-Dimensions.jpg)
The K36008XP0 is a thin-section ball bearing with a 360mm bore and 376mm outer diameter, designed for four-point contact loads. Its slim 8mm width makes it ideal for space-constrained applications, while the chrome steel construction ensures durability.
This bearing handles radial loads up to 3078 lbf and thrust loads up to 5136 lbf, with a static moment capacity of 1475 lbf. It operates smoothly in temperatures from -30°C to 110°C and comes pre-lubricated for easy use.
The brass cage reduces friction and wear, extending the bearing’s lifespan. Its open design allows for simple maintenance, and it’s interchangeable with KAYDON models for convenient replacements.
Perfect for robotics or precision machinery where slim profiles and high load capacity are needed. Weighing just 0.46kg, it’s lightweight yet robust. Compliant with RoHS standards for safe handling.
"*" indicates required fields
Performance Features of K36008XP0 Bearing
K36008XP0 Bearing is crafted with chrome steel rings and balls, ensuring durability and strength.
Its brass cage maintains proper ball alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 3078 lbf, K36008XP0 Bearing handles demanding applications efficiently.
The bearing’s thin-section design makes it ideal for space-constrained installations.
K36008XP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its open seal type allows for easy lubrication and maintenance.
Industrial Uses of K36008XP0 Bearing
K36008XP0 Bearing is commonly used in industrial machinery where space is limited but high load capacity is needed, such as robotic arms and conveyor systems. Its thin-section design makes it ideal for applications requiring compact yet durable solutions.
In automation systems, K36008XP0 Bearing provides smooth rotation for components like rotary tables and indexing devices. The brass cage ensures quiet operation, which is essential in precision environments.
For medical imaging equipment, K36008XP0 Bearing’s chrome steel construction offers reliable performance under consistent loads. The open seal design allows for easy maintenance, extending the bearing’s service life in critical applications.
Where Is K36008XP0 Bearing Used?
You’ll often find K36008XP0 Bearing in aerospace applications, where its lightweight yet sturdy build handles radial and thrust loads efficiently. The metric sizing ensures compatibility with international machinery standards.
In automotive testing rigs, K36008XP0 Bearing supports high-speed rotations while maintaining accuracy. Its four-point contact design distributes loads evenly, reducing wear over time.
Built for Heavy-Duty Use: K36008XP0 Bearing
K36008XP0 Bearing excels in construction equipment like cranes, where its static moment rating handles uneven loads with ease. The chrome steel rings provide long-lasting durability in tough conditions.
For packaging machinery, K36008XP0 Bearing ensures precise movement in high-speed production lines. The lubricated design minimises friction, keeping operations running smoothly.
Automotive vs Aerospace: Applications of K36008XP0 Bearing
In automotive systems, K36008XP0 Bearing is often used in steering mechanisms, where its thin profile fits into tight spaces. The brass cage reduces vibration, enhancing driver comfort.
Aerospace applications benefit from K36008XP0 Bearing’s ability to handle both radial and thrust loads in flight control systems. Its lightweight construction doesn’t compromise on strength or reliability.
"*" indicates required fields

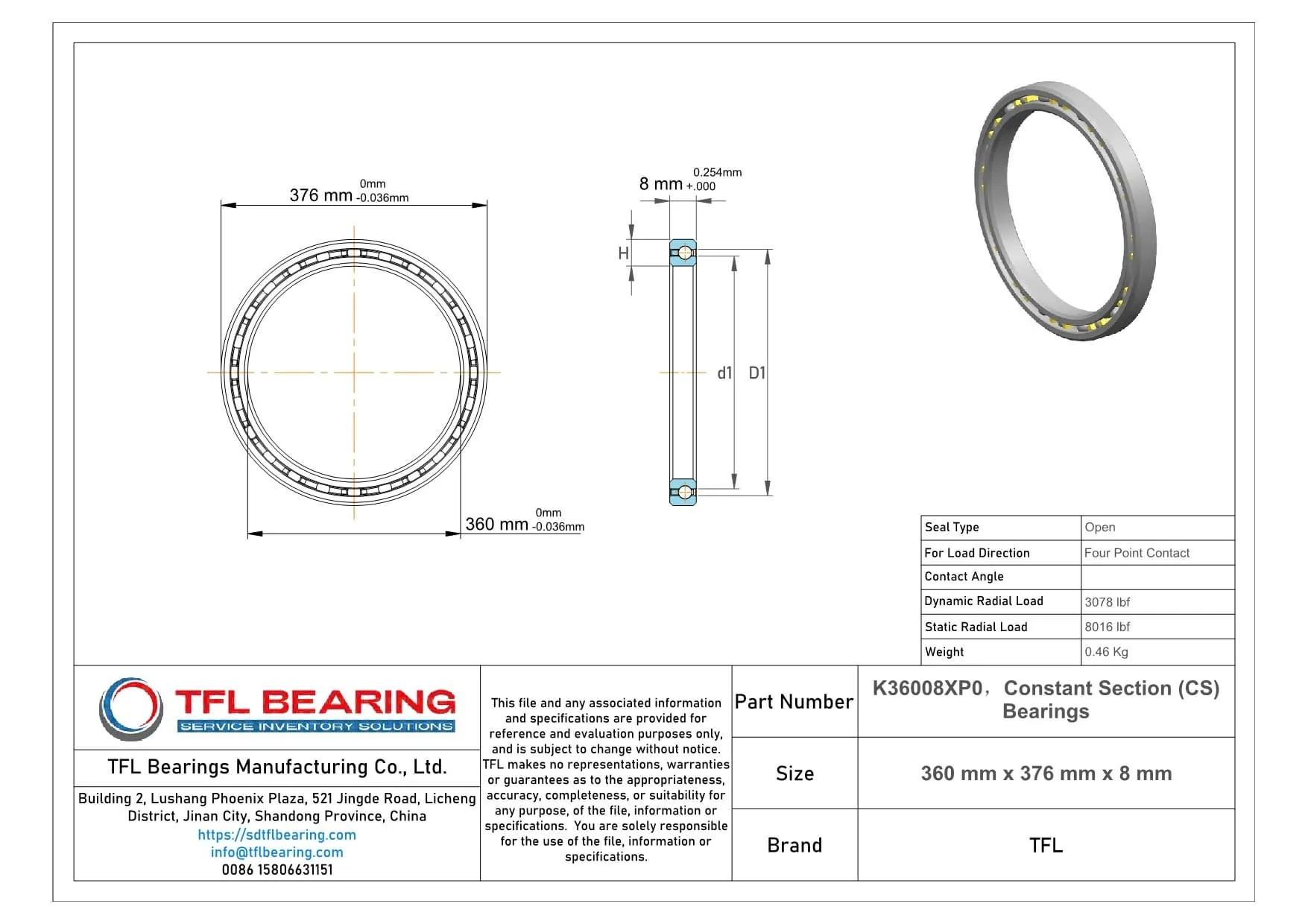

-Bearings-K36008XP0-Drawing.jpg)
