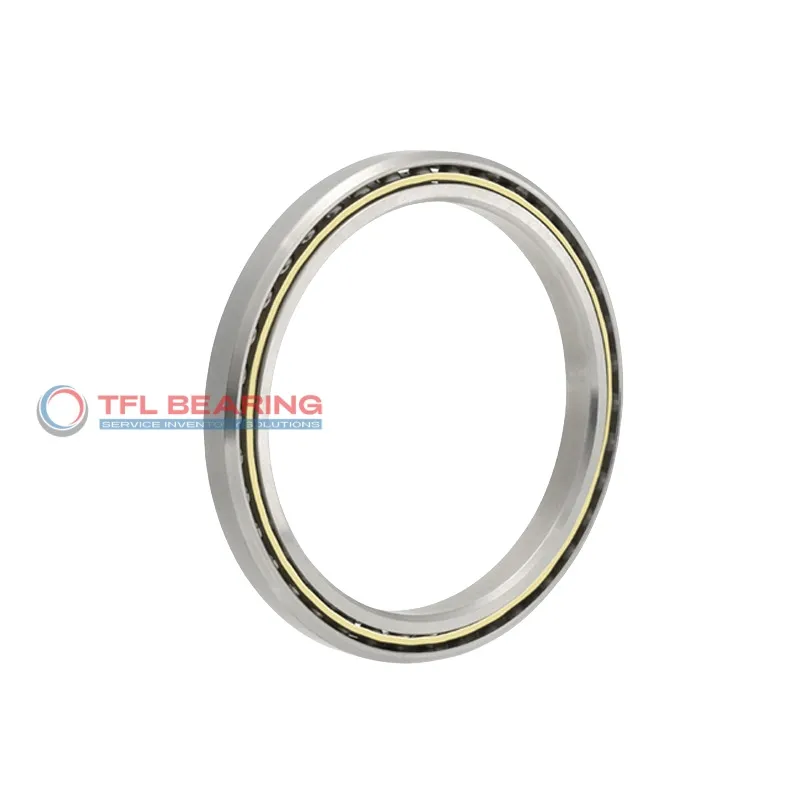

The K16020AR0 is a constant section ball bearing with a slim 20mm width, measuring 160mm in bore and 200mm in outer diameter. Made from chrome steel, it’s designed for angular contact loads and handles dynamic radial loads up to 5306 lbf.
Its single-row construction and open design make it easy to maintain, while the brass cage ensures smooth operation. The bearing works in temperatures from -30°C to 110°C, suitable for various industrial environments.
This model is interchangeable with KAYDON bearings, offering a reliable replacement option. Ideal for applications requiring precise angular contact, such as robotics or medical equipment.
Weighing 1.26kg, it’s lightweight yet sturdy, with ABEC-1 tolerance for consistent performance. Compliant with RoHS standards for safe use.
"*" indicates required fields
Why Choose K16020AR0 Bearing for Precision Tasks?
K16020AR0 Bearing features a 30° contact angle, optimising load distribution for angular contact applications.
Its chrome steel construction ensures durability and reliable performance under dynamic radial loads up to 5306 lbf.
The brass cage maintains ball alignment, reducing friction and extending operational life.
With ABEC-1 tolerance class, K16020AR0 Bearing delivers consistent precision in demanding conditions.
Designed for temperatures from -30°C to 110°C, it performs reliably in varied environments.
Its thin-section design saves space while handling static thrust loads up to 12392 lbf.
Key Fields for K16020AR0 Bearing
K16020AR0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery, where its angular contact design handles combined loads effectively. The thin section construction saves space without compromising performance.
In medical imaging devices, K16020AR0 Bearing’s chrome steel rings and brass cage ensure smooth, reliable operation under consistent use. Its ABEC-1 tolerance class makes it suitable for applications requiring moderate precision.
For aerospace applications, K16020AR0 Bearing’s lightweight design and high static load capacity make it ideal for control systems and actuators. The 30° contact angle provides stability during dynamic movements.
In packaging machinery, K16020AR0 Bearing’s open seal type allows for easy lubrication, extending service life in high-speed production lines. The metric sizing ensures compatibility with European and Asian equipment standards.
