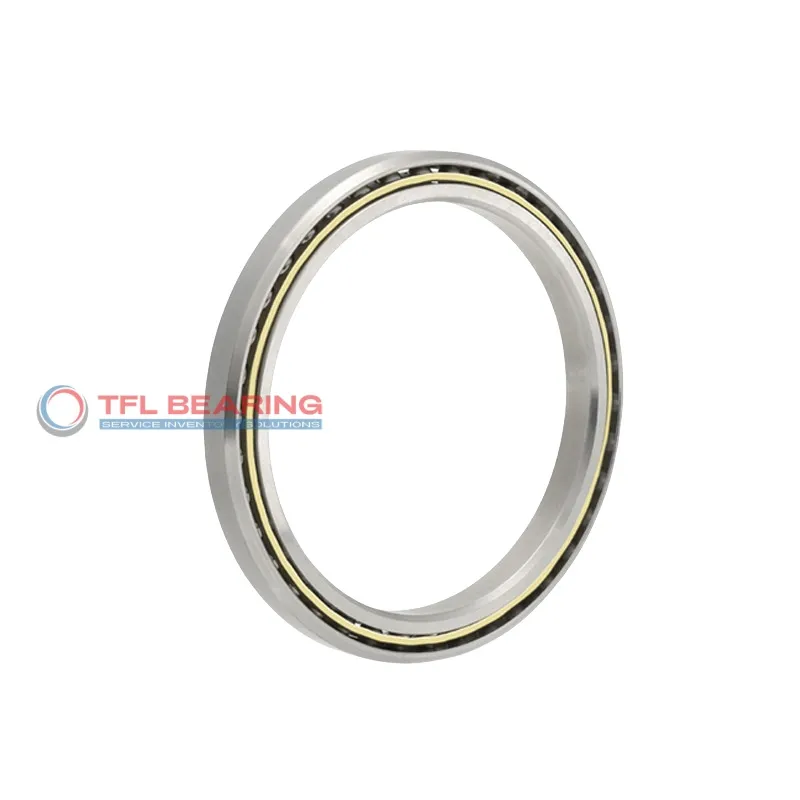

The K14008XP0 is a slim metric bearing with a compact 8mm width and dimensions of 140mm×156mm, made from durable chrome steel. It handles radial loads up to 1790 lbf and thrust loads up to 2802 lbf, suitable for moderate-speed applications.
Its brass cage ensures smooth operation, while the open design allows easy lubrication. The bearing performs well in temperatures from -30°C to 110°C, making it versatile for various environments.
This model is interchangeable with KAYDON bearings, offering a reliable replacement option. Ideal for applications like robotics or precision machinery where space is limited but performance is key.
Weighing just 0.19kg, it’s lightweight yet robust. Compliant with RoHS standards for safe and eco-friendly use.
"*" indicates required fields
How Is K14008XP0 Bearing Engineered for Reliability?
K14008XP0 Bearing features a four-point contact design, providing excellent load distribution for both radial and thrust loads.
Its chrome steel rings and balls ensure durability, while the brass cage maintains proper ball alignment.
With a static thrust load capacity of 8071 lbf, it handles demanding applications with ease.
The ABEC-1 tolerance class guarantees consistent performance in precision tasks.
Key Fields for K14008XP0 Bearing
K14008XP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin section design saves space without sacrificing load capacity. The brass cage ensures smooth rotation, even in high-speed applications.
What Makes K14008XP0 Bearing a Preferred Choice?
In aerospace applications, K14008XP0 Bearing handles both radial and thrust loads efficiently, making it suitable for control systems and actuators. Its chrome steel construction offers durability in demanding environments.
Built for Heavy-Duty Use: K14008XP0 Bearing
For medical imaging devices, K14008XP0 Bearing provides reliable performance due to its precise tolerances and smooth operation. The open seal design allows for easy lubrication, extending service life in critical equipment.
Automotive vs Aerospace: Applications of K14008XP0 Bearing
In automotive steering systems, K14008XP0 Bearing supports smooth movement with its four-point contact design. Meanwhile, in aerospace, its lightweight profile and high load capacity make it ideal for flight control mechanisms.
"*" indicates required fields
Links

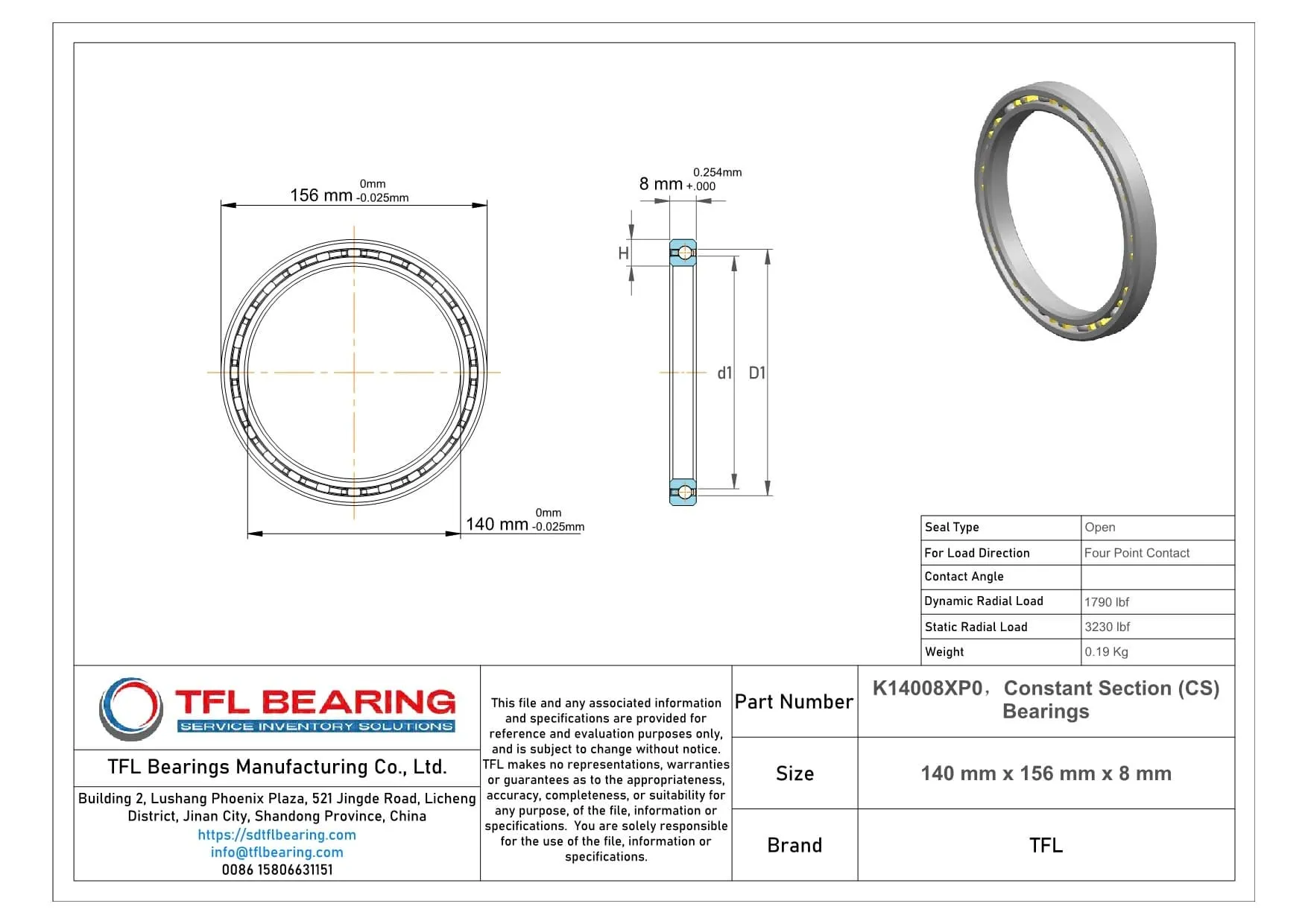

-Bearings-K14008XP0-Drawing.jpg)
