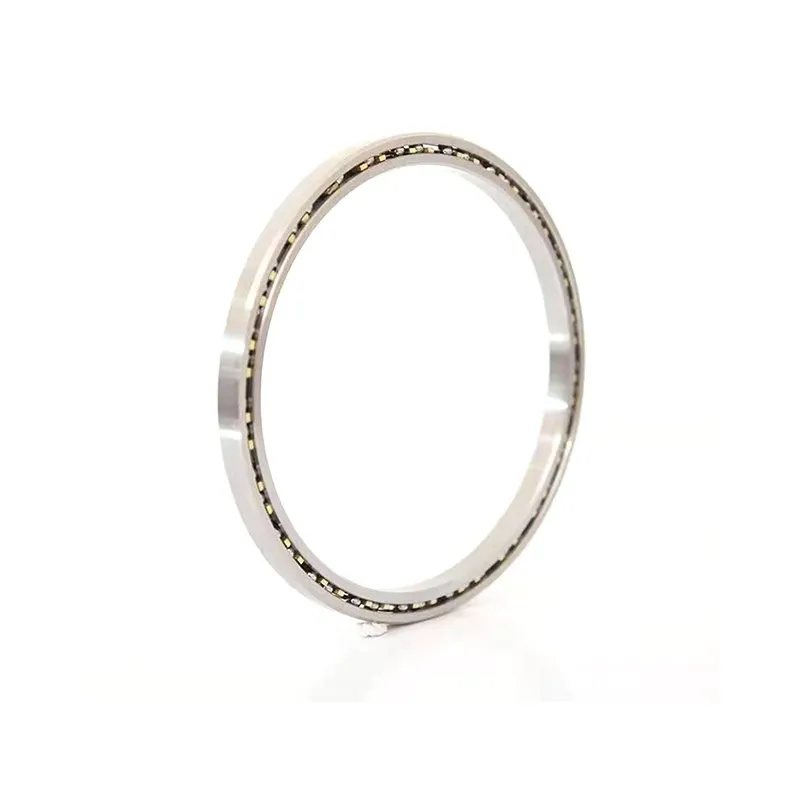

The K08008AR0 is a slim metric bearing with an 80mm bore and 96mm outer diameter, crafted from durable chrome steel. Its compact 8mm width makes it ideal for space-sensitive applications while handling radial loads up to 1036 lbf.
Designed for angular contact, this single-row bearing features a 30° contact angle for smooth operation. The brass cage enhances durability, and it performs reliably in temperatures from -30°C to 110°C.
Its open design allows easy lubrication, and the ABEC-1 tolerance ensures consistent performance. This model is interchangeable with KAYDON bearings, offering flexibility for replacements.
Weighing just 0.12kg, it’s lightweight yet robust. Suitable for precision machinery or robotics where slim profiles and reliable angular load handling are needed. Compliant with RoHS standards for safe use.
"*" indicates required fields
Performance Features of K08008AR0 Bearing
K08008AR0 Bearing is designed with a 30° contact angle, optimising load distribution for angular contact applications.
Its chrome steel construction ensures durability and resistance to wear in demanding conditions.
The brass cage maintains ball alignment, reducing friction and extending operational life.
With a dynamic radial load capacity of 1036 lbf, it handles moderate loads efficiently.
K08008AR0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its open design allows for easy lubrication, ensuring consistent performance over time.
Practical Applications of K08008AR0 Bearing
K08008AR0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its slim design saves space without sacrificing performance. The open seal type allows for easy lubrication, extending its service life in demanding conditions.
In automotive applications, K08008AR0 Bearing fits well in steering systems and electric motors, thanks to its angular contact design that handles both radial and axial loads smoothly. Its metric sizing ensures compatibility with a variety of vehicle designs.
For medical devices like CT scanners, K08008AR0 Bearing’s chrome steel construction offers reliable performance in high-precision environments. The brass cage adds durability, making it suitable for continuous operation.
Where Is K08008AR0 Bearing Used?
You’ll often find K08008AR0 Bearing in 3D printers, where its thin section design helps maintain accuracy during rapid movements. The ABEC-1 tolerance ensures consistent performance for detailed prints.
In household appliances like high-end blenders, K08008AR0 Bearing provides smooth operation at various speeds. Its temperature range makes it reliable even during prolonged use.
